Home > Products > Hydraulic Quick Couplings > Quick and Dry Disconnect Couplings Staubli Fluid Connectors Non-spill Flush Face Blind Mate Quick Couplings
Quick and Dry Disconnect Couplings Staubli Fluid Connectors Non-spill Flush Face Blind Mate Quick Couplings
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Pneumatic Blind Mate Quick Couplings Blind Mate Thermal Management Quick Couplings CGO Staubli
-
1/2 Inch High Pressure Screw Type Quick Couplings Thread to Connect High Pressure Quick Couplings
-
High-end Series Quick Connect Screw Couplings High Pressure Quick Release Coupler for Trailer Tractor
-
3/4 Inch Screw Type Quick Connect Coupling Screw to Connect Couplings for High Pressure Applications
-
1 Inch High Pressure Screw Type Coupling Male Screw Type Quick Disconnect Couplings for Industrial Vehicles
-
1-1/4 Inch High Pressure Screw Coupling Thread Locked Hydraulic Quick Coupling for Heavy Duty Vehicle
Product Description
Product Description

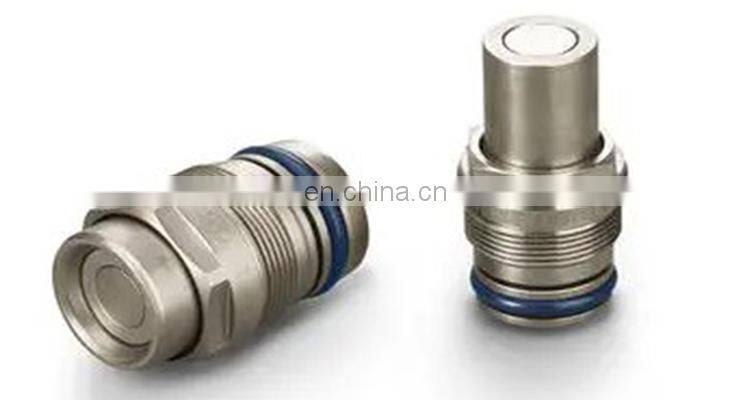

Free Fit CGO series Non-spill flush face blind mate quick couplings, it has three main advantages:
First, Non-spill flush faces to guarantee the integrity of the fluids;
Second, Appropriate sealing solutions, a wide choice of elastomers enables the CGO ranges to be compatible with the majority of fluids and to conver a wide range of temperatures;
Third, Non drip to ensure cleanliness and safety of installations and operators, On disconnection the circuits close automatically thanks to the double shut-off of CGO couplings: no contamination of the environment from fluid loss, especially suitable for electrical and high voltage environments.

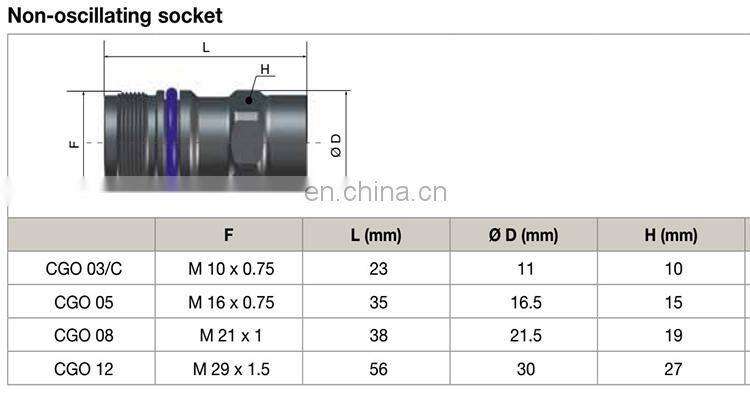

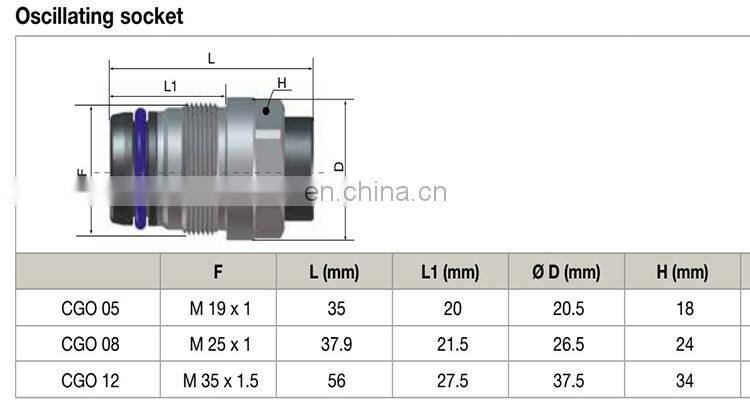

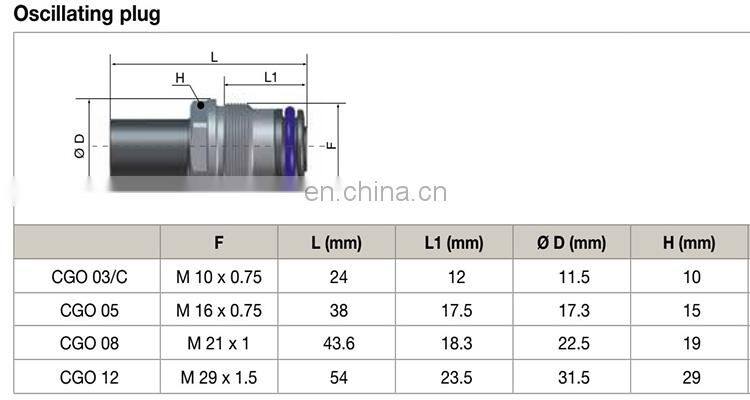

Specifications
Valve style | Flush-faced poppet |
Locking | Blind plug |
Material | Aluminium alloy and stainless steel |
Size | 1/8 |

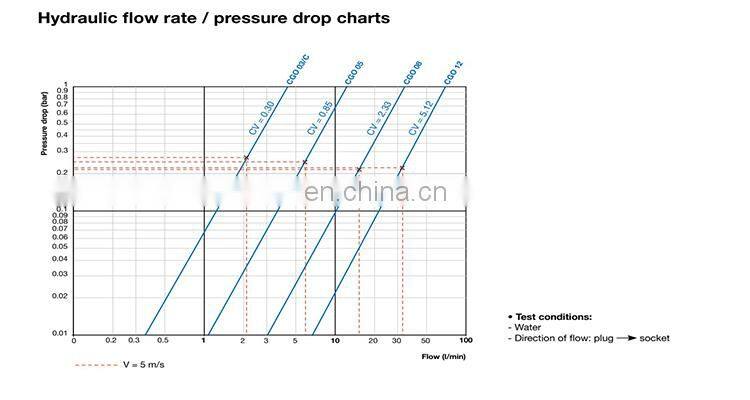

Rated flow | 2.5 L/Min |
Max working pressure | 1.6 Mpa |
Interchange | STAUBLI CGO series |

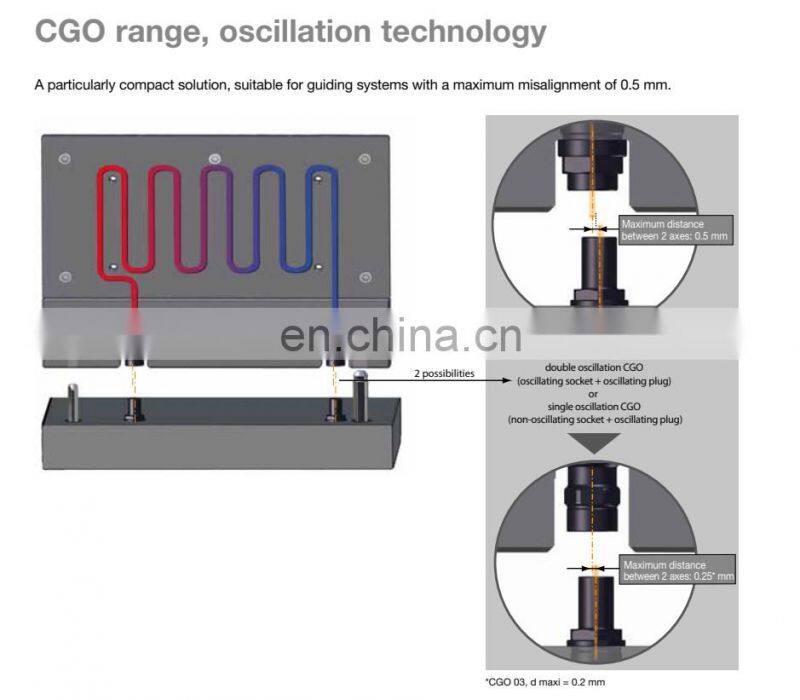

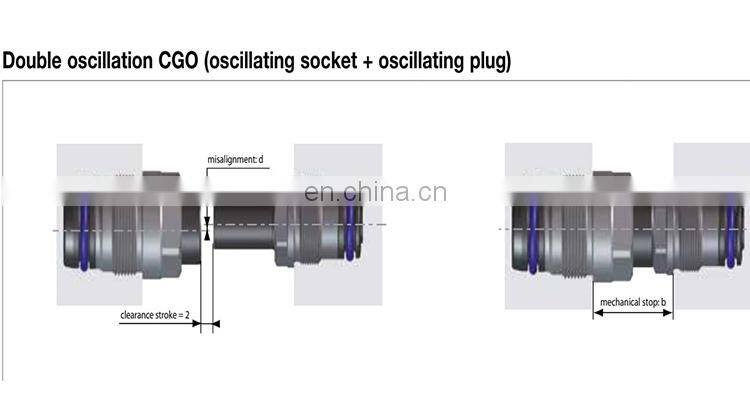

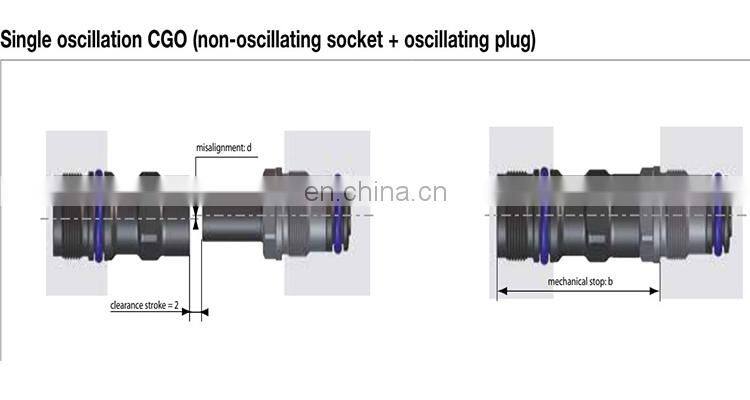

How to install
Application
Why Choose Us
Company Profile
Factory
Workshop
Manufacturing equipment
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
