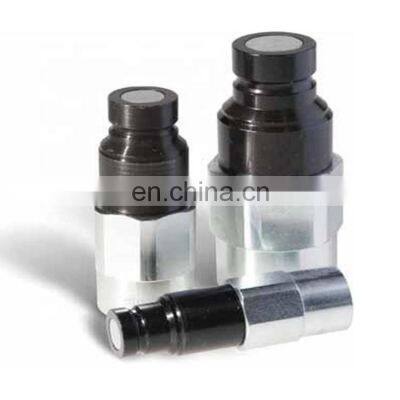

1'' Flat Face Thread Locked Type Hydraulic Quick Coupling for Offshore Drilling Platform
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
40Mpa Flat Face Quick Connect Hydraulic Coupler 1-1/4'' Thread Locked Type Hydraulic Quick Coupler
-
35Mpa Flat Face Quick Release Couplings 1-1/2'' Thread Locked Type Hydraulic Quick Coupler
-
1/4 Inch Quick Fitting Joints Flush Face Type Quick Connect Couplings for Mold Cooling
-
Flat Face Type Quick Mold Coupling Flush-faced Type Quick Mold Coupling for High-speed Train
-
90 Degree Angled Stainless Steel Cooling Quick Coupling Mold Cooling Couplers for Mold Cooling
-
Mold Cooling Part Quick Coupler Water Quick Coupling Injection Mold Cooling Fitting
Product Description
Product Description

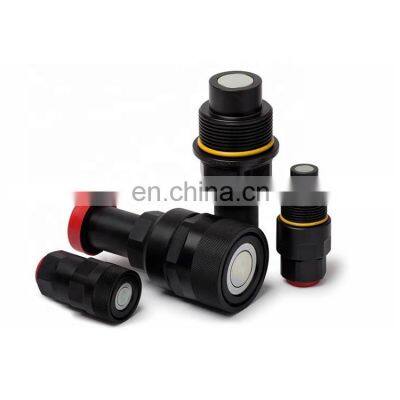

The VEP Series is a popular solution for hydraulic circuit applications subject to high pressure impulses and circuits which experience high residual or trapped pressure in a line. Thread-to-connect design eliminates premature wear or brinelling, a patented internal valve allows connection/disconnection with high residual pressures, and the flat face design avoids loss of hydraulic fluid and contamination into the circuit. A yellow o-ring indicator makes the VEP series even easier to work with.
Specifications
Body size(inch) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | ||||
Rated pressure(Mpa) | 50 | 50 | 50 | 40 | 35 | ||||
Rated flow(L/min) | 50 | 90 | 125 | 185 | 370 | ||||
Temperature range(polyurethane) | -25 ℃ to +125 ℃ | ||||||||
FEATURES
1.Size range: 1/2” thru 1-1/2”
2. Port options: NPT, SAE, BSP, ORFS
3. Connect/disconnect up to 25 MPa/3625 psi residual pressure
4. Interchanges with STUCCHI VEP Series
5. Working pressure: 35-60 MPa/5075-8700 psi range
6. Eliminates brinelling, reduces leakage
7. Saves time changing tools
APPLICATIONS
1. All construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure
2. All large equipment needing junction points in circuit: cranes, drilling machines, oil field, well head drives, porta-power
3. Excavators w/ auxiliary line for attachments: thumbs, grapples, hammers, compactors/hopaks

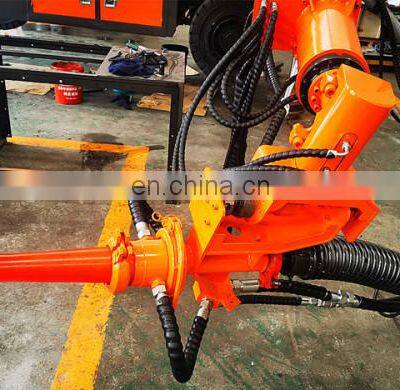

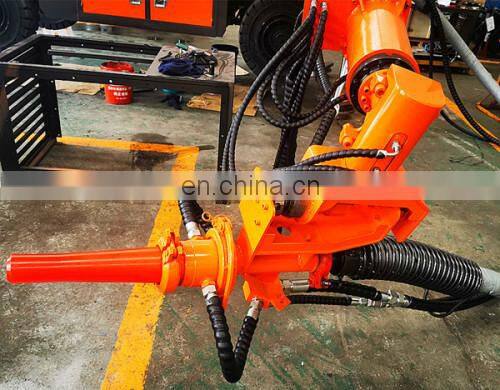

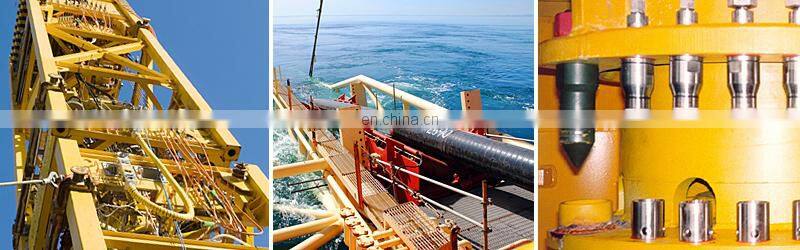

Application
Why Choose Us
Related Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
