1 Inch High Pressure Screw Type Coupling Male Screw Type Quick Disconnect Couplings for Industrial Vehicles

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

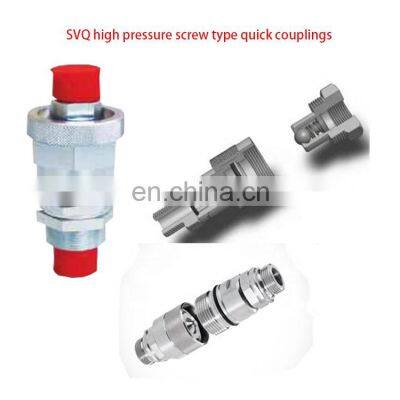

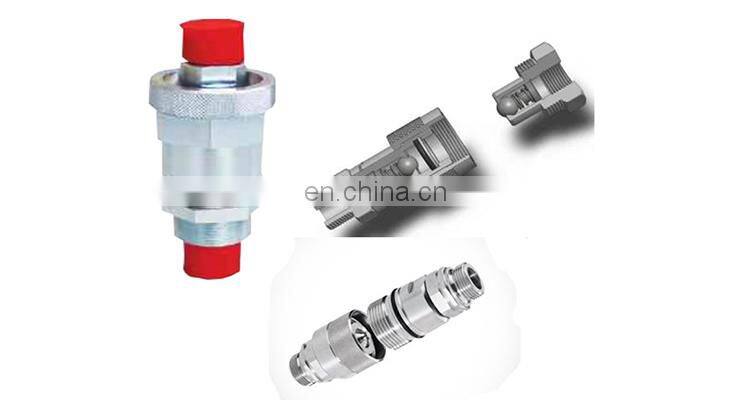

Free Fit High-end SVQ series Quick connect screw couplings, with shut-off facility at both ends, are designed for hostile working environments within construction machinery. The socket and plug are connected firmly together by a hand nut with a special heavy-duty thread. The coupling is resistant to heavy pressure surges and high impulse conditions, such as those occurring in vehicle hydraulic applications. Sealing and disengagement is based on the same principle as for the screw couplings used for piping. It possesses a modified interior that enables it to connect under pressure.

Specifications

Features:

1. Heavy-duty design as standard.

2. O-ring and PTFE back-up rind to withstand flow surges.

3. Employs threaded sleeve locking mechanism, mates with matching wale shrewd on the nipple.

4. The flush face valve keeps air inclusion and spillage to a minium.

5. Connect with pressure up to 5Mpa is possible.

Interchange:

HANSA RS Series/STAUFF SVQ Series

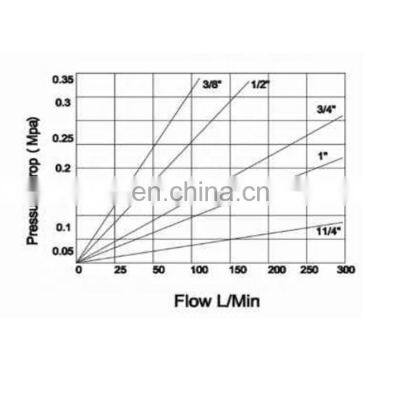

Body size (Inch)	3/8	1/2	3/4	1	1-1/4
Rated pressure (Mpa)	42	42	35	35	35
Rated flow (L/Min)	38	65	180	270	540
Temperature range (NBR)	-25℃ to +125℃

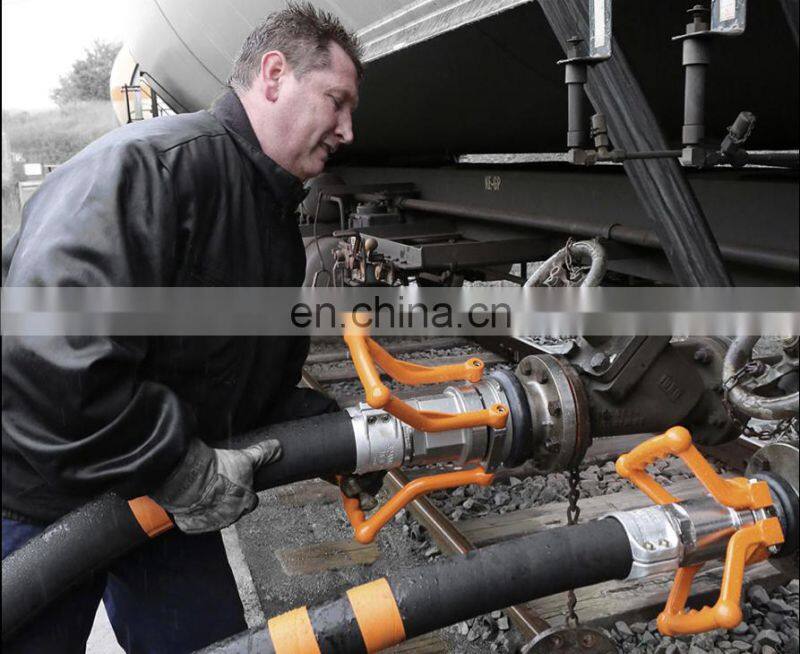

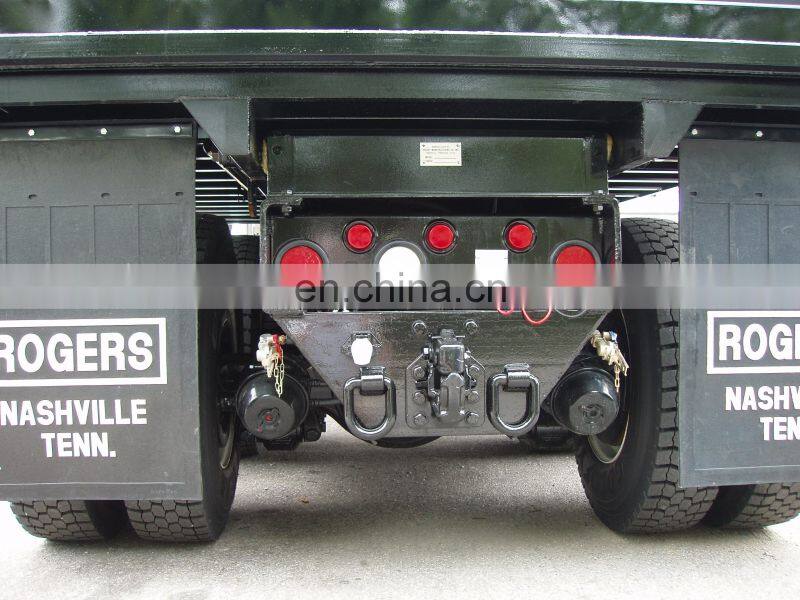

Application

Related Products

Why Choose Us

Company Profile

Factory

Workshop

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.

We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.

Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
