Product Description
Product Description
Free Fit Rectus 204/206 series is a non-relief type quick coupling system with a nominal diameter of 4mm for pneumatic and fluid transfer systems. It can be used in sensitive environment applications and can withstand pressures up to 15 bar. Currently available materials: brass or stainless steel .

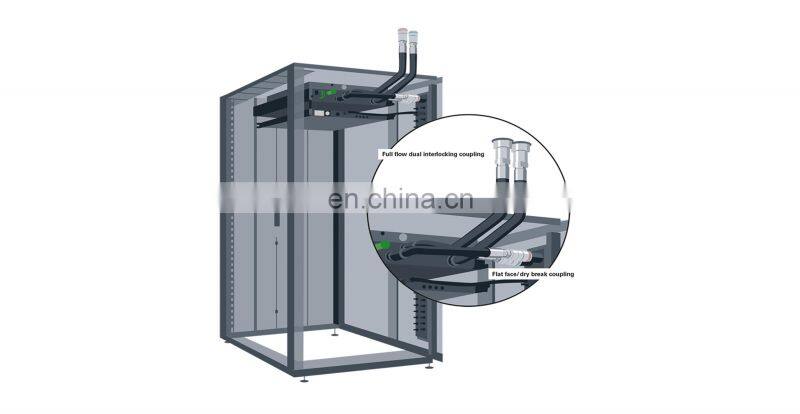

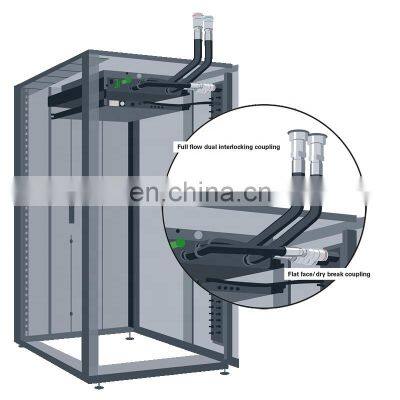

Free Fit's floodless quick-change systems are used in sensitive environment applications such as analytical technology, water cooling systems, rail transit systems and harsh media applications.
This series of quick-change connection systems can be operated with one hand, and the unique design guarantees extremely low overflow and minimum dead space. The unique design of this fitting ensures absolutely no air intrusion into the system when connected, and virtually no liquid remaining on the surface of the spool when disconnected.
Specifications
Valve style | Flush-faced poppet |
Locking | Ball Locking |
Material | Brass and stainless steel |
Size | 1/4'' and 3/8'' |

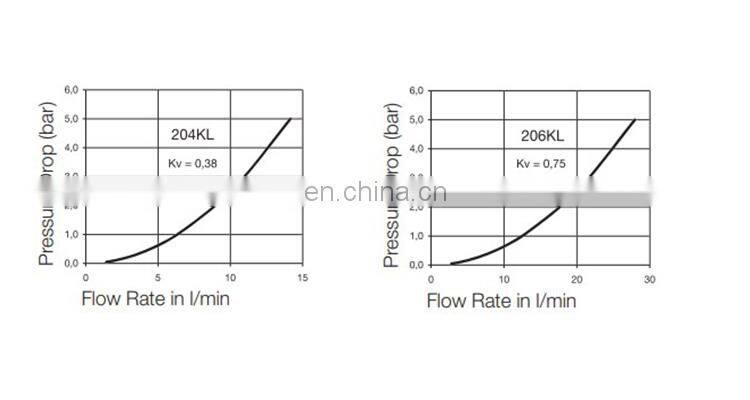

Rated flow | 12-30 L/Min |
Max working pressure | 1.5 Mpa |
Interchange | Rectus 204 206 series |
Application
Why Choose Us
Related Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
