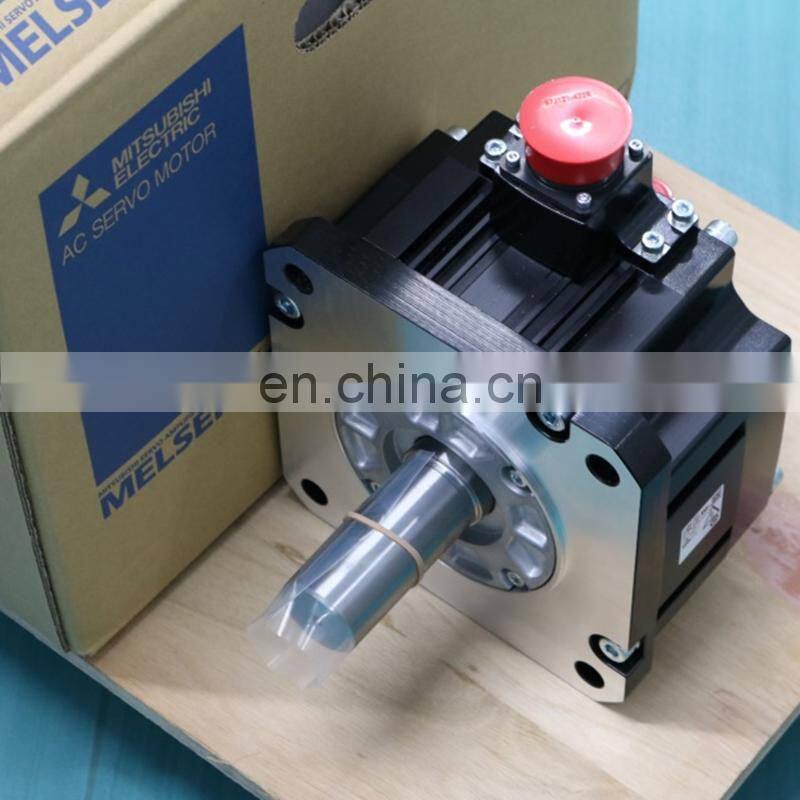

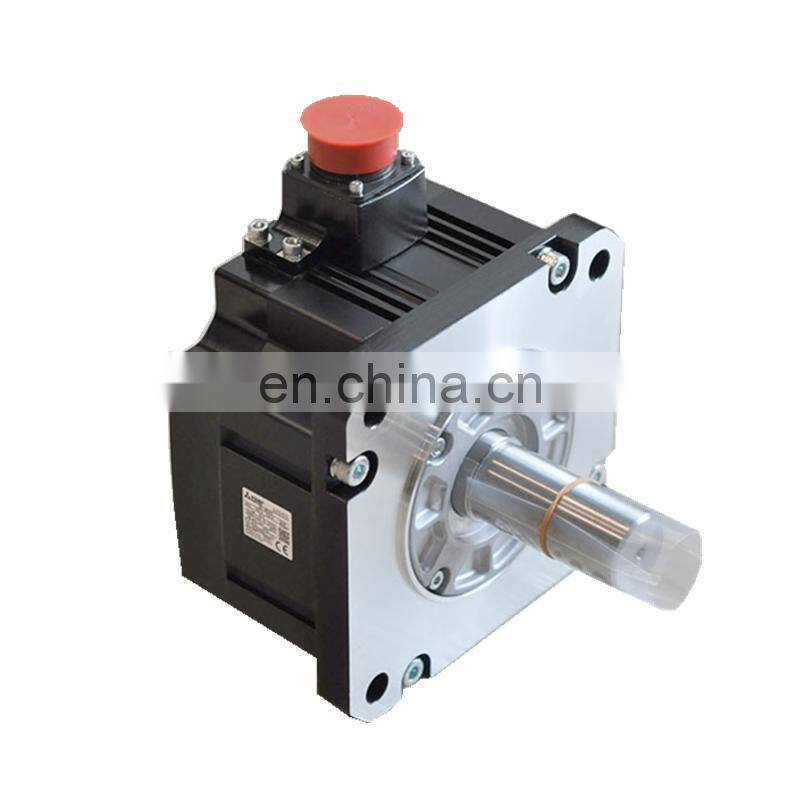

HG-SR202 Mitsubishi Motors / Japan Servomotors / 2kw Servo Motor

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

MR-J4 Servo motor

With a capacity range of 50W to 7kW (200V only), both the amplifier and motor size is reduced. We added a high resolution encoder of 4 million pulse/rev, with a speed frequency response of 2500Hz. Additional fetures include advanced one-touch auto tuning and advanced vibration suppression control II functions. The MR-J4 motors ahve the same flance size as J3 notors with the lenght of the motor bing the same or smaller than the J3.The same cables for power, encoder and brake can be used for the MR-J3 and MR-J4. MR-J4 Series has four models: MR-J4A (analog/pulse train),MR-J4B, (SSCNET III/H), MR-J4W2B (Dual axis amplifier with SSCNET III/H) and ME-J4W3B (Three axis in one amplifier with SSCNET III/H). In addition, MR-J4 has three motor models available: HG-KR similar to HF-KP, HG-MR similar to HF-MP, and HG-SR similar to HF-SP Series. M-Size software is used to size HG Series motors and setup is made easy using MR-Configurator.

PRODUCT SPECIFICATIONS

Servo Motor Model	HG-SR202
Power Supply Capacity (kVA)	3.5
Continuous Running Duty	Rated Output (W)	2 KW
Continuous Running Duty		Rated Torque (N•m)	9.5
Maximum Torque (N•m)	28.6
Rated Speed (r/min)	2000
Maximum Speed (r/min)	3000
Permissible Instantaneous Speed (r/min)	3450
Power Rate Continuous Rated Torque	Standard (kW/s)	19.5
Power Rate Continuous Rated Torque		With Electromagnetic Brake (kW/s)	16.1
Rated Current (A)	9.6
Maximum Current (A)	31
Regenerative Braking Frequency	MR-J4- (times/min)	47
Regenerative Braking Frequency		MR-J4W_- (times/min)	-
Moment of inertia J (x10 -4 kg•m²)	Standard	46.8
Moment of inertia J (x10 -4 kg•m²)		With Electromagnetic Brake	56.5
Recommended Load/Motor Inertia Ratio (Note 1)	15 times or less
Speed/Position Detector	Absolute/incremental 22-bit encoder (resolution: 4194304 pulses/rev)
Oil Seal	None (Servo Motors with oil seal are available. (HG-KR_J))
Insulation Class	130 (B)
Structure	Totally enclosed, natural cooling (IP rating: IP65) (Note 2)
Environment	Ambient Temperature	0°C to 40°C (non-freezing), storage: -15°C to 70°C (non-freezing)
		Ambient Humidity	80% RH maximum (non-condensing), storage: 90% RH maximum (non-condensing)
		Atmosphere	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
		Elevation / Vibration	1000 m or less above sea level; X: 49 m/s² Y: 49 m/s²
Vibration Rank	V10
Permissible Load for the Shaft	L (mm)	79
		Radial (N)	2058
		Thrust (N)	980

Packing & Delivery

Packing Details : 1pcs/carton

Delivery Details : 1-2 days after order confrimed
