Home > Products > day old chick transported truck > ISUZU brand 700P series day old chick transported truck for 40,000 day old chicks broilers transportation for hatcheries
ISUZU brand 700P series day old chick transported truck for 40,000 day old chicks broilers transportation for hatcheries
- 20 Piece / Pieces per Month
- Shanghai, Qingdao, Tianjin, Lianyungang
- T/T
- 25 days
- Factory sale good price JAC brand diesel day old chick transported truck for sale
- Dongfeng Tianjin Euro Ⅴwater tanker truck with mist cannon for dust suppression for sale
- Dongfeng 8cbm water spraying truck with mist cannon for sale
- high quality Dongfeng 10,000Liters-15,000Liters water tanker truck for sale
- ISUZU 2T loading capacity refrigerated truck for meat/milk/fish/frozen chicken reefer box van type freezer Vaccine Transporter for sale
- HOT SALE! ISUZU brand 700P 5T frozen food transported vehicle for sale
Product Details
Brand Name: | ISUZU | Condition: | New | Transmission Type: | Manual |
Temperature Range: | 0 ℃~-15℃ | Place of Origin: | China | Gross Vehicle Weight: | 10550 |
Fuel Type: | Diesel | Emission Standard: | Euro 4 | Dimensions (L x W x H) (mm): | 8970*2260*3310 |
Model: | CLW5110XCQQ6 | Horsepower: | 150 - 250hp | Box Dimensions (L x W x H) (mm): | 6860*2100*2000 |
Product Description
ISUZU brand 700P series day old chick transported truck, adotps high quality 700P single row reserible driver cab with power steering and air conditioner, ISUZU MLD 6 speed gearbox, 5200mm wheelbase, 4HK1-TCG61 Euro 6 190hp diesel engine, 4tons front axle/7tons rear axle, ABS, air cut braking, 235/75R17.5 tires,
The technical parameters of upper part for ISUZU as below
The cold van body dimension of ISUZU brand day old chicks transported carrier is 6860*2100*2000 (mm). The interior and exterior of the van box body with fiber reinforced plastics(FRP), and the middle insulation layers of 80mm thickness PU foam. There are sliding windows and waterproof blind-windows. The air will be from the van body floor ventilation

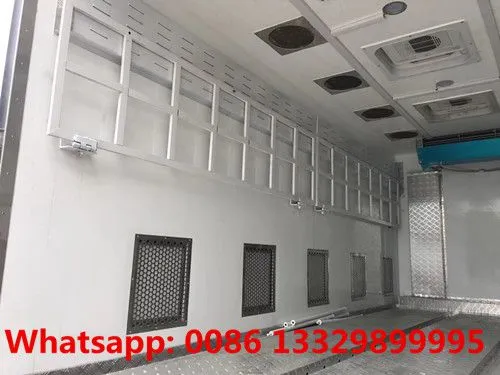

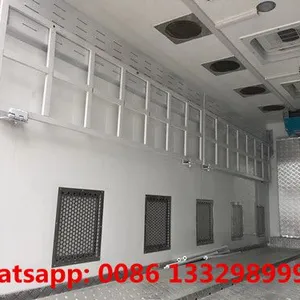

Left and right sides of the van body are with 12 sets 40*40 Mesh Plates for the cold air from the reefer. There are several 320*320 electronic ventilator fans mounted on the truck top and the rear door plate. Folding Shelves are for the two sides van body. Both Two sides of the van body with 5 blind-windows; while top mounted sky-window. Three lines of ventilator Air Ducts mounted on the van floor. The reefer choose high quality China made engine-powered refrigerator( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab). The heating system is selective.
Product name | ISUZU 700P LHD 4*2 day old chick transported truck(CLW5110XCQQ6) | ||
Overall dimension(L*W*H)(mm) | 8970*2260*3310 | Chick van box dimension(L*W*H)mm | 6860*2100*2000 (mm). |
Drive type | 4*2 LHD | Total mass | 10550kgs |
Curb mass | 5680kgs | Rated mass | 4675kgs |
Gearbox | ISUZU MLD 6 speed transmission, manual | Tyre specification | 8.25-16 nylon tires |
Power steering | Yes | Front/rear axle | 4tons/7tons |
Oil braking | Yes | Driver cab | Isuzu 700P single row driver cab with air conditioner |
Engine | 4HK1-TCG61 | Emission standard | Euro 6/Euro 5/Euro 4 |
Engine type | Isuzu 190hp diesel engine |
Main parameters of chick baby van box body as below
Performance and consumption | ||
Heating system | Watering system | Without, client choose to install |
Cooling system | One reefer | USA brand THERMO KING vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) |
Ventilation system | Air duct installed on the floor for air flow | Two/three line as the pictures show |
Blind windows | 6 sets of blind windows with sliding doors for the left and right van sides (as the pictures show), Windows: 6*2 = 12 windows | |
electronic ventilator fans | 6 sets of electronic ventilator fans on van top; 4 sets for the back door. Electronic fans: 6*2+4=16 fans | |
Sky-window | Top mounted sky window* 4 sets sky-windows | |
Dimension | ||
Chick van box body | Length | 6860mm |
Width | 2100mm | |
Height | 4675mm | |
Material | Exterior and interior | High quality with whole skeleton of the SANDWICH plate bonding process. Inner plate use high quality fiberglass and exterior plate with Fiberglass Reinforced Plastic (FRP) |
Middle insulation layer | Middle insulation layer with high quality 80mm PU foam sheets. | |
Chicks nos. | About 40,000chicks |
If you're interested in our day old chicks transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

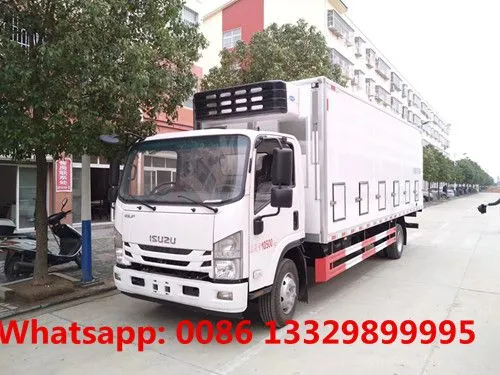

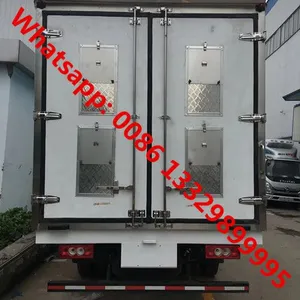

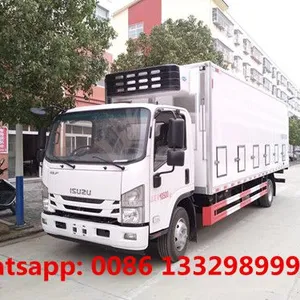

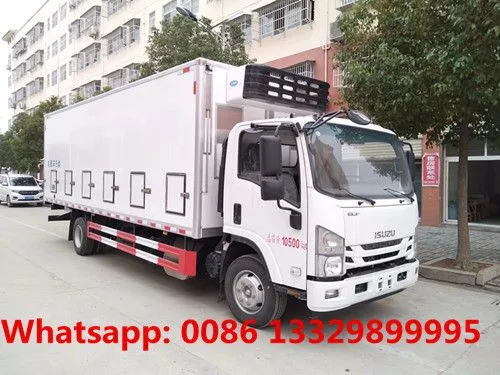

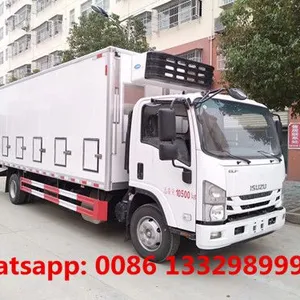

More pictures of ISUZU brand 4*2 LHD day old chicks transported truck is as below.
