Customized ISUZU Brand 700P 5.4m length day old chicks transported truck for sale,
Customized ISUZU brand 190hp diesel day old chick transported vehicle, adopts ISUZU 700P 4*2 LHD single row driver cab, ISUZU MLD 6 speed manual gearbox, 4tons front axle/7tons rear axle, 35/75R17.5 rail tires, original air conditioner and power steering, air cut braking, etc.
The dimension(L*W*H) of ISUZU 700P 190hp Euro 5 diesel day old chicks transported truck is 5200×2200×2100(mm), while the overall dimension(L*W*H) of ISUZU 700P day old chicks truck is 7480*2380*3370(mm). Client choose to install USA CARRIER/THERMO KING refrigerated reefer unit (the lowest temperature is up to -15 degree.)
Details of ISUZU 700P day old chicks transported truck is as below.
1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam.
2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.

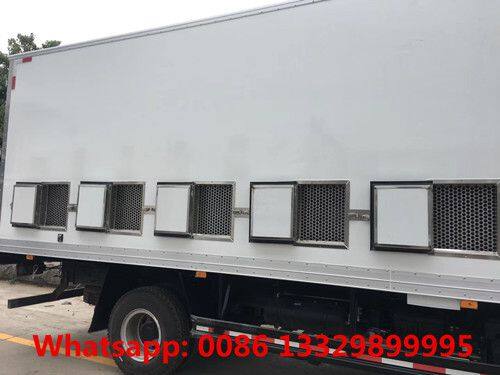

3,5 sets of blind windows with sliding doors for the left and right van sides

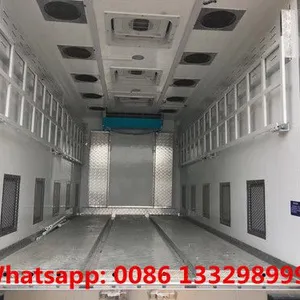

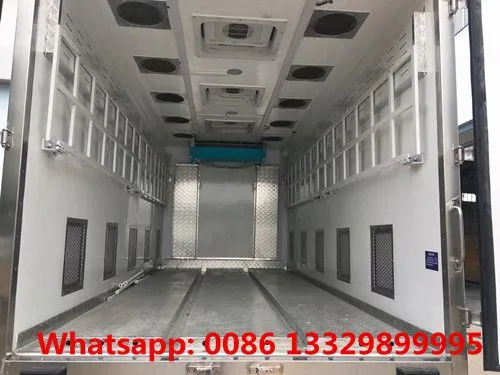

4, each 2 sets of electronic ventilator fans for the front and rear plate; each 4 sets of electronic ventilator fans for the van top
5, Top mounted sky window* 4 sets
6, two line of air duct installed on the floor air flow
7, China made high quality USA CARRIER/THERMO KING vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -15 degree, adjusted at the driver cab)
8, two line of cold air ducts on both van body.
If you're interested in our day old chick transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
More pictures of ISUZU day old chicks transported truck is as below.

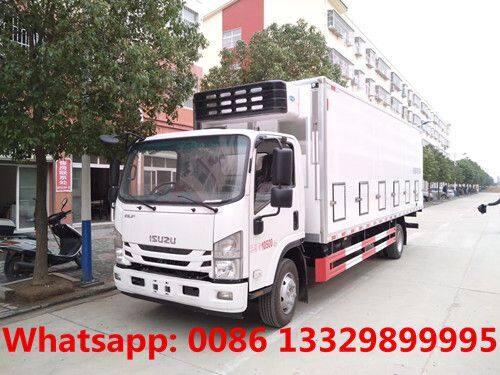

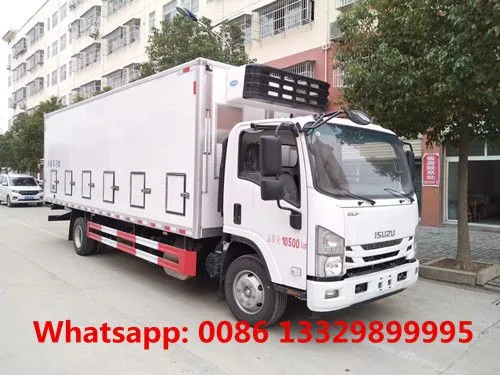

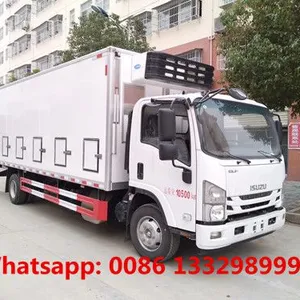

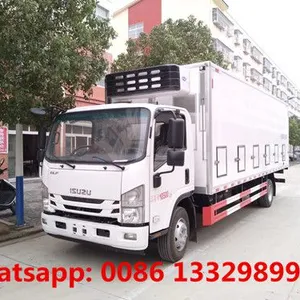

ISUZU brand 4*2 LHD 700P day old chicks transported truck for sale
Main technical parameters of ISUZU Brand 700P day old chicks transported truck is as below.
Overview | |
Product name |
Isuzu Brand 4*2 LHD day old chick transported truck(5tons) |
Dimension(L*W*H)(mm) |
7480*2380*3370 |
Total mass(kgs) |
10000 |
Rated payload(kgs) |
4605 |
Kerb weight(kgs) |
5200 |
Driver cab seats |
3(driver included) |
Approach/departure angle(°) |
17/13 |
The parameters of chassis | |
Truck chassis manufacturer |
ISUZU |
Driving type |
4*2 LHD(Left hand drive) |
Wheelbase(mm) |
4175 |
Gearbox |
ISUZU MLD 6speed manual gearbox |
Front/rear track(mm) |
1680/1650 |
Tyre specification |
235/75R17.5 |
Front/rear suspension(mm) |
1110/2195 |
Leaf Spring number |
8/10+6 |
Driver cab A/C |
Equipped |
The parameters of engine | |
Engine manufactuer/model |
ISUZU 4HK1-TC51 |
Engine rated power |
141hp/96KW |
Fuel type |
Diesel/oil |
Displacement/capacity(ml) |
5193 |
Emission standard |
Euro 5 |
Cylinders |
4 cylinder in line, high-pressure common rail |
Max .torque |
5100N.m |
Velocity |
1600rpm |
The parameters of van body | |
Van box body dimension(L*W*H)(mm) |
5200×2200×2100 |
Material |
2.2mm external fiberglass, internal 2mm stainless steel, sandwish 80mm XPS |
Rubber sealing |
Equipped |
Van body skeleton rim |
Aluminum |
Doorframe and locks |
Stainless steel material |
Lighting |
LED lights |
Cooling system |
CARRIER reefer unit(model: C-500) |
Ventilations |

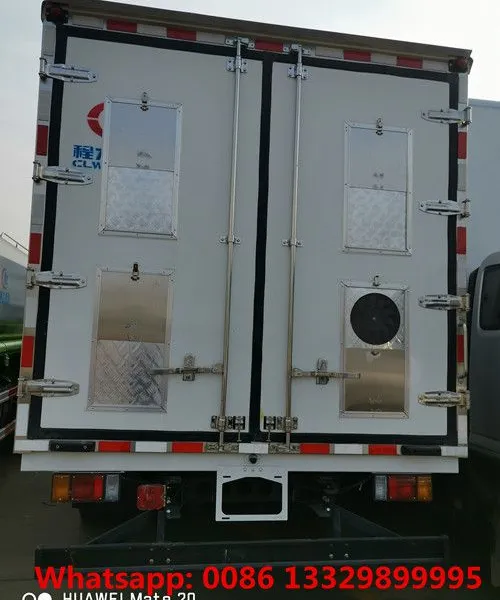

Both van body sides total with 5 windows(4*2), ceiling 4 sky windows, ceiling ventilations fans 8 pcs(4*2), rear door ventilations 4pcs, upper sides ventilation vent, floor ventilation vents |
Shelves |
Two sides and tiltable |
