Customized FOTON AUMARK 4*2 RHD Cummins engine 30,000 day old chicks broilers transported truck for sale
Chick special transporter, chicken transport truck, livestock and poultry transporter, chick transportation truck, chick transporter, duckling transporter, duckling transporter, chicken transporter, poultry transporter, poultry transporter transporter Special automotive products specially designed for the transportation of piglets, poultry, breeding pigs, finished pigs, cattle, sheep and other livestock and poultry, designed with natural ventilation system, heating system, air conditioning, water spray cooling system, hydraulic tail plate vertical lifting system, floor The entire layer of lifting system, automatic feeding system, temperature monitoring, internal monitoring system of the box and other high-quality, highly integrated automation control systems, modernize livestock and poultry transportation, ensure the environment for livestock and poultry transportation during transportation, improve survival rate, and facilitate loading and unloading Give livestock a mobile "home
Based on the chassis of the van, using high-quality FRP material, it has good corrosion resistance and aging resistance. The main features of chicken transporter (chick transporter) are rainproof, sun-proof, dust-proof, anti-theft, environmental protection, high transportation efficiency, etc. It also has the characteristics of ventilation, heat preservation and large loading capacity. It is mainly used in special breeding farms, an indispensable tool to improve the efficiency of breeding enterprises and reduce transportation costs. There is a ventilation device and a heating device in the cabin. There is a ventilating fan in the upper part of the cabin to allow ventilation and air intake to ensure that the chicks in the cabin have sufficient oxygen. There are small doors on the left and right sides of the box to ensure air circulation. The chicken transporter can be ventilated, heated, and ventilated to ensure that the chicks are full of oxygen. The bracket is customized according to the requirements of the user. The other top is closed and cannot be opened as a whole. There are devices such as ventilation holes. The temperature change caused by the air conditioner is less than 3%. The diversified configuration of the car has the functions of rainproof, anti-theft, and dust prevention of ordinary vans. Good ventilation and thermal insulation. It can meet the transportation needs of all poultry breeding enterprises in all regions, all weather, and all seasons. It solves the customer's worries, greatly reduces the loss rate of poultry caused by the transportation link, and plays a role in improving the economic benefits of breeding poultry breeding enterprises. It is an excellent choice for enterprises to reduce operating costs, improve transportation efficiency, and expand company publicity.
Chicken seedling transporter adopts international advanced refrigerated truck production technology. The inside and outside walls of the compartment are made of high-quality glass fiber reinforced plastic. The insulation material is 8cm thick imported polyurethane thermal insulation material. A new generation of chicken constant temperature transporter is manufactured. ; The bottom plate uses integral cast-in-situ FRP. The chicken transport vehicle manufactured with new technology and new technology has the characteristics of good thermal insulation performance, beautiful appearance, light overall weight, high strength, and no leakage. The carboard has good impact resistance, and has good corrosion resistance and aging resistance to the atmosphere, water and acids, alkalis, salts and other media.
After optimized design, the height of the floor of the compartment from the ground is greatly reduced, the effective volume of the compartment is increased, and the safety of the vehicle is higher. Optional ventilation grooves on the floor of the cabin facilitate air circulation throughout the vehicle and maintain a balanced temperature in the cabin. The refrigerating unit has well-known domestic and imported unit choices. The temperature and temperature can be 25 degrees. The unit has a simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and convenient installation and maintenance. The newly developed product can ensure the air circulation inside the car body and has functions of heating, cooling, ventilation, humidification, etc. The chicken car body adopts a heat insulation car body, the thickness of the car board is 80mm, and the inner and outer skins are made of fiberglass. Two air inlets with adjustable air intakes, and ventilation ducts are installed on the inside of the front panel and the floor of the cabin to ensure uniform air intake in the cabin; 80W exhaust fans and 700 × 600 (mm) ventilation windows are installed on the top panel; side panels There are five 300 × 300 (mm) ventilation windows in the lower part; a temperature indicator is installed in the cab to monitor the temperature in the cabin.
The refrigerator freezer unit we usually use are Thermo king, Carrier, Dongin, Hua Tai, Han
Xue,etc. The refrigerated temperature of refrigeration units are 5 degree Celsius
below zero, 10 degree Celsius below zero, 15 degree Celsius below zero, 18 degree Celsius below zero. You also can install heating refrigerator to make the temperature above zero in bitter winter.
Hot sale FOTON AUMARK day old chick transportation truck adopts FOTON RHD 4*2 original chassis, 3800mm wheelbase, 6 manual speed transmission, 8.25R16 tyres*6,FOTON AUMARK 1995mm width single row driver cab with power steering, 2.5ton front axle, 6tons rear axle, , F3.8S3141 Cummins 141hp Euro 3 diesel engine, etc.
2, FOTON AUMARK C RHD baby chick transported truck is with the overall dimension (L*W*H): 6995×2230×3100 (mm), chick van body dimension (L*W*H): 5100×1940×1860 (mm).
If you're interested in our day old chick transported truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.

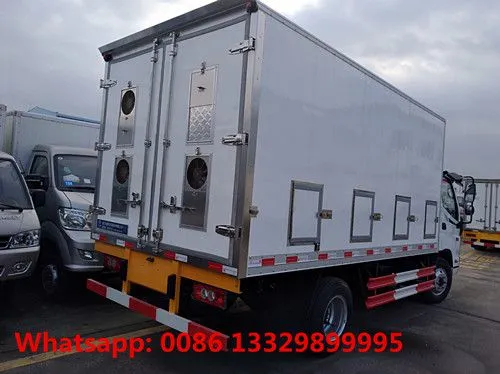

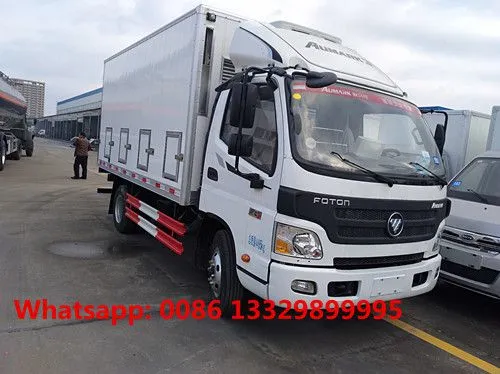

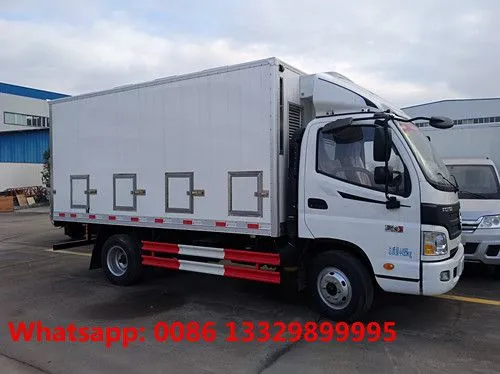

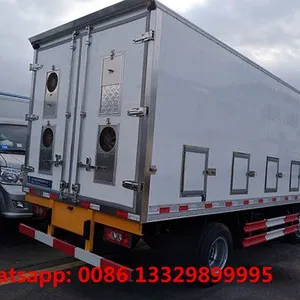

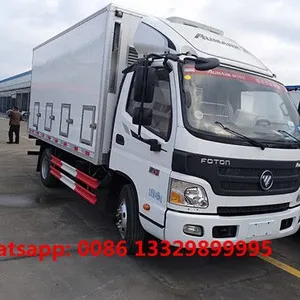

More pictures of FOTON AUMARK Cummins engine day old chick transported truck is as below.
Main parameters of FOTON AUMARK baby chick transported truck chassis CLW5101XLCB3
Product name |
Foton aumark LHD 4*2 day old chick transported truck |
||
Overall dimension(L*W*H)(mm) |
6995×2230×3100 |
Chick van box dimension(L*W*H)mm |
5100×1940×1860 (mm). |
Drive type |
4*2 LHD, RHD is selective |
Total mass |
8495 |
Gearbox |
6 speed gear box |
Tyre specification |
8.25R16 rail tyres *6 |
Power steering |
Yes |
Driver cab |
Foton aumark C RHD 1995mm single row driver cab |
Engine |
F3.8S3141 Cummins 141hp diesel engine |
Emission standard |
Euro 3 |
Main technical parameters of day old chick van body
Performance and consumption | |||
Heating system |
Watering system |
Without, client choose to install |
|
Cooling system |
One refrigerated reefer |
China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) |
|
Ventilation system |
Air duct installed on the floor for air flow |
Two/three lines |
|
Cold air ducts on the two sides of the van body |
Two cold air ducts for the refrigerated reefer |
||
Blind windows |
4 sets of blind windows for the left and right van sides (as the pictures show); 2 sets of blind windows for the front van plate. |
||
electronic ventilator fans |
1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 4 sets of electronic ventilator fans for the van top |
||
Sky-window |
Top mounted sky windows*2 Sky-windows: 2*1=2 |
||
Dimension | |||
Chick van box body |
Length |
5100mm |
|
Width |
1940mm |
||
Height |
1860mm |
||
Refrigerated van box |
Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; |
||
|
|||
