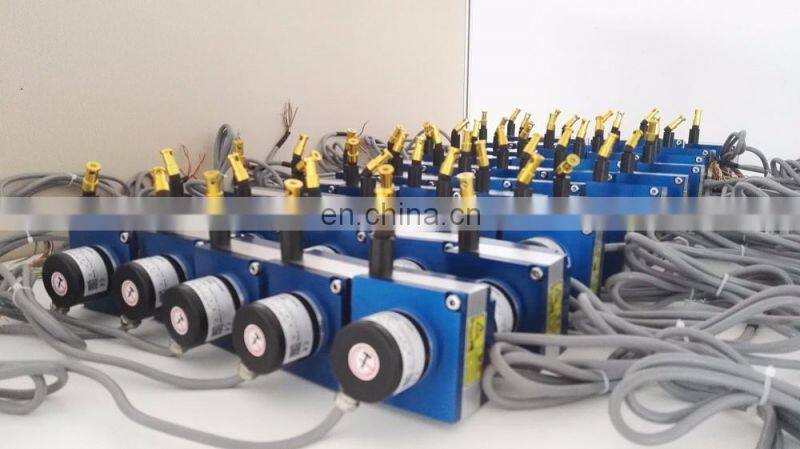

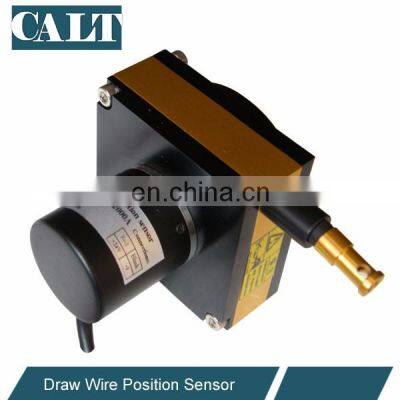

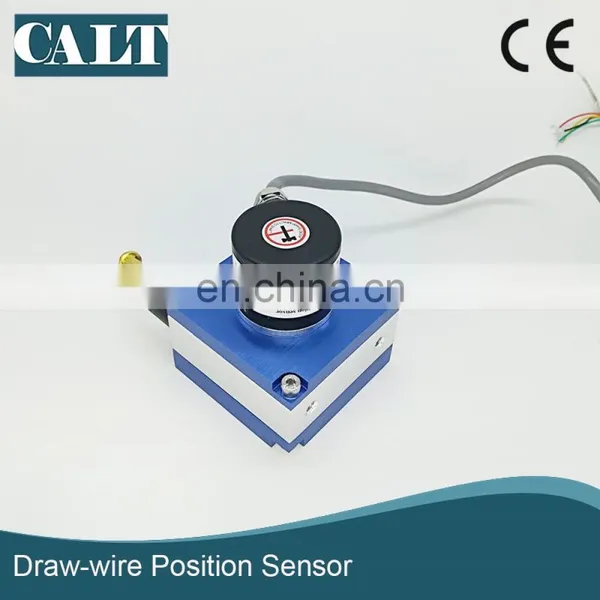

draw-wire position encoder 2000mm displacement measurement sensor
We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 30000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current,and Quadrature Encoder.
|
Resolution |
0.01,0.02,0.04,0.08 mm / plus |
Range |
0~2000mm |
|
Detection method |
Incremental encoder |
Accuracy |
+/-0.05%FS |
|
Current consumption |
≤60mA |
Operating Temperature |
-20°C~80°C |
|
Frequency response |
10K Hz to 50K Hz |
Operating Humidity |
30~85% No condensation |
|
Output signal |
AB phase, ABZ in The phase |
Supply voltage |
10-30V DC ,5V DC |
|
Phase difference |
A, B a difference of 90 degrees |
Cable |
1M |
|
Waveform up and down time |
2 ms |
Anti-shock |
10HZ to 1500HZ, 10G |
|
Starting torque |
<700g |
Impact resistance |
20G,11ms |
|
Circuit characteristics |
voltage, current, push-pull, long-line drive output, open collector |
rope specifications |
rope 0.6-1.2mm, rope maximum load: 16KG |
|
Degree of protection |
IP65/IP54 |
weight |
450g |
|
speed |
1m/s |
