Mini String Encoder 150mm 180mm 250mm 300mm 500mm Range 0-5kohm 0-10kohm Output Position Sensor

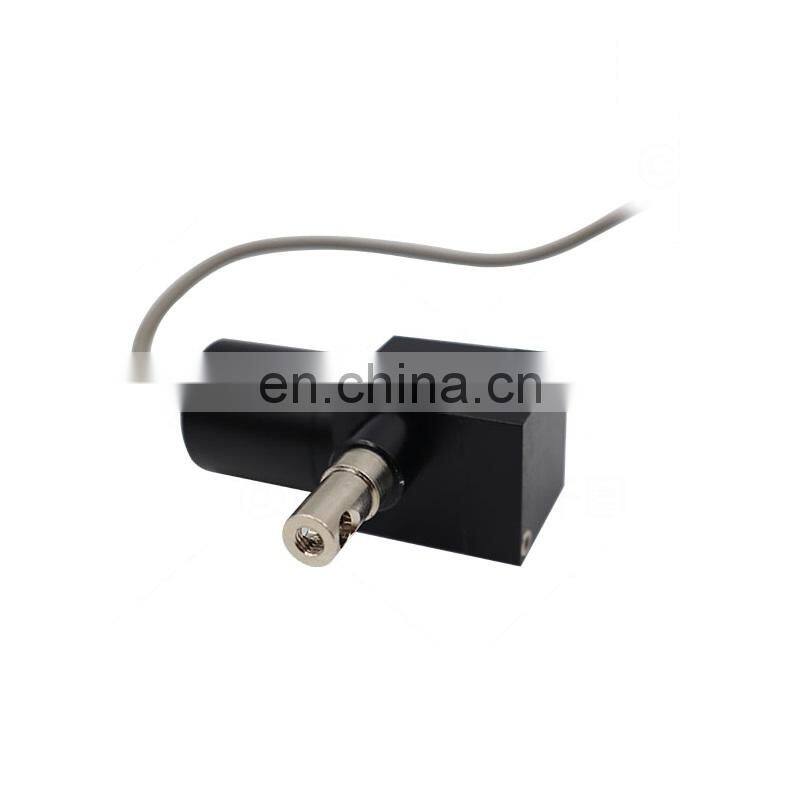

Mini String Encoder 150mm 180mm 250mm 300mm 500mm Range 0-5kohm 0-10kohm Output Position Sensor photo-1
Mini String Encoder 150mm 180mm 250mm 300mm 500mm Range 0-5kohm 0-10kohm Output Position Sensor photo-2

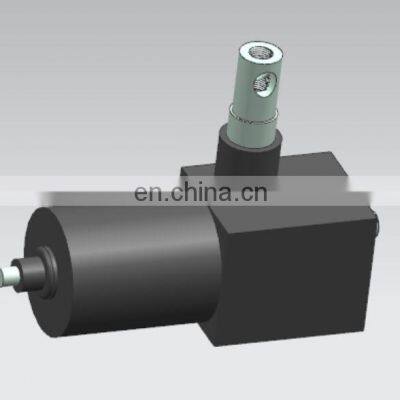

Mini String Encoder 150mm 180mm 250mm 300mm 500mm Range 0-5kohm 0-10kohm Output Position Sensor photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Product Description

Mini string encoder 150mm 180mm 250mm 300mm 500mm range 0-5kohm 0-10kohm output position sensor

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

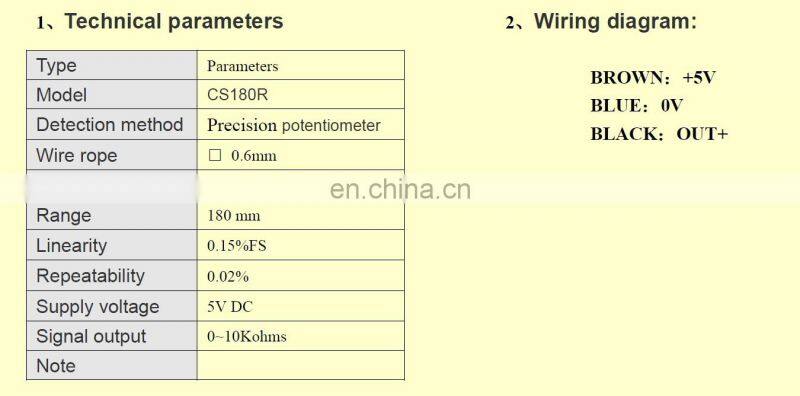

Specification
item
value
Model Number
CS180R
Type
String encoder
Place of Origin
China
Shanghai
Brand Name
CALT
Usage
Position sensor
Theory
Potentiometer
Output
0-5kohm 0-10kohm
Description
String encoder
Range
150mm 180mm 250mm 300mm 500mm
Supply Voltage
5Vdc
Output signal
0-5kohm 0-10kohm
About Us

COMPANY PROFILE

Shanghai QiYi Electrical & Mechanical Equipment Co., Ltd is a technology industrial enterprises integrating R & D, production, agency and sales. our company focus on the rotary encoders, displacement sensors and proximity sensor with CALT brand. We have many years of experience in supplying rotary encoders and sensors, which widely used in CNC machine, steel rolling machinery, linear guide systems, hydraulic systems, lifting machinery, turbine and other multiple industries. Located in Shanghai, we enjoy convenient air, water and land transportation. Currently, our company is exported to America, France, Mid-east, Africa and other more than 10 countries and regions.
