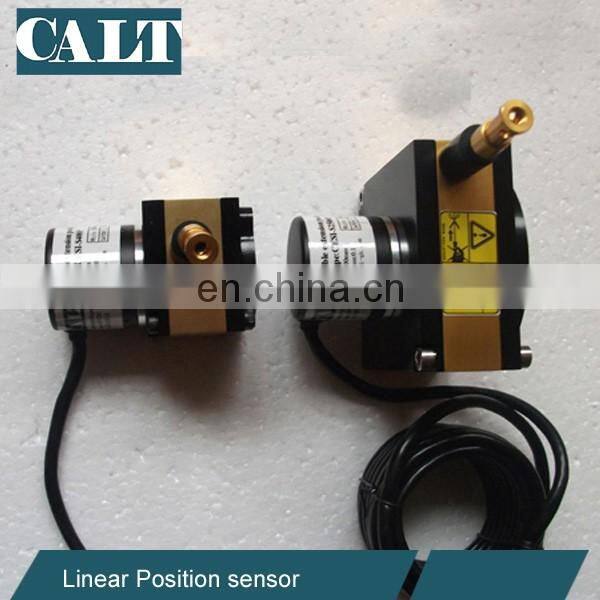

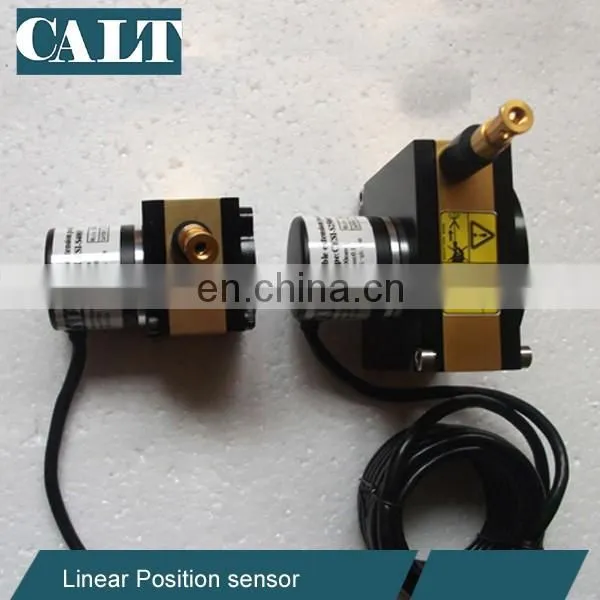

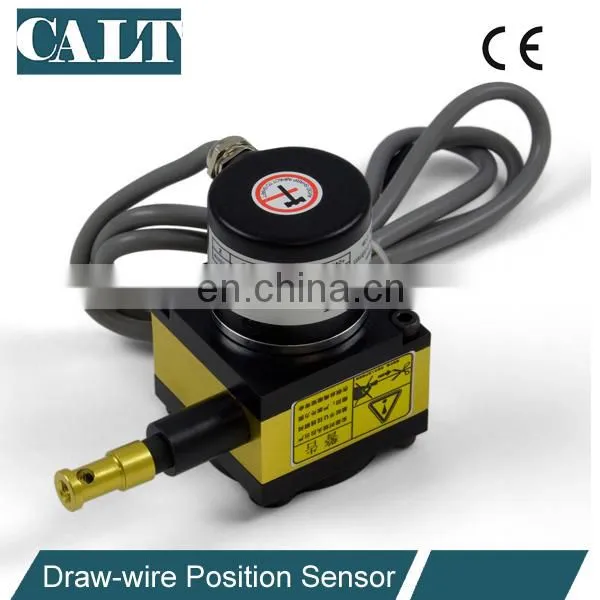

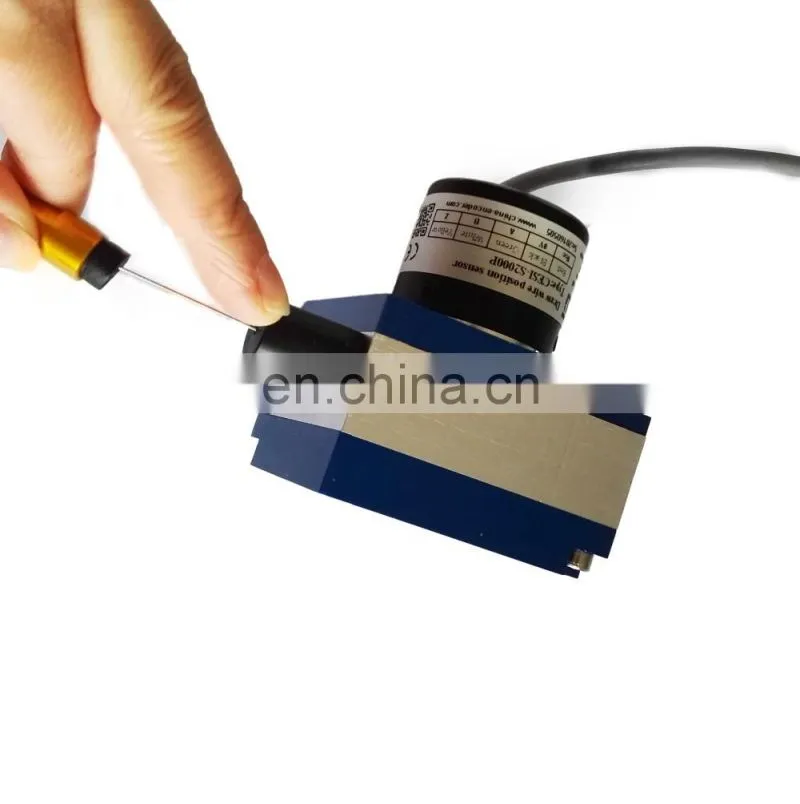

Cable Pull Displacement Encoder 500mm Potentiometer String Encoder

Cable Pull Displacement Encoder 500mm Potentiometer String Encoder thumbnail-1
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder thumbnail-2
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder thumbnail-3
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder thumbnail-4
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder thumbnail-5
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder photo-1
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder photo-2
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder photo-3
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder photo-4
Cable Pull Displacement Encoder 500mm Potentiometer String Encoder photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Shanghai Qiyi Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Cable Pull Displacement Encoder 500mm Potentiometer  String Encoder

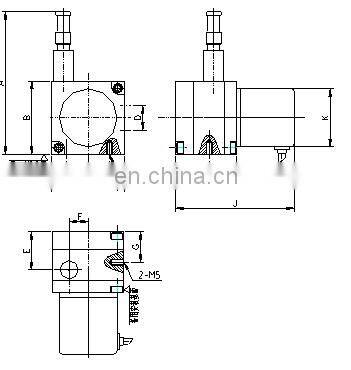

CODE

CWP-S500

A

94

B

48

C

28

D

16

E



F

6.37

G

20

H

18

I

40

J

78

K

38

NOTE

Parameter table for general configuration dimension, the customers please reference order series of specific parameters (configuration changes will readjust)










Detection method

Precision potentiometer

Resolution

Theory of infinite

Measuring rang

0~500mm

Anti-vibration

10HZ - 2000HZ,10G

Output

4~20mA,0~10Vdc,0~5Vdc,

Resistance 0~10K omh

Repeatability

+/-0.02FS

Linearity

Standard:0.25%FS   Precision:0.1%FS

Operating Temperature

-10℃~70℃

rope

wire rope 0.6-1.2mm, rope maximum load: 16KG

Storage Temperature

-20℃~80℃

Starting torque

<600g

protection

IP65/IP54

PULL speed

Max:600m/s

Life

>200 000 times

Operating voltage

12~24VDC

Weight

<600g
