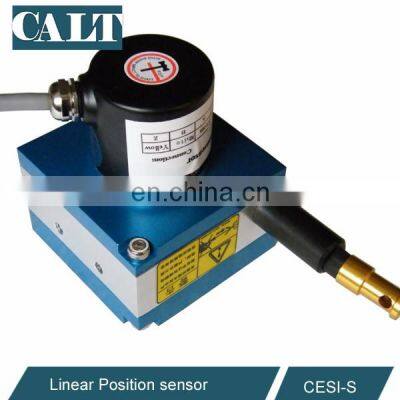

CALT 0-2000mm Range Rope Incremental Encoder Cable Position Transducer photo-2

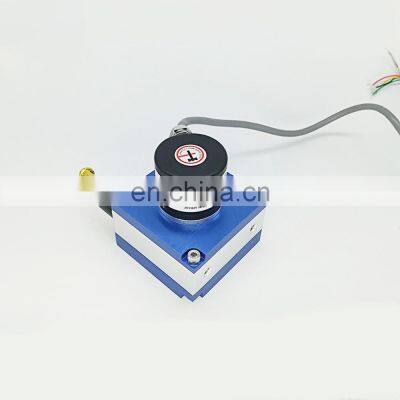

CALT 0-2000mm Range Rope Incremental Encoder Cable Position Transducer photo-3
CALT 0-2000mm Range Rope Incremental Encoder Cable Position Transducer photo-4

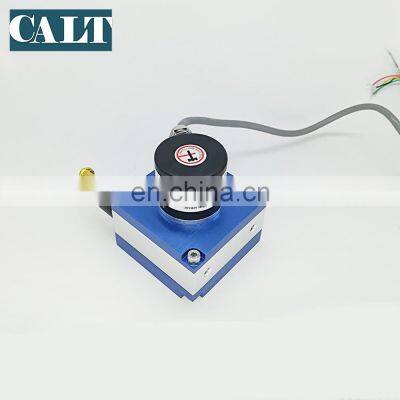

CALT 0-2000mm Range Rope Incremental Encoder Cable Position Transducer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Shanghai Qiyi Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

CALT 0-2000mm range linear incremental encoder cable position transducer



We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 30000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current,and Quadrature Encoder.



CALT 0-2000mm range Rope incremental encoder cable position transducer



Resolution

0.01,0.02,0.04,0.08 mm / plus

Range

0~2000mm

Detection method

Incremental encoder

Accuracy

+/-0.05%FS

Current consumption

≤60mA

Operating Temperature

-20°C~80°C

Frequency response

10K Hz to 50K Hz

Operating Humidity

30~85% No condensation

Output signal

AB phase, ABZ in The phase

Supply voltage

10-30V DC ,5V DC

Phase difference

A, B a difference of 90 degrees

Cable

1M

Waveform up and down time

2 ms

Anti-shock

10HZ to 1500HZ, 10G

Starting torque

<700g

Impact resistance

20G,11ms

Circuit characteristics

voltage, current, push-pull, long-line drive output, open collector

rope specifications

rope 0.6-1.2mm, rope maximum load: 16KG

Degree of protection

IP65/IP54

weight

450g

speed

1m/s

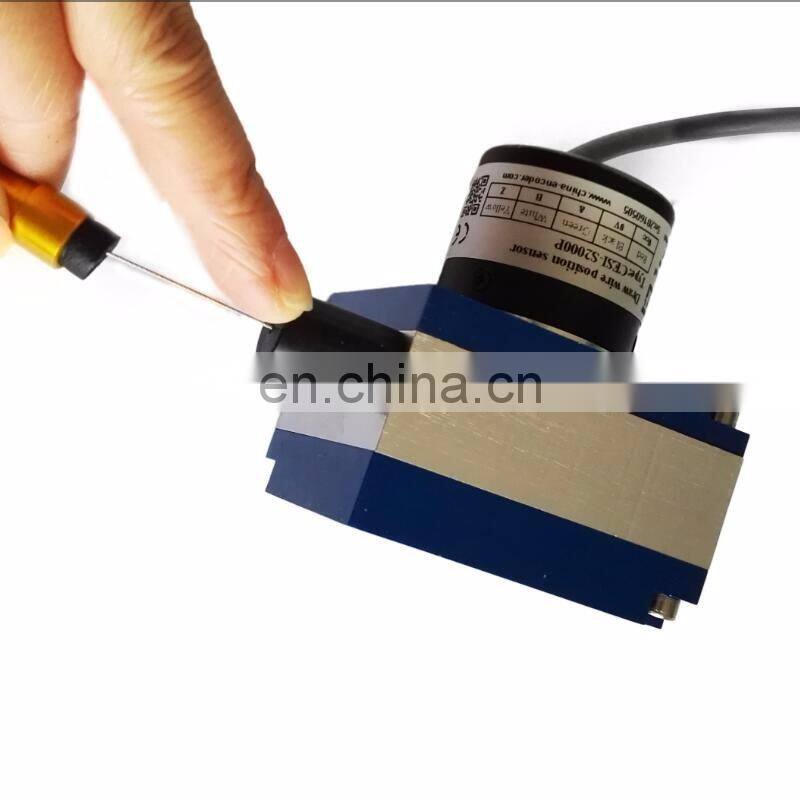

CALT 0-2000mm range Rope incremental encoder cable position transducerCALT 0-2000mm range Rope incremental encoder cable position transducer
