0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer

0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer thumbnail-1
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer thumbnail-2
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer thumbnail-3
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer thumbnail-4
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer thumbnail-5
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer photo-1
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer photo-2
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer photo-3
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer photo-4
0-1000mm Range Potentiometer Draw-wire Displacement Sensor Spring Loaded Potentiometer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Shanghai Qiyi Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

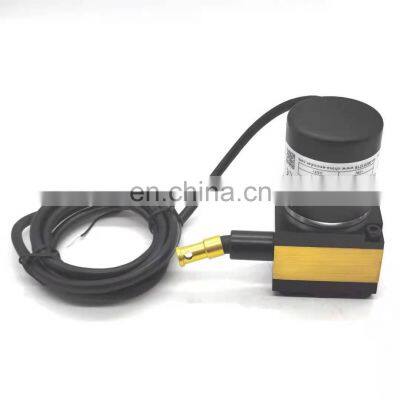

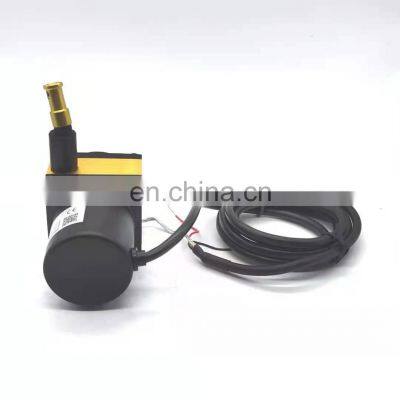

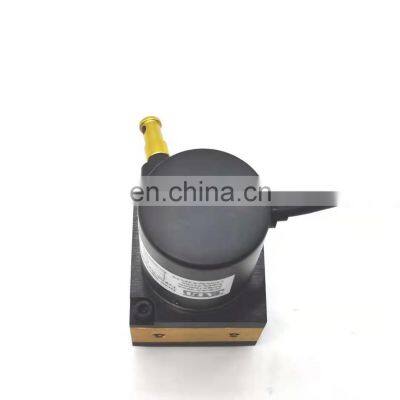

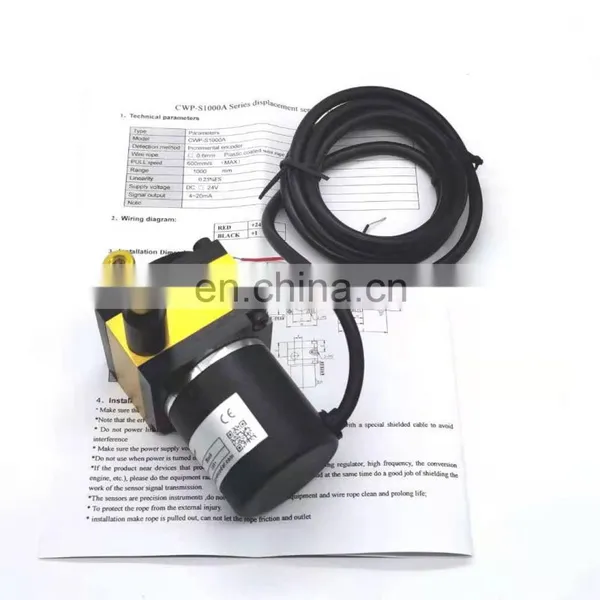

 0-1000mm range linear potentiometer displacement sensor spring loaded potentiometer



* Compact size, rugged construction, easy to install

* Economic cost, and cost savings for customers

* Various signals output optional: 4 ~ 20mA, 0 ~ 5V, 0 ~ 10V and 0~10KΩ

* The cylinders, testing machines and other industry has achieved large-scale applications, reliability







Detection method

Precision potentiometer

Resolution

Theory of infinite

Measuring rang

0~1000mm

Anti-vibration

10HZ - 2000HZ,10G

Output

4~20mA,0~10Vdc,0~5Vdc,

Resistance

Repeatability

+/-0.02FS

Linearity

Standard:0.25%FS   Precision:0.1%FS

Operating Temperature

-10℃~70℃

rope

wire rope 0.6-1.2mm, rope maximum load: 16KG

Storage Temperature

-20℃~80℃

Starting torque

<600g

protection

IP65/IP54

PULL speed

Max:1m/s

Life

>200 000 times

Operating voltage

12~24VDC

Weight

<600g



0-1000mm range potentiometer draw-wire displacement sensor spring loaded potentiometer





0-1000mm range potentiometer draw-wire displacement sensor spring loaded potentiometer
