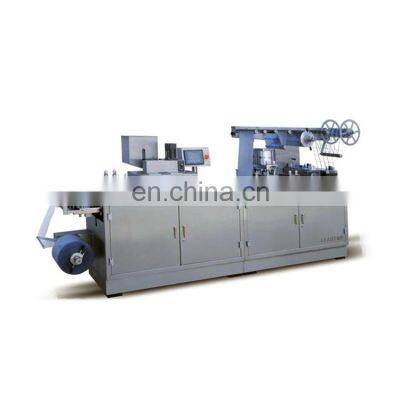

Blister Packing Cartoning Product Line (For Capsulestablets)
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- LTRG-80 Automatic High Speed Tube Filling and Sealing Machine
- LTRG-60A Aluminum Tube Filling and Sealing Machine
- HWZ Series Low Temperature Vacuum Microwave Fruit Drying Machine
- Automatic High Speed Cartoning Machine For Cake
- Pharmaceutical Use Tropicalized Blister Foil
- Vial External Washing and Drying Machine DNWX-300
Product Description
Product Description

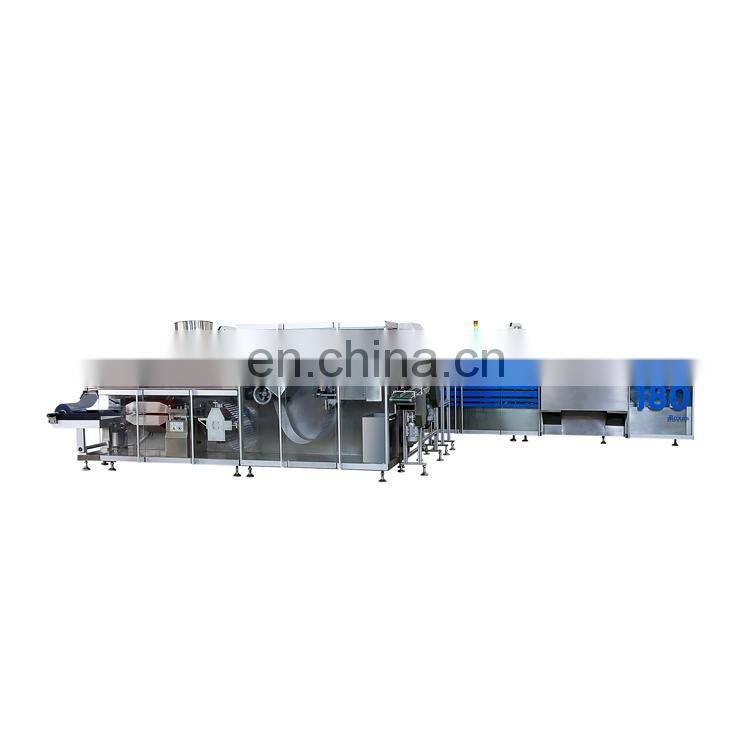

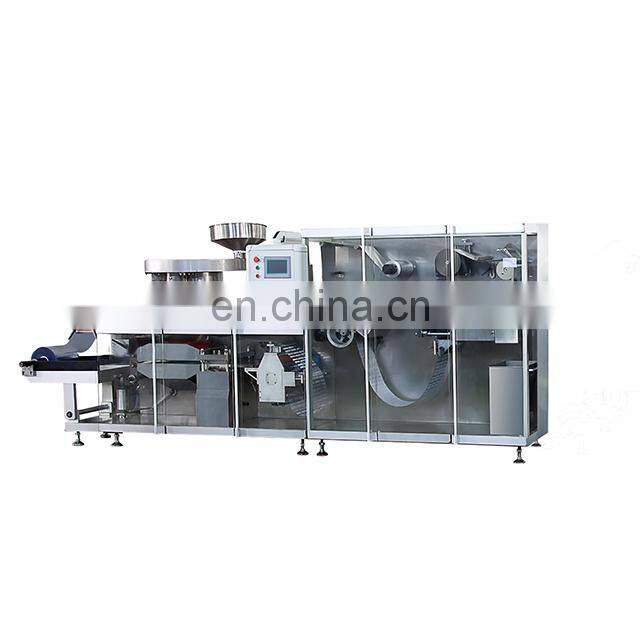

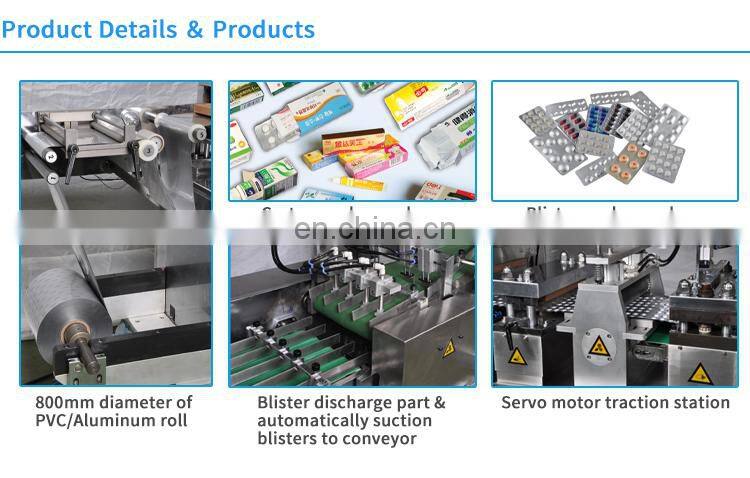

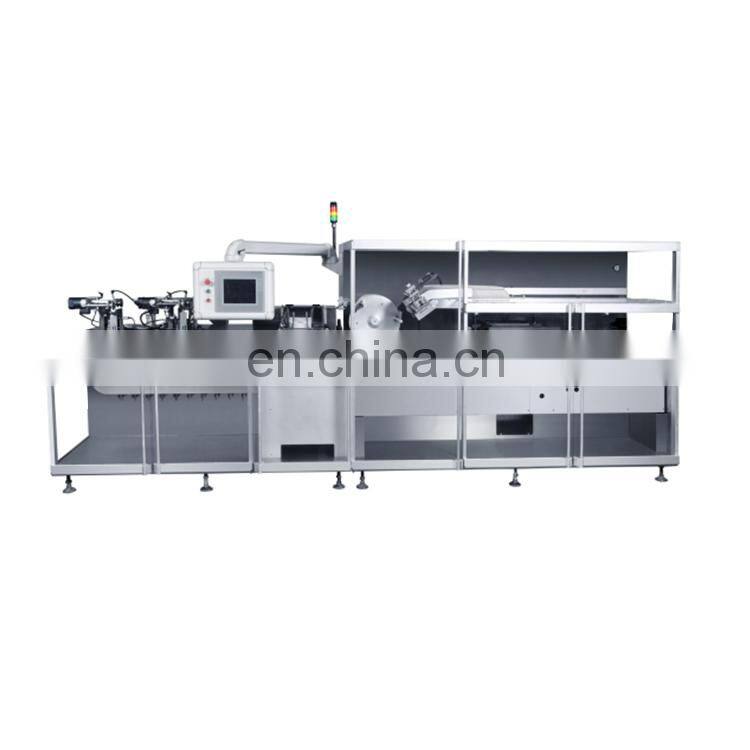

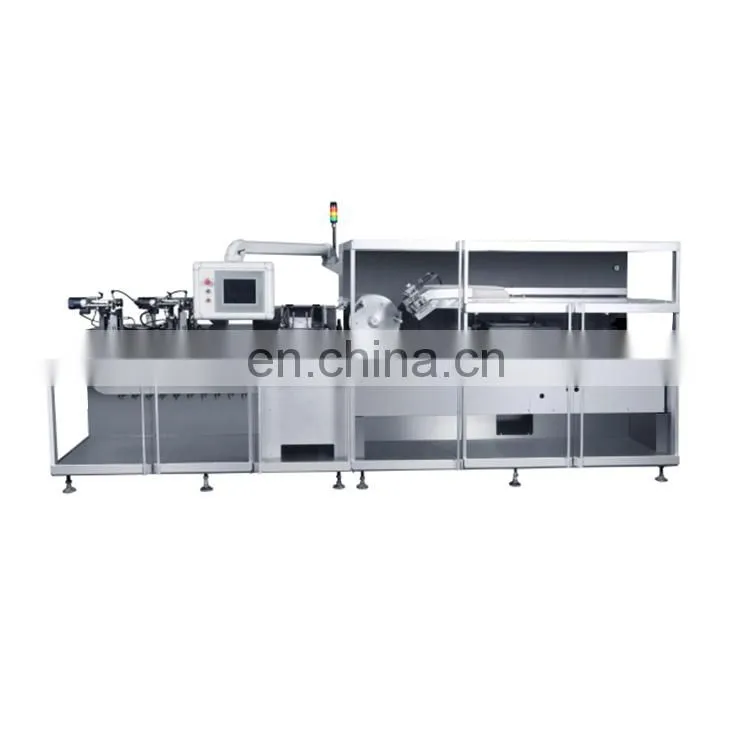

This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
Capacity and Characteristic:
1) Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2) When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3) Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4) Vibrating material categorizing and feeding mechanism is stable and reliable.
5) Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6) It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7) Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8) Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
Technical Parameters
Items | Data |
Cutting Speed | AL/AL: 20- 40 punches/min AL/PVC: 20-70 punches/min |
Production Capacity | AL/AL: 4800-9600 blisters/hour AL/PVC: 4800-16800 blisters/hour |
Range Of stroke | 40-120mm |
Max. Forming Area | 260 ×115mm |
Max. Formed Depth | AL/AL: 12mm Al/PVC: 18mm special: 25mm |
Forming power (upper& lower heating) | 2kw (×2) |
Heat-Sealing power | 1.5kw (×2) |
Total power | 380V50HZ (220V60HZ) 9.5kw |
Motor Power | 1.5kw |
Volume Flux Of Air Pump | ≥0.4m3/min |
PVC | (0.2-0.5)×260mm |
Sealing Al-Foil (PTP) | (0.02-0.05)×260mm |
Forming Al-Foil | (0.09-0.15)×260mm |
Overall machine dimension | 4700×820×1820mm |
Weight | 2000kg |
