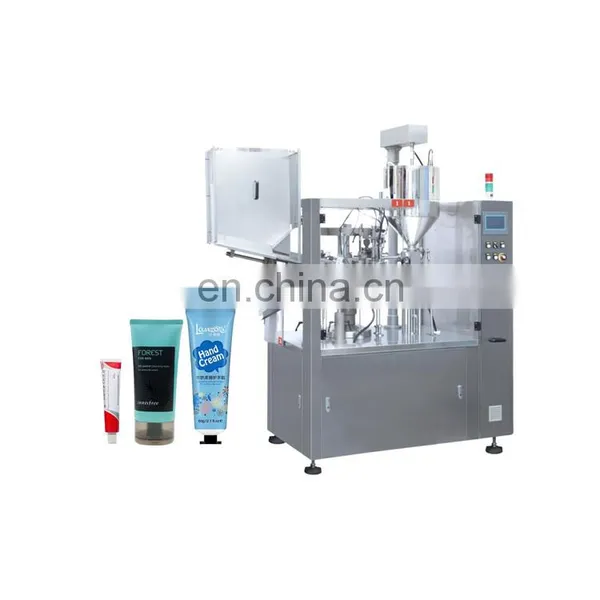

LTRG-80 Automatic High Speed Tube Filling and Sealing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LTRG-60A Aluminum Tube Filling and Sealing MachineNegotiableMOQ: 1 -
HWZ Series Low Temperature Vacuum Microwave Fruit Drying MachineNegotiableMOQ: 1
-
Automatic High Speed Cartoning Machine For CakeNegotiableMOQ: 1
-
Pharmaceutical Use Tropicalized Blister FoilNegotiableMOQ: 1
-
High Efficiency CBD Oil Stevia Sugar Plant Sugar Vacuum Belt Dryer MachineNegotiableMOQ: 1
Products Description
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Product Paramenters
Tube Material |
Plastic tube, laminated tube |
Tube Diameter |
Φ5mm-Φ60mm |
Tube Length |
50-300mm (customizable) |
Filling Volume |
5-250ml/piece (Adjustable) |
Filling Accuracy |
≤±1% |
Product Capacity (Pcs/min) |
30-50 0.1m3/min |
Air Supply |
0.55-0.65Mpa |
Motor Power |
1.2kw (380V/220V 50Hz) |
Heat Sealing Power |
5kw |

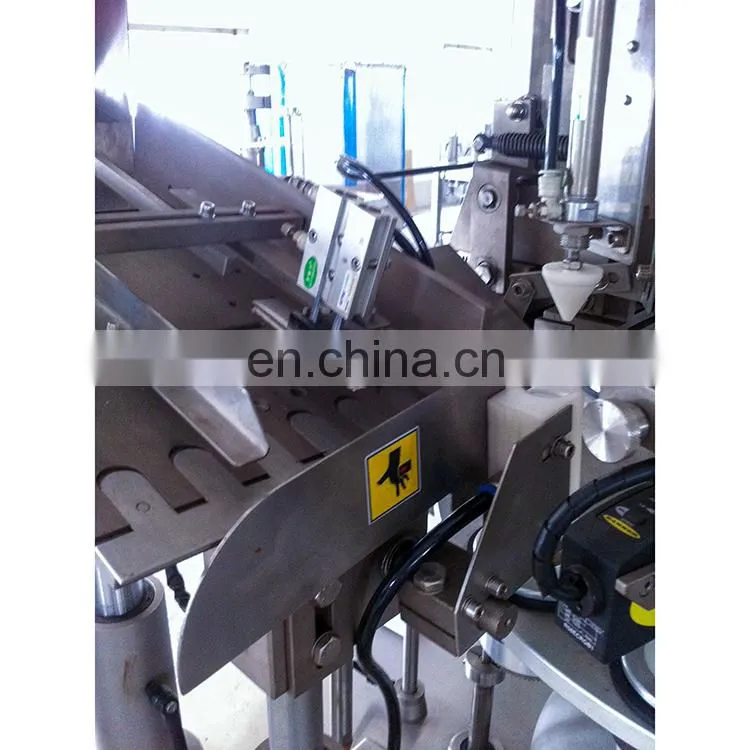

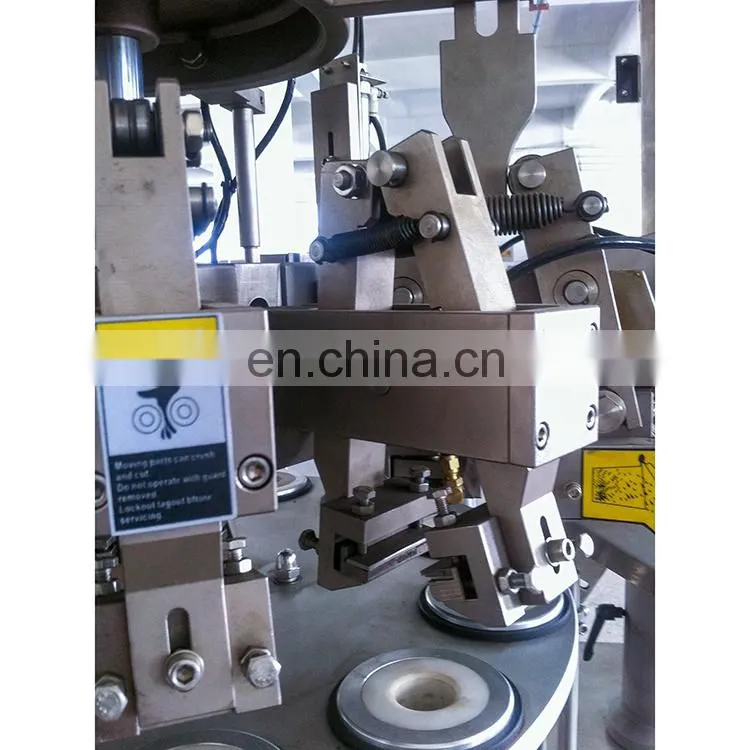

Machine details
Features

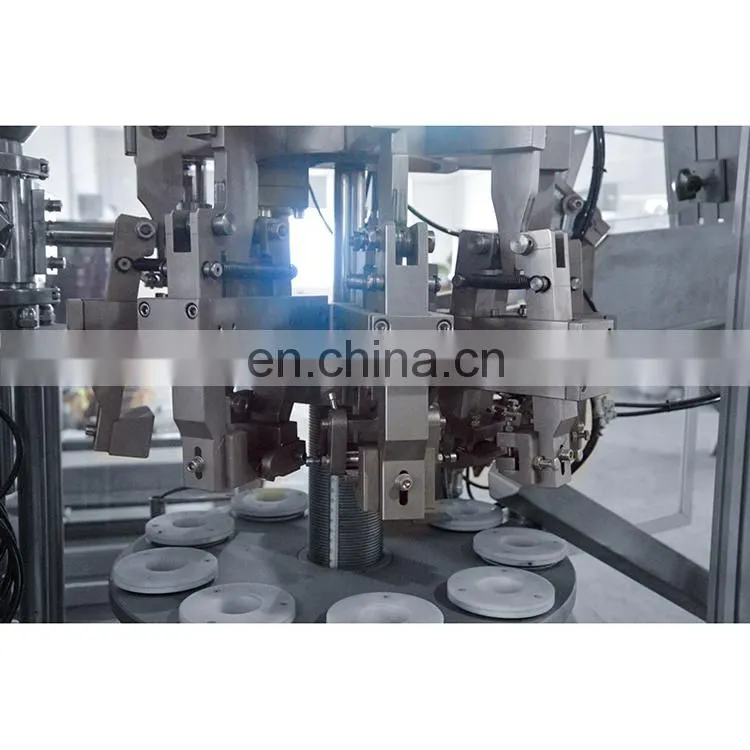

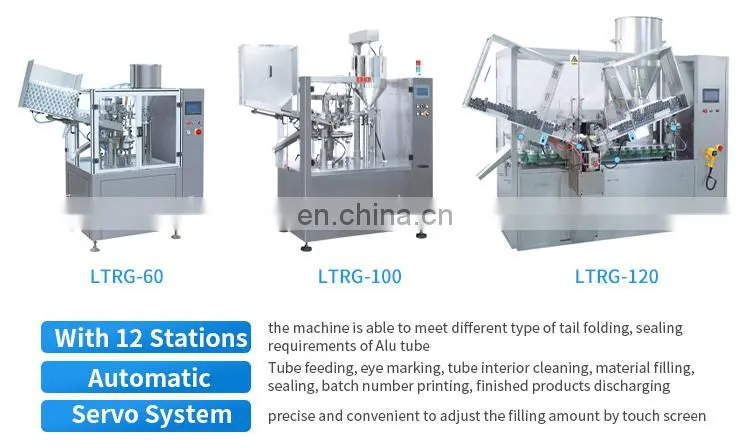

1.With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.

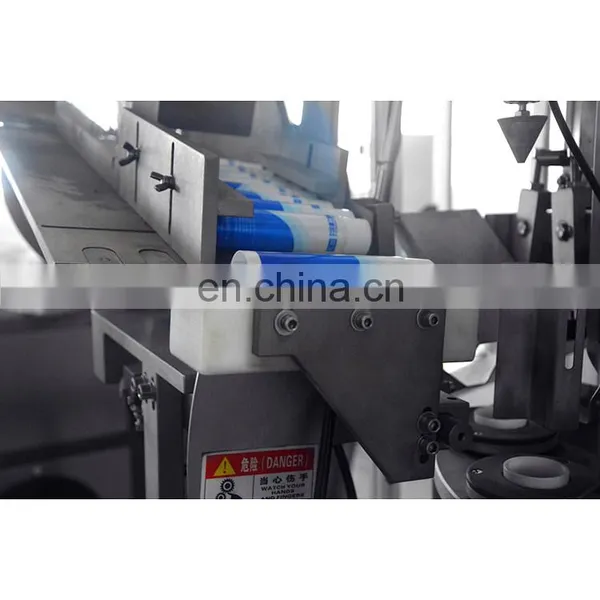

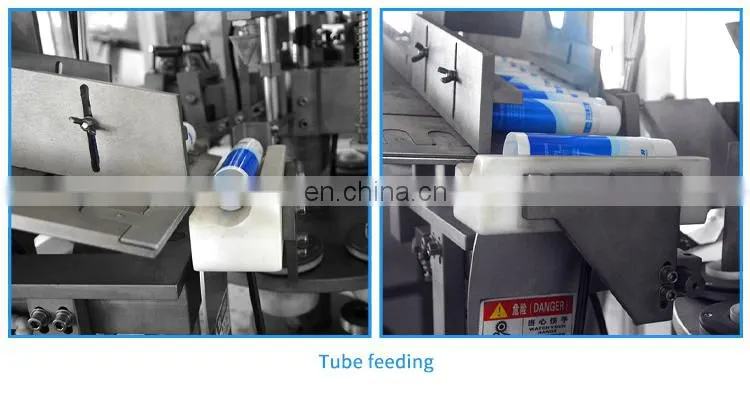

2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

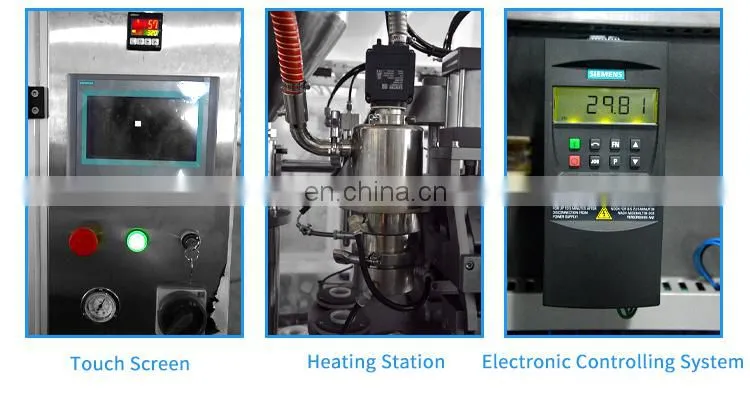

3.Servo control makes it precise and convenient to adjust the filling amount by touch screen.

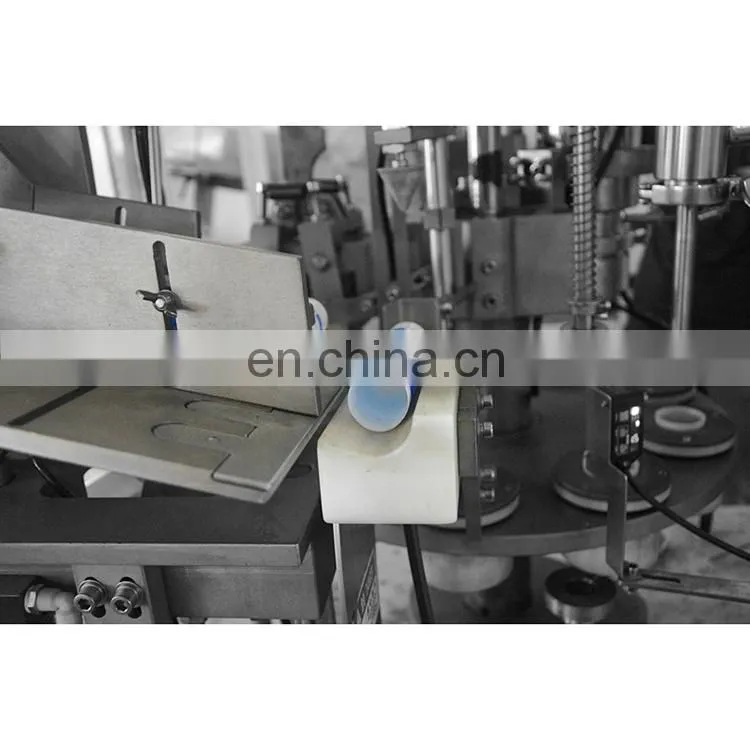

4.According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

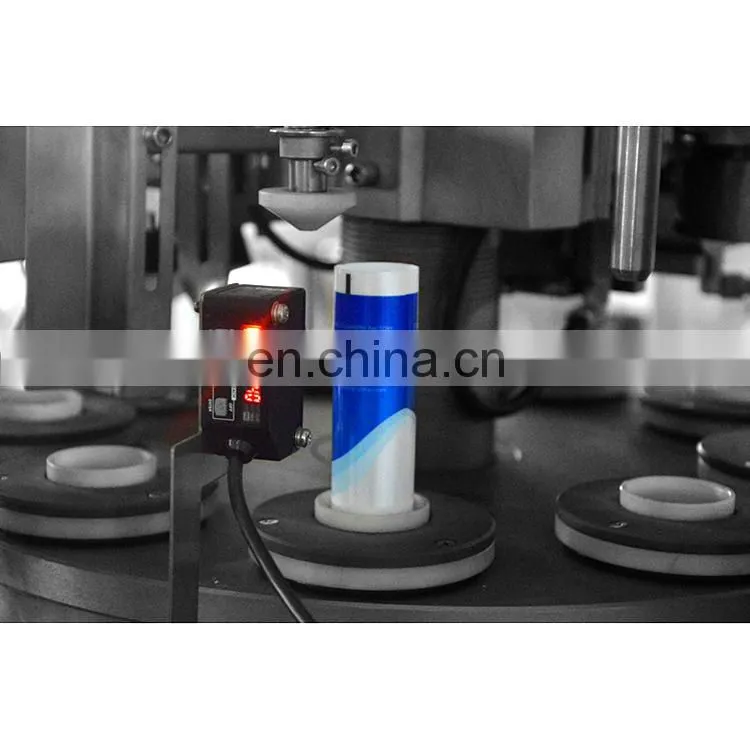

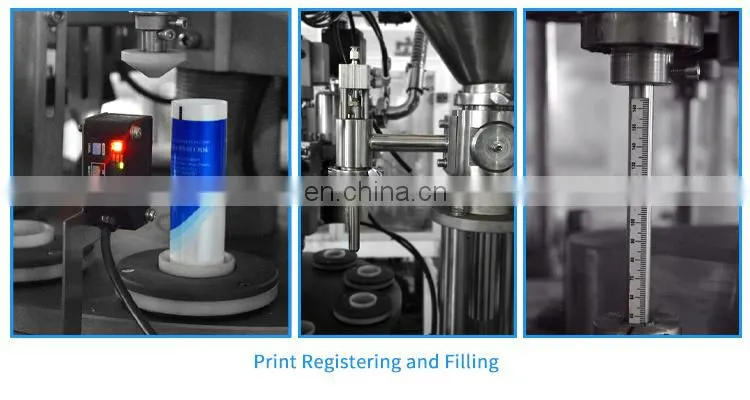

5.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

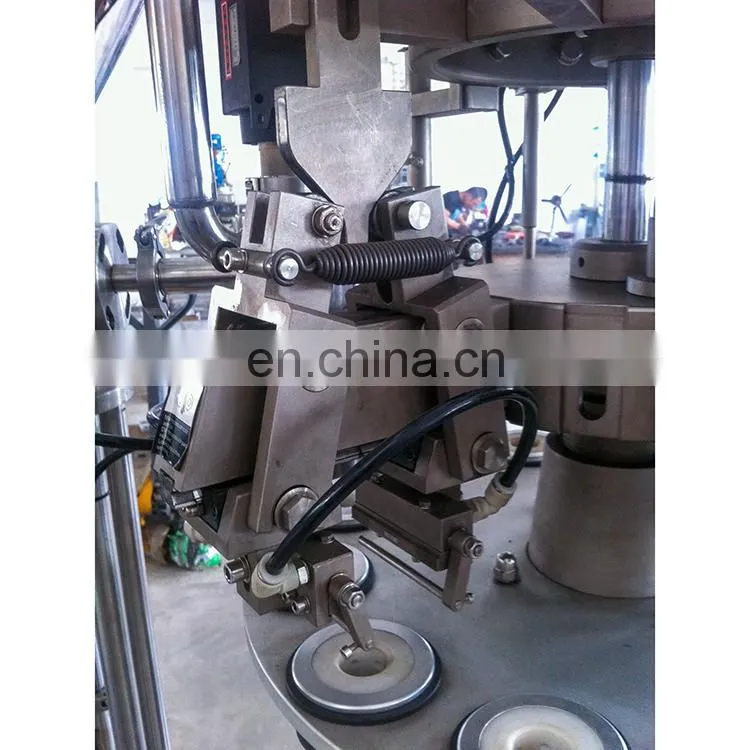

7.Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
Final Product
More Products
Company Profile
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
