LTMC-4 Professional Vibration Template Tablet Counter Tablet Counting Filling Machine

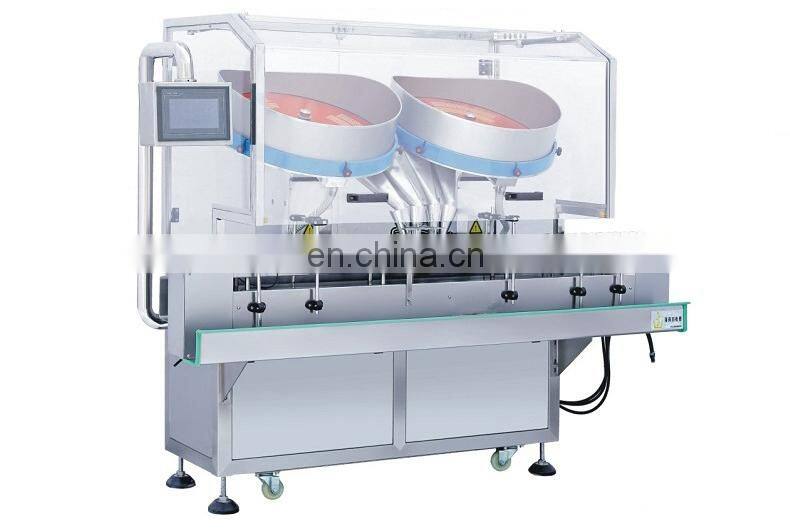

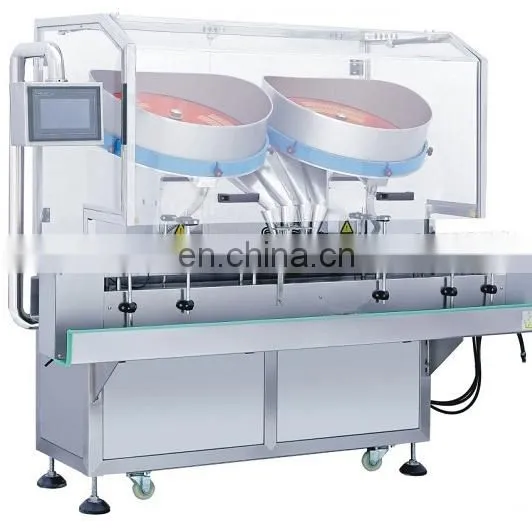

LTMC-4 Professional Vibration Template Tablet Counter Tablet Counting Filling Machine photo-1
LTMC-4 Professional Vibration Template Tablet Counter Tablet Counting Filling Machine photo-2

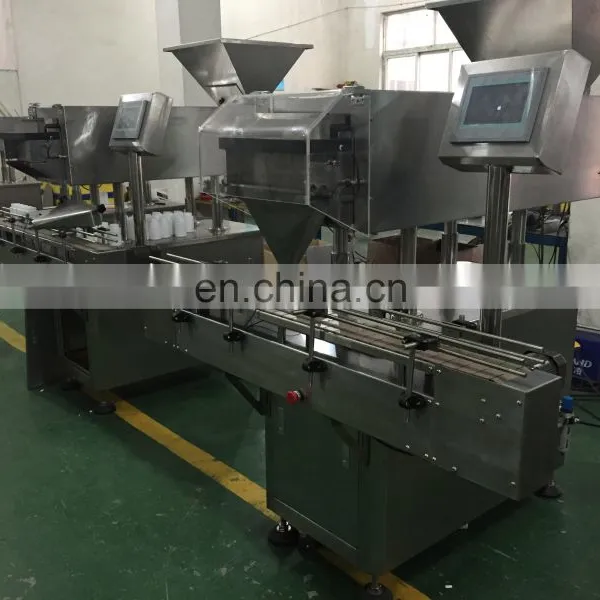

LTMC-4 Professional Vibration Template Tablet Counter Tablet Counting Filling Machine photo-3

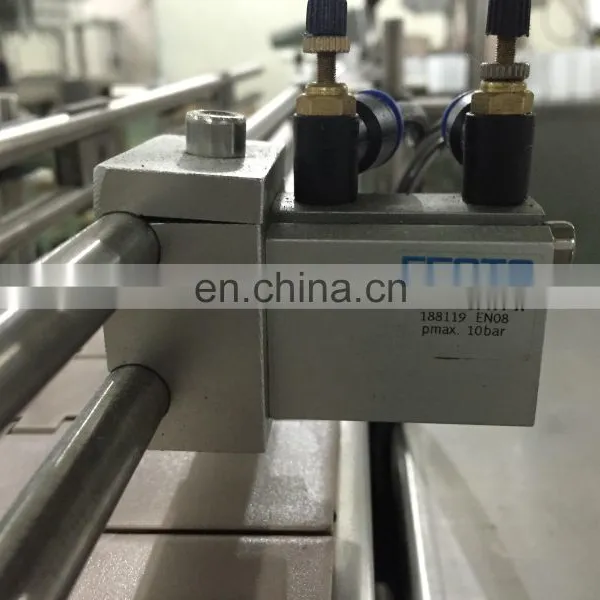

LTMC-4 Professional Vibration Template Tablet Counter Tablet Counting Filling Machine photo-4

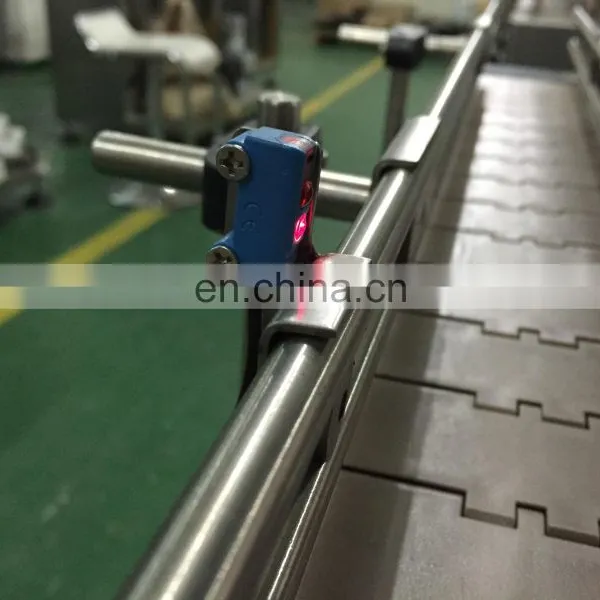

LTMC-4 Professional Vibration Template Tablet Counter Tablet Counting Filling Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Simple Introduction:

The unique counting template ensures that the machine can count and fill regular tablets and pills but also irregular tablets and capsules. Eccentricity sifting device our company designs and develops independently is a national patented product, which overcomes the problems other companies meet: gear-driven device is high noise, easily damaged and difficult to adjust.
The machine is super-mute and variable frequency controlled. It is controlled through PLC based system, so it runs reliably. The machine makes use of international brand photoelectric controls for inspecting if lacking bottle and if bottle jammed to realize prompt stop once malfunction occurs. And it also has protective functions against over-load, over-current, under-voltage, over-voltage, etc. Materials in contact with medicament conform to requirements of GMP.
Model
LTMC-4
Size of medicament
Tablet:φ5-12mm Capsule:00#-5# all kinds of soft capsule
Size of bottles
20-300ml
Output
Tablet
60-120 bottles/min (100 pcs/bottle)
Capsule
c bottles/min (60 pcs/bottle)
Power supply
220V 60Hz
Power
2KW
Overall dimensions
2140×680×1580
Details:
1.Touch Screen 2. Detection Sensor 3.Valve Adjust Wheel 4. Controlling Cam 5.Hand Wheel 6. Counting Mould 7. Dropping Hopper 8. Sending Valve 9.Conveyor Belt 10. Feeder 11. Feeding Adjusting 12. Vibration Adjust 13. Angle Adjust 14. Dedustor Mouth
Detailed Images
Foe more information ,please contact us~
After Sales Service
 Installation and after sales service: Installing and Commission: We will install and test the machine in best working condition before shipment. Ifcustomer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra. Warranty Period: There is five year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life. After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.                                        2. We have 24hours hot line for Technical Support.                                        3. We get 18hours internet line for technical support.                                                4. Video camera in workshop to help you adjust and solve machine                                                        problem in working situation.
Related Products
Company Introduction
Packing&Shipping
FAQ
Q: What price terms you offer? A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request. Q: What payment terms you take? A: TT, LC, other terms are also workable. Q: Will you help with installation and stuff training? A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day. Q: How can I visit your factory? A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you! Any other doubts about our machine, please feel easy to contact with us.
