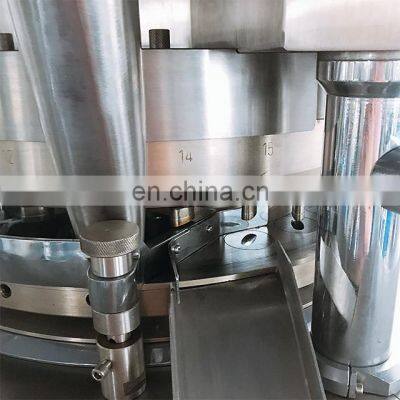

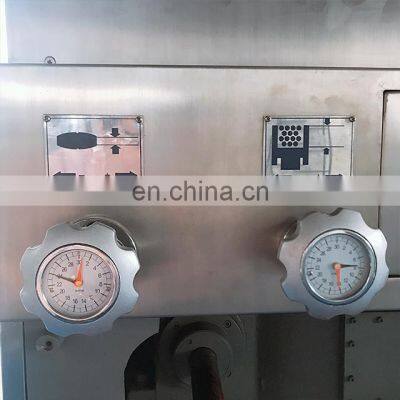

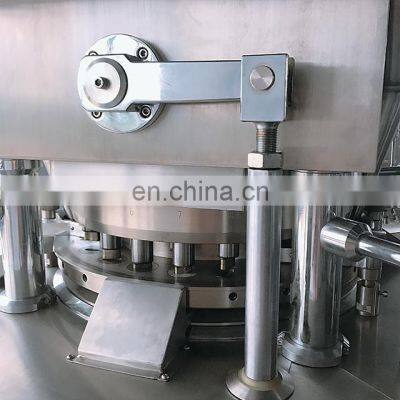

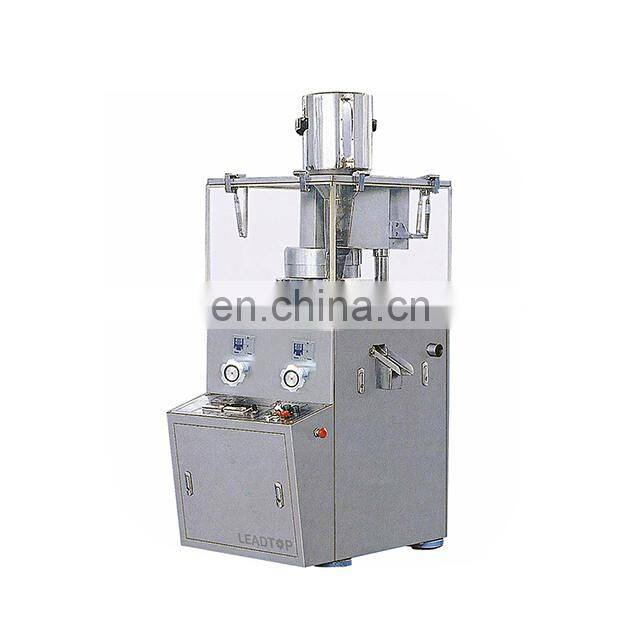

High Efficient ZP-37D Tablet Press Machine Rotary
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LTRG-80 Automatic High Speed Cream Tube Filling and Sealing MachineNegotiableMOQ: 1 -
Vacuum Belt Low Temperature Industrial Pharmaceutical Continuous Freeze DryerNegotiableMOQ: 1
-
High Quality Automatic Cbd Oil Filling MachineNegotiableMOQ: 1
-
LTDG-Series CE Certified High Quality Vacuum Dryer VegetableNegotiableMOQ: 1
-
LTDG-Series CE Certified High Quality Vacuum Palm Oil Vacuum DryerNegotiableMOQ: 1
Product Description
Application:
This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and soon.
Stations (unit) |
37 |
Maximum compression (KN) |
80 |
Max. Diameter of tablet to be produced (mm) |
13 |
Max. Filling depth (mm) |
15 |
Max. Thickness of tablet (mm) |
6 |
Thickness of the die (mm) |
22 |
The diameter of the circle of the central pitch of upper &lower punches on the turret |
320mm |
Rotary speed of the turret (rpm) |
14-35 |
Capacity of the tablets (max ten thousand tablets/hour) |
60,000-170,000pcs |
Area to occupy (mm 2 ) |
930x950 |

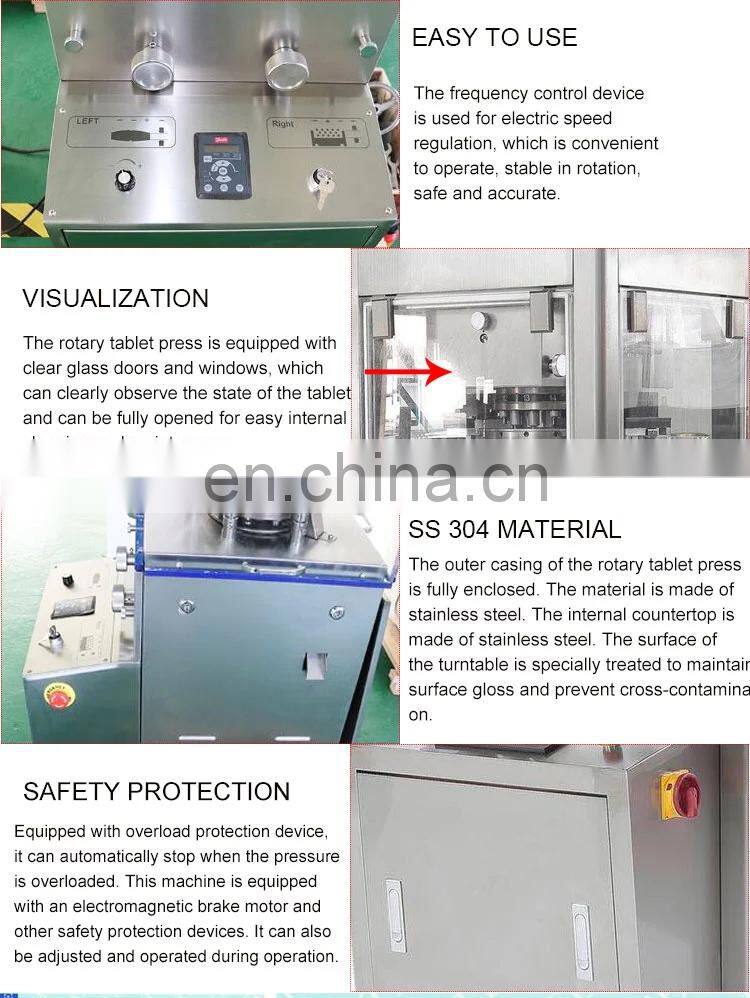

Features:
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust.
Cube sugar
tablet
After Sales Service
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period:
There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service:
1we have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.
Please contact us for more information if you are interested~
Related Products
Company Introduction
Packing&Shipping
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
