Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Packaging Equipment > LTEC-48Automatic Electronic Tablet Counting Filling Machine Easy to Opreate
LTEC-48Automatic Electronic Tablet Counting Filling Machine Easy to Opreate
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficient ZP-37D Tablet Press Machine RotaryNegotiableMOQ: 1 -
LTRG-80 Automatic High Speed Cream Tube Filling and Sealing MachineNegotiableMOQ: 1
-
Vacuum Belt Low Temperature Industrial Pharmaceutical Continuous Freeze DryerNegotiableMOQ: 1
-
High Quality Automatic Cbd Oil Filling MachineNegotiableMOQ: 1
-
LTDG-Series CE Certified High Quality Vacuum Dryer VegetableNegotiableMOQ: 1
Product Description
Working Principle :
Ladder send bottle device will continuously to unscramble bottle tube, unscramble bottle tube inside the wheel by the driving of the drive gear rotate counterclockwise, tube inside the bottle under the action of centrifugal force, fall into the wheel groove, wheel groove bottle by the rotation of wheel drive, through the bottle plate and the bottles from the device to unscramble bottle device, bottle held bottle device under a pair of synchronous wheel clamping bottles from, in the process of to help bottle device, the bottom of the bottle in front of the bottle to rotary bottle device was self-righting (bottle) upwards, bottle in front of the bottle by the hook rod dial and pressure bottle device block, the bottle into the bottom of the bottle before, and also be automatically centering rotary bottle device.
Name |
LP-2 |
Application |
15-1000ml Round, square, flat square and special shape bottles made of plastic |
Capacity |
40～150 BPM Capacity is subject to the type and size of the bottles. |
Power supply and consumption |
220V/50HZ 0.6kw |
Size |
2080*1200*1600mm |
Material |
SS304 |
Control System |
MCU |
Pressed Air Supply |
0.6 Mpa |
Weight |
430kg |
Details:
1.Touch Screen 2. Detection Sensor 3.Valve Adjust Wheel 4. Controlling Cam
5.Hand Wheel 6. Counting Mould 7. Dropping Hopper 8. Sending Valve
9.Conveyor Belt 10. Feeder 11. Feeding Adjusting 12. Vibration Adjust
13. Angle Adjust 14. Dedustor Mouth
Feature:
1. Wide applicability, used for round, square, flat square and special shape bottles made of plastic.
2. Special bottle-unscrambling and bottle-feeding system, May cooperate with high speed packing lines.
3. Scientific control system and protect the bottles from hitting with each other.
4. Automatically operation, Intelligent control procedure, no need special worker and save labor.
5. Automatically reject inverted bottle and down mouth bottle to ensure no wrong bottles go to the next machine.
6. microchip chip is from U.S, photoelectric element is produced by TAIWAN.
Working Principle :

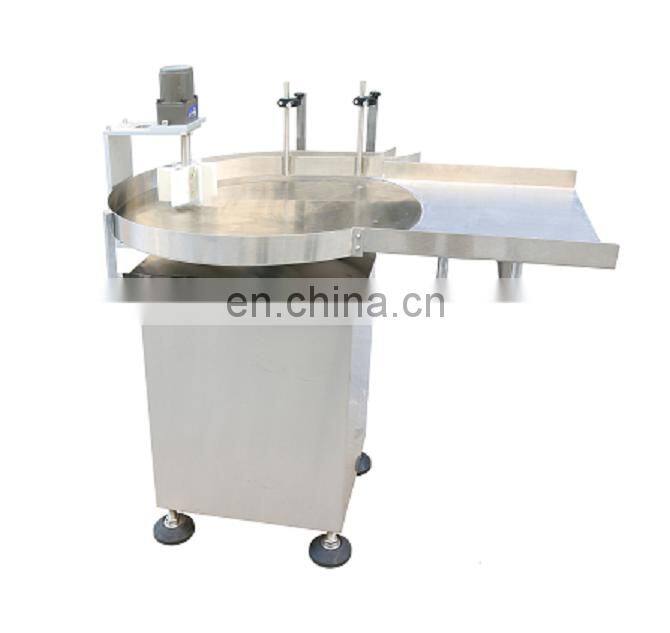

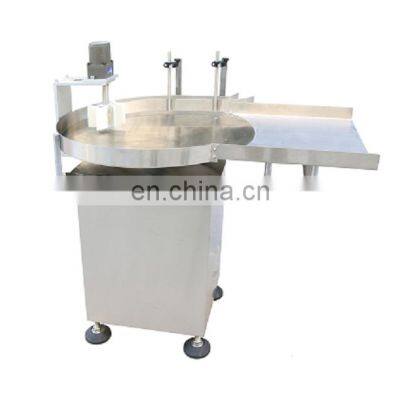

Turntable of bottle unscrambler was turned by electric motor ,the bottle was pushed into bottle turntable from storage bottle tray through bottle drive device，make bottle neatly arranged automatically enter into the guide bar,then into the track.The bottle were carried to Conveyor belt junction of electronic counting machine, automatic enter to Conveyor belt and fill Medicines.
Main Features :
1. Wide applicability, used for round, square and flat square bottles made of different kind of materials, especially good for big size bottles.
2. Reliable and coordination operation, smooth delivery
3. Easy to operate, no need special training
4. No need to change parts when shift between different products,Just a simple adjustment.
5. Simple structure, easy to clean, easy to maintenance.
Detailed Images
Foe more information ,please contact us~
After Sales Service
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. Ifcustomer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is five year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
