Home > Products > Outer Packaging Machine > cartoner machine box packaging multi-function packaging machines packaging machine

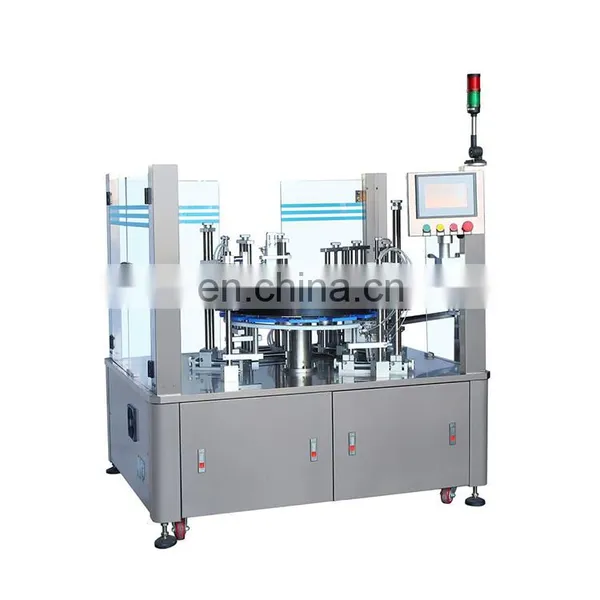

cartoner machine box packaging multi-function packaging machines packaging machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Semi-Automatic Cartoning Machine carton making machine multi-function packaging machines
- carton making machine semi-automatic carton pressing machines carton box machine price
- carton box machine price in india machine de carton carton packaging machine
- Automatic ampoule carton box packing machine blister Box Automatic Cartoning Packaging Machine
- Horizontal Automatic Carton Box Packing Bottle Cartoning Machine
- ZH-Series Cartoning Machine PLC Touch Screen Toothpaste Cartoning Machine
Product Description
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
- Application:
- Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.
- Feature:
- It is specially design to pack small quantities multi size box.
- With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.
- 304 stainless steel case
- Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel , can easily set and change the packing parameters.
Technical Parameters
Model | ZH-50 |
Packing speed | 20-50 Cartons/min |
Carton size range | L(40-125)mm×W(12-80)mm×H(12-80)mm |
Carton gram requirements | 250-350g/m3 |
Motor power | 1.5KW |
Power supply | Three phase 380V 50Hz |
Machine noise | ≤80dB |
Air pressure | 0.5-0.8 Mpa |
Air consumption | 150L/min |
Dimension | 1100×1500×1900 mm |
Weight | 250Kg |
Unformed carton station
Take unformed carton, adjust into the right direction and put them into the station
Rotary turret
for running the turret and deliver the carton to different position
Finished product output
The finished carton with product will come out at this position
Finished product
Finished product that was packed by our ZH-50 vertical cartoning machine
More Products
Company Profile
Our Company
Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
