Home > Products > Outer Packaging Machine > ZH-120 Simple Operation Vertical Medicine/Soap/Cosmetic Cartoning Machine
ZH-120 Simple Operation Vertical Medicine/Soap/Cosmetic Cartoning Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
ZH-Series Biscuits Condom Perfume Glasses Cartoning Machine Simple Operation Box Packaging Machine
-
Horizontal Box Bottle Blister Condom Bag Cartoning Machine
-
2021 Automatic New Type ZH-130 Supplier Tablet Capsule Pill Cylinder Shaped Bottle Tube Cartoning Machine
-
2021 Sell Well New Type Coil Ice Cream Biscuits Cartoning Machine For Glasses
-
Factory Price ZH-130 Automatic Horizontal Pharmaceutical Blister Sachet Bottle Tube Cartoning Machine With Long Work Life
-
Automatic Cephalosporin Candy Cartoning Machine Production Line For Cake
Product Description
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2. Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
Pouch Cartoning Machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
Pouch Cartoning Machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
Features
1) Rejection automatically if no product, nonstandard height or lack of leaflet.
2) Stop automatically if incorrect position of products into carton.
3) Stop automatically if no cartons or out of leaflet continues.
4) Easy to change to different products.
5)Protecting automatically for overloading.
6) Automatically display device for speed and finished products counting.
Technical Parameters
Model | ZH-100 | |
Weight in kg | 1100 | |
Steady production speed | 50-100 cartons/min | |
Grammage | Between 60-70g/m2 | |
Size range | (80-250) ×(90-170)mm (L×W) | |
Fold range | (1-4 )fold | |
Notice: The leaflet can be folded by the machine | ||
Grammage | Between 250-350g/m2 | |
Carton Size mm | (65-125)×(30-85)×(12-50)mm | |
Standard power supply | 220V – 50Hz | |
Power consumption in KW | 0.75 | |
Air consumption | 120-160L/min | |
Compressed Air Pressure | 0.6MPa | |
Noise | <70 dB | |
If You Want The Technical Parameters Of Other Models, Please Send An Inquiry At The Bottom Of The Details Page To Get Our Detailed Quotation
1.Feed Port
2.If The Customer's Light Bulb Product Needs a Centerfold, We Can Customize It.
3.Touch Screen
4.Electrical Configuration
5.Output Port

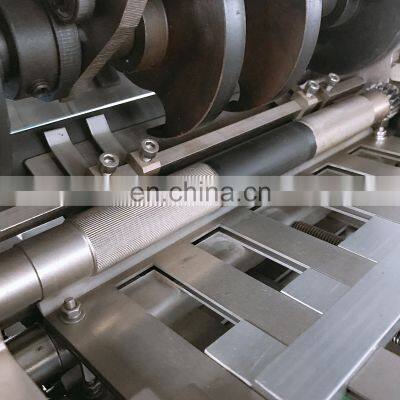

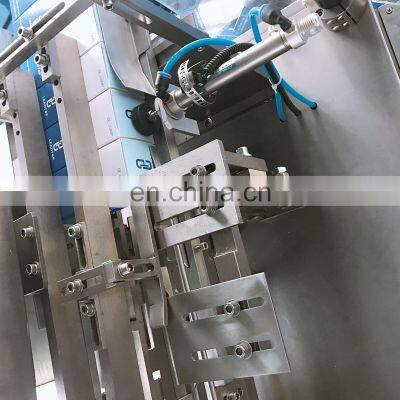

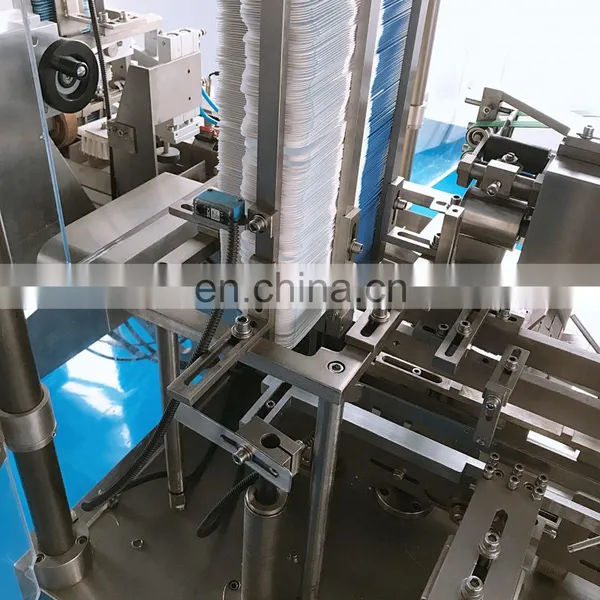

Detailed Images
1.Machine Materials
All The Materials Are Made Of Stainless Steel Or Nickel-Chromium Plated Material, With Stable Chemical Performance.The Welding Position Is Tempered And Durable
2.Double Clutch Design
When The Main Motor Overload Or Folding Machine Failure, Start Protection Function To Ensure The Safety Of Equipment And Personnel
3.Multiple Detection Points
Detection Points Are Densely Distributed In Various Workplaces, Such As Feeding, Quantity Detection ,
Packaging Into Conveyor Belt, Number Of Packages,
Carton In Place And So On.
4.Back-Push Feeding
Convenient For Front-End Operation
5.Machine Parts Member Code
More Convenience Replacement And Maintenance Parts For Customer

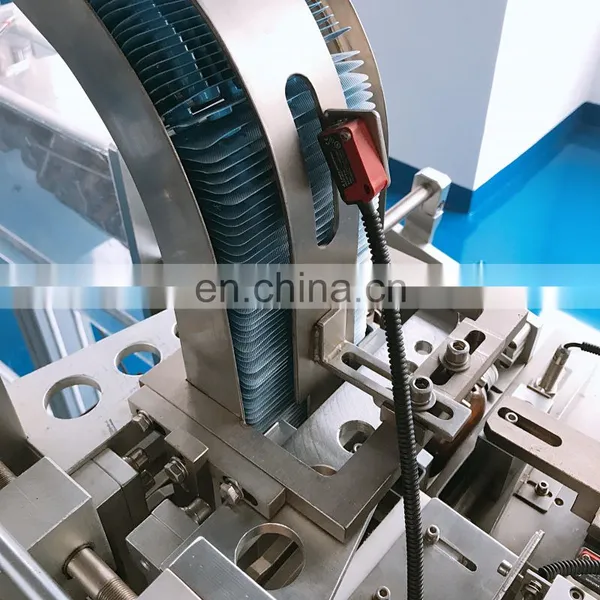

6.Instructions Separation Device
Lift The Head To Separate The Pull-Down Action,Making It Easier To Separate The Paper
Application Products
Related Products
Company Profile
Our Company
Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
Any other doubts about our machine, please feel easy to contact with us.
