Products Description
MT-50 model Horizontal type bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
Working Principle
Put the ampoule into the ampoule hopper, the hopper will transport the ampoule to labeling station. There is automatic sensor equipped on the machine will sense the passed ampoule and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

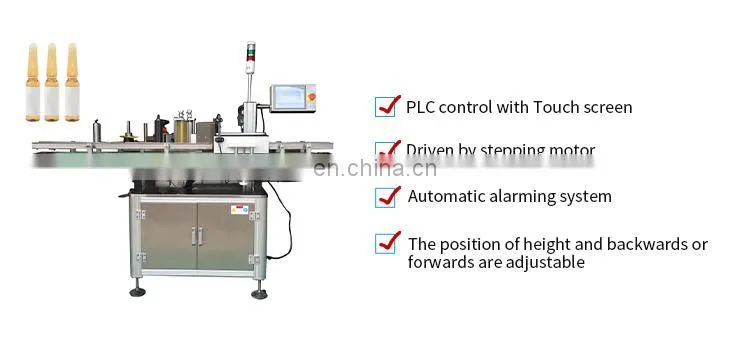

Features
The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)
PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.
The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.
The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.
Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.
The position of height and backwards or forwards are adjustable.
Technical Parameters
Driver Motor: |
Step motor |
Running speed: |
1ml and 2ml around 100 ampoules/min
5ml,10ml around 80ampoules/min
20ml-50ml, around 50ampoules/min
|
Label Specification |
Adhesive sticker，opaque label |
The application of label |
Height 10-70mm Length 25-80mm |
The application of ampoule |
Diameter:12-25mm Height:25-95mm |
The inner diameter of label roll |
76mm(min) |
The outer diameter of label roll |
350mm(max) |
Weight: |
200kg |
Printer to use air |
5kg/cm ² |
Power supply: |
AC110V 0.3Kw 50HZ Single phase or accord to your demand |
Overall Size: |
1800*700*1270mm |
*Ribbon Coding machine: |
HP 260Q |
Product Details
Step Motor Label Unwinding System Coding Machine for printing Bach Number
(LTPM CHINA special)
Siemens Touch Screen Labeling Station
Adjusting Wheel with Numbers
lt is easy adjusting for different case and label.
lnstallation and Testing Workshop
