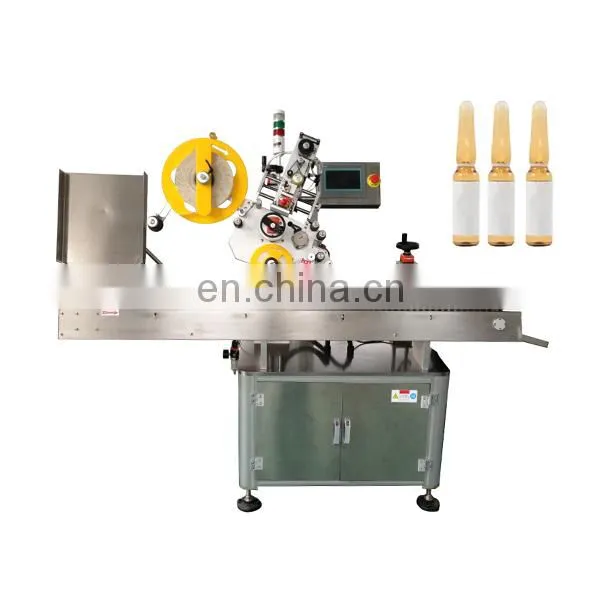

Horizontal Automatic Glass Ampoule Bottle Tube Labeling Machine

Name: Horizontal Automatic Glass Ampoule Bottle Tube Labeling Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Attention: 1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us. 2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat. 3.When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

Products Description

MT-50 model Horizontal type bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

Working Principle

Put the ampoule into the ampoule hopper, the hopper will transport the ampoule to labeling station. There is automatic sensor equipped on the machine will sense the passed ampoule and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

Features

The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)

PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.

The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.

The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.

Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.

The position of height and backwards or forwards are adjustable.

Technical Parameters

Driver Motor:	Step motor
Running speed:	1ml and 2ml around 100 ampoules/min 5ml,10ml around 80ampoules/min 20ml-50ml, around 50ampoules/min
Label Specification	Adhesive sticker，opaque label
The application of label	Height 10-70mm Length 25-80mm
The application of ampoule	Diameter:12-25mm Height:25-95mm
The inner diameter of label roll	76mm(min)
The outer diameter of label roll	350mm(max)
Weight:	200kg
Printer to use air	5kg/cm ²
Power supply:	AC110V 0.3Kw 50HZ Single phase or accord to your demand
Overall Size:	18007001270mm
*Ribbon Coding machine:	HP 260Q

Product Details

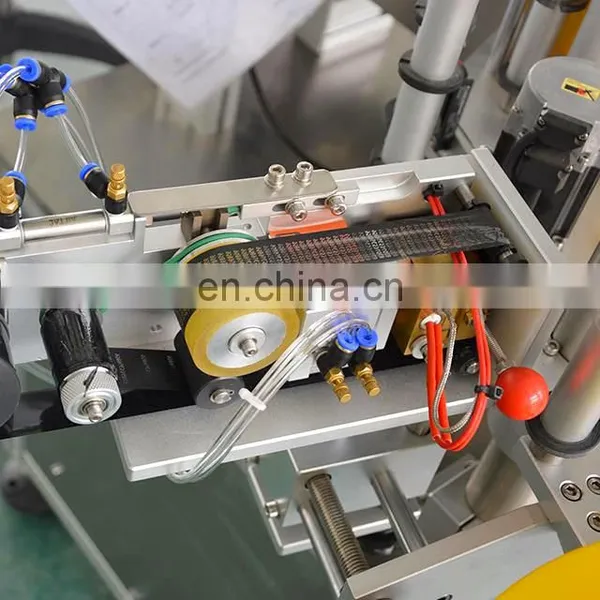

Step Motor Label Unwinding System Coding Machine for printing Bach Number (LTPM CHINA special)

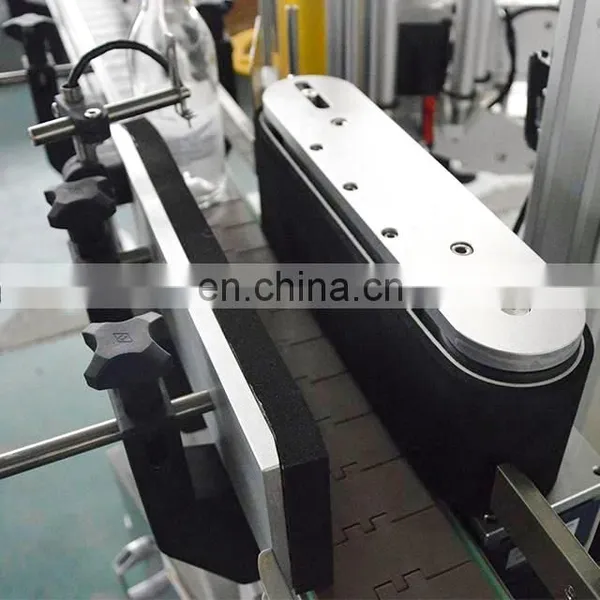

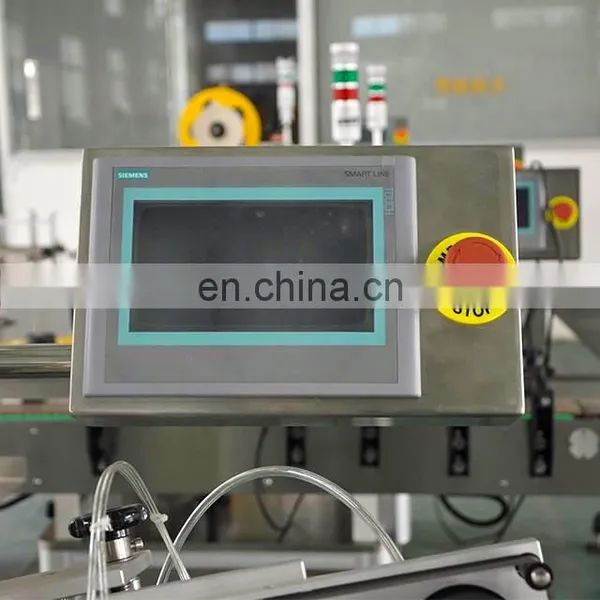

Siemens Touch Screen Labeling Station

Adjusting Wheel with Numbers

lt is easy adjusting for different case and label.

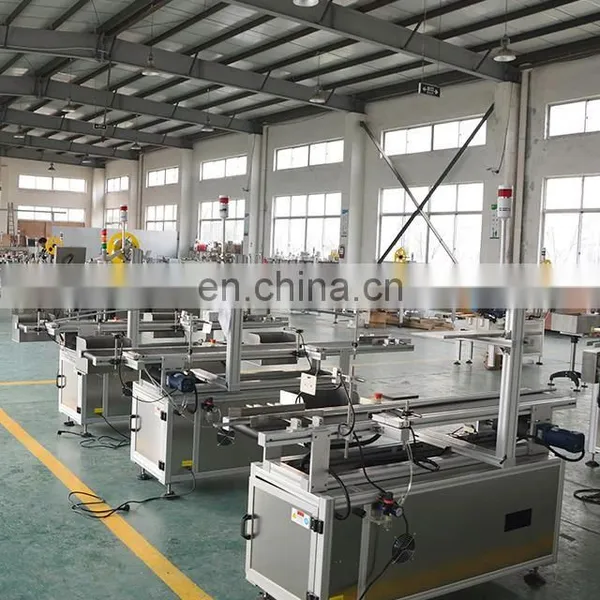

lnstallation and Testing Workshop

Application Products

More Products

Company Profile

Our Company

Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.

LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.

We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.

Our Machinery Manufacturing Workshop

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.

Professional Business Team

Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.

Our Certificates

ISO, CE, SGS, BV Certified Company.

Packing & Shipping

All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.

FAQ

Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?
A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
