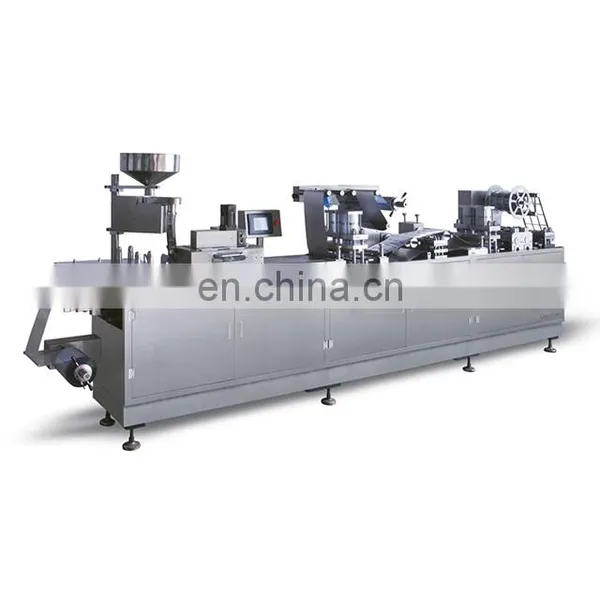

DPP-320 Pharmaceutical Horizontal Blister Packing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100% Quality Guarantee HY-U Automatic Suppository Production Line Filler MachineNegotiableMOQ: 1 -
Full Automatic Tablets Pills Capsule Bottling Line, Medical Production MachineNegotiableMOQ: 1
-
Automatic Capsule Tablet Counting Production Line/ Medicine Pill Counting LineNegotiableMOQ: 1
-
New Generation LTFK-3000 Fully Automatic Capsule Filling Machine Pharmaceutical MachineryNegotiableMOQ: 1
-
DPP-88 Blister Packing Machine ManufacturerNegotiableMOQ: 1
Product Description
Simple Instruction:
This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
Capacity and Characteristic:
1) Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2) When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3) Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4) Vibrating material categorizing and feeding mechanism is stable and reliable.
5) Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6) It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7) Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8) Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
Items |
Data |
Cutting Speed |
AL/AL: 20- 40 punches/min
AL/PVC: 20-70 punches/min
|
Production Capacity |
AL/AL: 4800-9600 blisters/hour
AL/PVC: 4800-16800 blisters/hour
|
Range Of stroke |
40-120mm |
Max. Forming Area |
260 ×115mm |
Max. Formed Depth |
AL/AL: 12mm
Al/PVC: 18mm special: 25mm
|
Forming power (upper& lower heating) |
2kw (×2) |
Heat-Sealing power |
1.5kw (×2) |
Total power |
380V50HZ (220V60HZ)
9.5kw
|
Motor Power |
1.5kw |
Volume Flux Of Air Pump |
≥0.4m3/min |
PVC |
(0.2-0.5)×260mm |
Sealing Al-Foil (PTP) |
(0.02-0.05)×260mm |
Forming Al-Foil |
(0.09-0.15)×260mm |
Overall machine dimension |
4700×820×1820mm |
Weight |
2000kg |
Related Products
Why Choose Us
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
