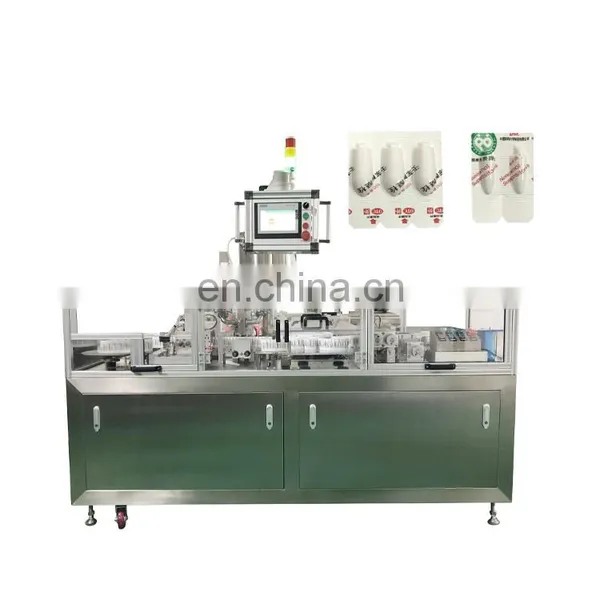

100% Quality Guarantee HY-U Automatic Suppository Production Line Filler Machine

Name: 100% Quality Guarantee HY-U Automatic Suppository Production Line Filler Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Attention: 1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us. 2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat. 3.When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

Products Description

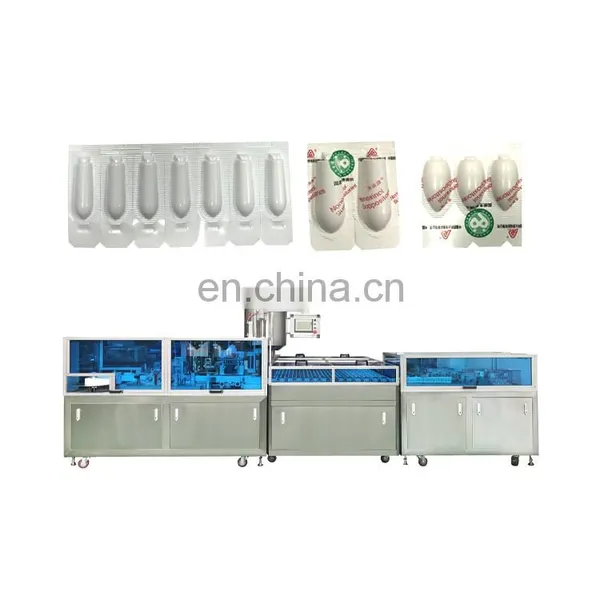

Automatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and
other production processes to complete the whole process, and the production capacity is 8000-12000grain/hour.

Production process：

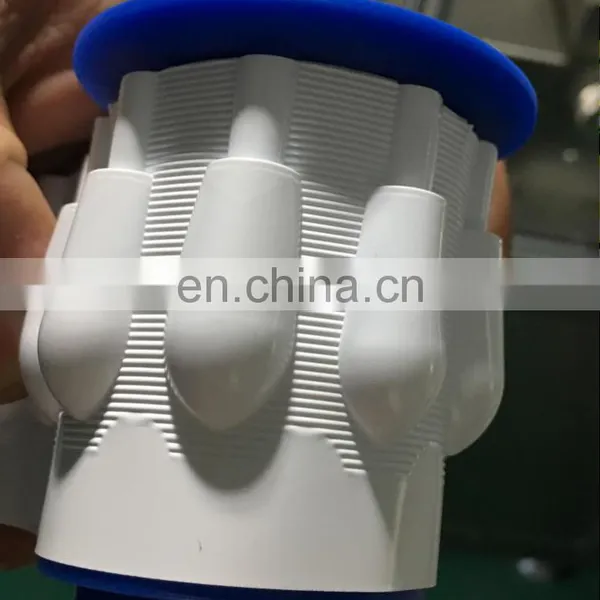

From automatic suppository shell forming, to the filling station of liquid medicine, Recirculating cooling set (liquid to solid),
Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will)

Packaging rang

-- Suitable for the production of special shape such as bullet head, torpedo shape and duck bill. -- Adapt material: synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc.

Product Paramenters

Model	SupLab-1	SupLab-3	SupLab-7	SupLab-10
Output	1000-1500 pcs/h	4500-5000 pcs/h	10000 pcs/h	15000 pcs/h
Single dosage	0.5—5g	0.5—5g	0.5—5g	0.5—5g
Dosage allowed	＜±2%	＜±2%	＜±2%	＜±2%
Packaging Film	PVCPE	PVCPE	PVCPE	PVCPE
Stirring tank capacity	20L	30L	70L	70L
Air pressure	≥0.6Mpa	≥0.7Mpa	≥0.7Mpa	≥0.7Mpa
Air consumption	1.2m³	1.5m³	1.5m³	1.5m³
Water consumption	50kg(recycling)	50kg(recycling)	50kg (recycling)	50kg (recycling)
Working voltage	3 phase 380V	3 phase 380V	3 phase 380V	3 phase 380V
Total power	4KW	5KW	7.5KW	9.5KW
Machine Weight	500KG	1000KG	2000KG	2500KG
Overall dimensions	230012001800mm	358713881828mm	530221201809mm	596521202,150mm

Advantages

PLC checking function: Through PLC online checking function to self-checking and alarm for running stoppage, and show the reason of stoppage in order that the operator remedy it in time.

Filling part within free static electricity system.

Agitation vat speed adjustment system

Cooling speed adjustment system

Cutting gains speed adjustment system

Notice: end product grains can be set 4/5/6/7gains. The machine can product PVC/PE

Product Highlights

01. The insertion type linear perfusion mechanism

-- The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.

02. Production capacity

-- The production capacity is 4500-5000 grain/hour.

-- The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.

03. Siemens PLC control system

-- The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment,
accurate temperature control and smooth operation.

04. Servo high precision filling system

-- Filling, freezing, sealing and other

production processes are fully automatic.

-- Filling piston by servo motor with stroke

rule, easy to observe, stable action, no jitter and splash phenomenon, load online adjustable, high precision and easy to adjust!

05. exclusive circulation of water cooling system

-- latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the
medicine is torn apart.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.-- The temperature is adjustable.

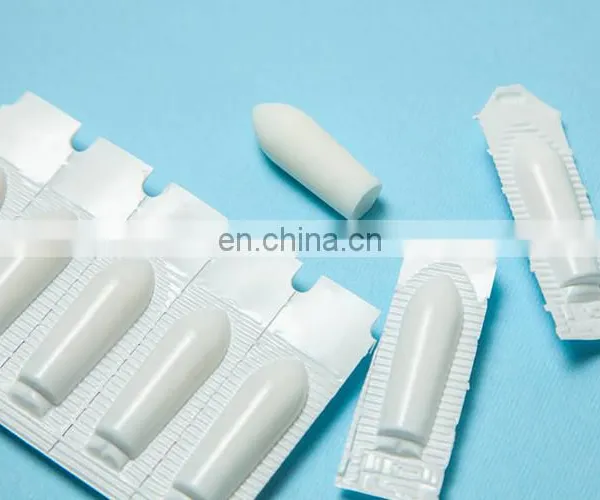

06. Finished product

The sealing seal should be well sealed, with neat appearance and good value of not less than 99.%.

If you want to know more, please send us an inquiry

Product Details

More Products

Company Profile

Our Company

- Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.

- LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
- We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.

Our Machinery Manufacturing Workshop

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.

Professional Business Team

Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.

Our Certificates

ISO, CE, SGS, BV Certified Company.

Packing & Shipping

All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.

FAQ

Q: How many different types of suppository machine you have? We are the starter for this product, what is your suggestion?

A: We have Four different type machine according to different production capacity requirement, They are SupLab-1, SupLab-2, SupLab-7 and SupLab-15. For the freshman in suppository field, we will suggest client to use our smallest model first, it is for both R&D and Production purpose. It comes with Forming, Filling, Colling, Sealing and Cutting. It is an Ideal starter machine.

Q: We have limit length in our workshop, but we need biggest production capacity machine, what is your suggestion?
A: We can make the machine as U shape which will save many space on length.

Q: Compare to the other manufacturer, what is your product advantage?
A: We manufacture the main parts like filling pump, filling cylinder and piston cylinder all by ourselves that we can achieve the best accuracy on the machine. We are the first manufacturer who does servo transaction on suppository machine, so we get matured technology in this field.

Q: Does you machine comes with Heating hopper and Stir Function?
A: Yes, this is our standard structure for the machine.
