Used In Lab Easy to Operate Lyophilizer Pilot Lyophilization Industrial Freeze Dryer

Name: Used In Lab Easy to Operate Lyophilizer Pilot Lyophilization Industrial Freeze Dryer
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.

If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.

Attention:
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

Product Description

Pilot freeze dryer is a small in-situ freeze-drying equipment. It is applied not only in pharmaceutical pilot workshop and small batch production but also in food or medicinal freeze-dry-ing process. Situ freeze-drying technology is one of advanced international constructer design which avoid the contamination during materials transfer and realize the dry sublimation automatically.Pilot freeze dryer is with rack heating programmable function and memory freeze-drying curve which convenient users to get the freeze-drying production technology. lt is divided into standard type and gland type.

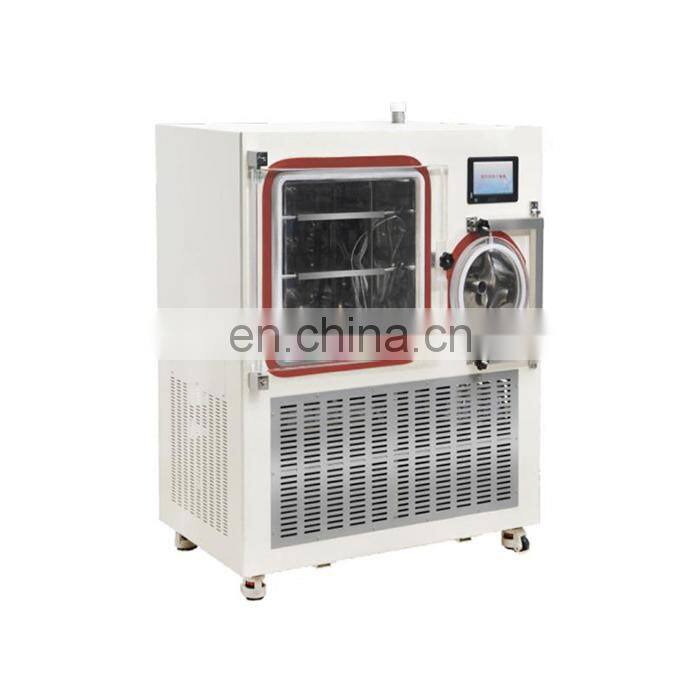

Standard Type

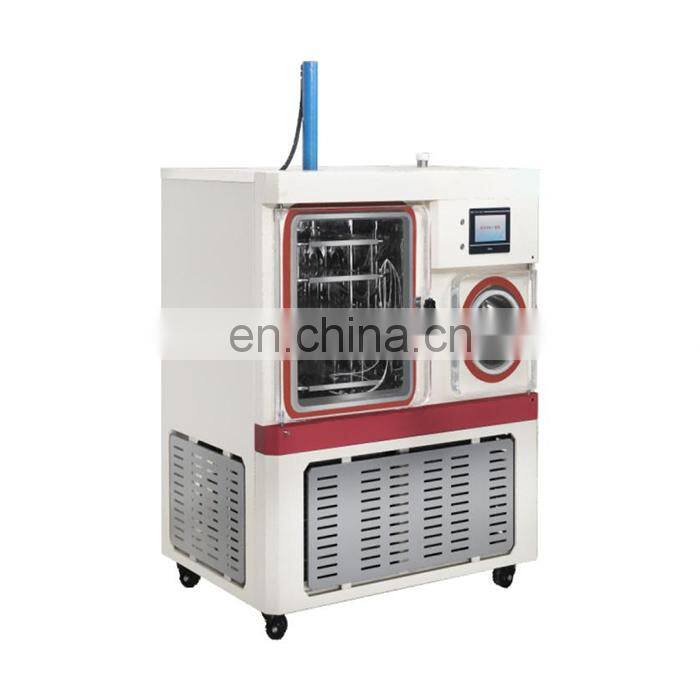

Gland Type

Technical Parameters

Model	LTDG-20S	LTDG-30T	LTDG-50S	LTDG-50T
Type	Standard	Top-press	Standard	Top-press
Shelf temp (℃)	-50 to 70				-50 to 70	-50 to 70	-50 to 70
Final condenser temp (℃)	-80				-80	-80	-80
Vacuum Degree (Pa)	<10				<10	<10	<10
Freeze drying area (m2)	0.24	0.3	0.5		0.5
Condenser capacity (Kg/24h)	6.5		6.5	10		10
Shelf specification (LWH mm)	30040020		30040020	30045020		30045020
Qty of shelf	2+1	3+1	4+1		4+1
Distance between shelves(mm)	145		145	90		90
Liquid material loading capacity (L)	4.5	7	10		10
Temperature uniformity (℃)	±1				±1	±1	±1
Cooling mode	Air cooling				Air cooling	Air cooling	Air cooling
Electric heater defrost	Y				Y	Y	Y
Cap seal method	N	Hydraulic pressure	N	Hydraulic pressure
Penicillin bottle Φ22	468	702	1040		1040
Penicillin bottle Φ16	864	1296	1944		1944
Penicillin bottle Φ12	1584	2376	3456		3456
Power supply (V/Hz)	220V/50Hz,60Hz	220V/50Hz,60Hz	220V/50Hz,60Hz，
Power supply (V/Hz)	220V/50Hz,60Hz	220V/50Hz,60Hz				380V/50Hz,60Hz
Exterior dimension (WxDxH mm)	12007501250/1600			12008501500/1850

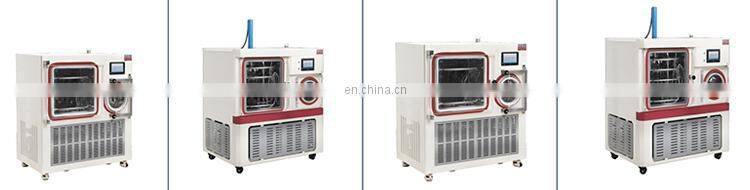

LTDG-20S LTDG-30T LTDG-50S LTDG-50T

Model	LTDG-100S	LTDG-100T	LTDG-200S	LTDG-200T
Type	Standard	Top-press	Standard	Top-press
Shelf temp (℃)	-50 to 70				-50 to 70	-50 to 70	-50 to 70
Final condenser temp (℃)	-80				-80	-80	-80
Vacuum Degree (Pa)	<10				<10	<10	<10
Freeze drying area (m2)	1		1	2		2
Condenser capacity (Kg/24h)	15		15	30		30
Shelf specification (LWH mm)	55048020		55048020	60060020		60060020
Qty of shelf	4+1	4+1	6+1	4+1
Distance between shelves(mm)	90		90	100		100
Liquid material loading capacity (L)	20		20	40		40
Temperature uniformity (℃)	±1				±1	±1	±1
Cooling mode	Air cooling				Air cooling	Air cooling	Air cooling
Electric heater defrost	Y				Y	Y	Y
Cap seal method	N	Hydraulic pressure	N	Hydraulic pressure
Penicillin bottle Φ22	2016		2016	4100		4100
Penicillin bottle Φ16	3944		3944	7800		7800
Penicillin bottle Φ12	7020		7020	14400		14400
Power supply (V/Hz)	380V/50Hz,60Hz			380V/50Hz,60Hz
Exterior dimension (WxDxH mm)	15008501600/1950			15008501600/1950

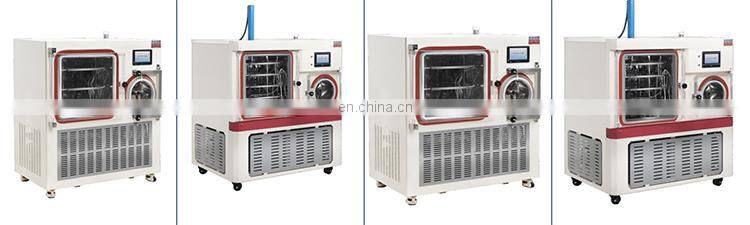

LTDG-100S LTDG-100T LTDG-200S LTDG-200T

If you have other models that need to be consulted, you can send an inquiry to us！

Features

Reliable Performance

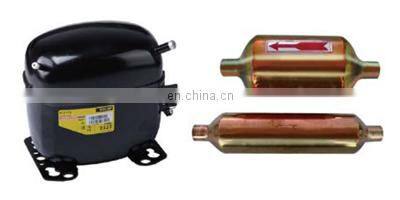

World famous compressor(SECOP),high performance. lubricating oil with Sole design ensure the compressor work stable in high and low environment which enhance the compressor life. World famous dry-filter to avoid moisture and Impurity went into refrigerant system.

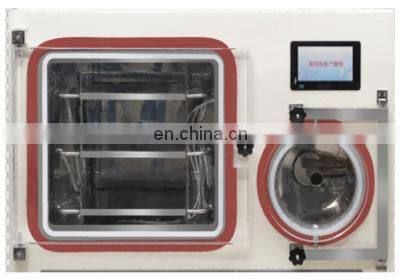

The rack is cooled and heated through Silicone oil.The temperature accuracy is ≤1°C,the refrigerant and heating are uniformity. In-situ freeze-drying design, avoid the contamination during material transfer. High transparent organic glass in Drying chamber helps users to observe materials changes. Cold trap and drying chamber are separately designed which is with high moisture capture and fast dry time.

Chamber is made of stainless steel, anti-corrosion and easy cleaning. Each rack is with temperature sensor and monitor the materials temperature changes in each rack. Square racks easy to cleaning With gas valve, can inject dry inert gas.

Humanized Design

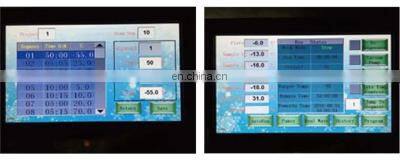

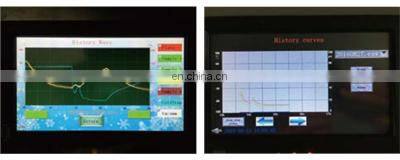

7” Colorful touch panel, can digital and curve display the real time status and historical data. Large FAT32 files system storage can store all data for more than 1 month. USB interface can download the freeze-drying data to U disk

Rack temperature can adjustable,controllable which helps to search for freeze-drying technology. It is two types manual and automatic type.

The Automatic process can setting 36 programs, each programs can set 40 temperature range,it can meet different requirements on freeze-drying process.

●Automatic frost

●Optional Eutectic point test function helps users to control materials’sublimation point

●Optional Freeze drying flask

Application Field

Related Products

Company Introduction

Our Company

China Ruian City LeadTop Pharmaceutical Machinery Co., LTD (LTPM) is recognized as a major pharmaceutical equipment manufacturer and supplier. Our company is founded in Ruian, China, with a base of 18 years of prior experience in the pharmaceutical industry.
This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.

Our Machinery Manufacturing Workshop

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.

Professional Business Team

Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.

Cooperation

More than 200 companies around the world have had close cooperation with us

Our Certificates

ISO, CE, SGS, BV Certified Company.

Client Feedback

Basically, customers who have worked with us will give us a good review

Packing & Shipping

All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.

FAQ

Q: What price terms you offer? A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request. Q: What payment terms you take? A: TT, LC, other terms are also workable. Q: Will you help with installation and stuff training? A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory? A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you! Any other doubts about our machine, please feel easy to contact with us.
