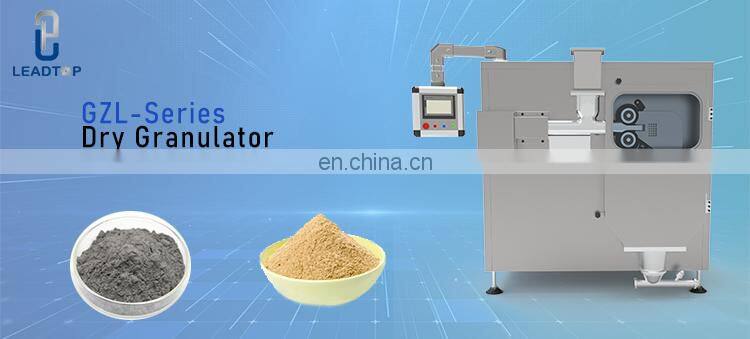

2021 Hot Products 5-year Warranty Pharmaceutical Dry Granulation Roller Compactor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Automatic Dry Granulating Machine Limestone Dry Granulating MachineNegotiableMOQ: 1 -
GZL-Series Dry Granulating Machine High Efficiency Automatic Pharmaceutical Pellet Powder Granulating MachineNegotiableMOQ: 1
-
2021 Hot Selling Five-Year Warranty Grapefruit Orange Fruit Food Grade Freeze DryerNegotiableMOQ: 1
-
Industrial Food Grade Pineapple Ginseng Fruit Passion Fruit Freeze Dryer On SaleNegotiableMOQ: 1
-
Factory Wholesale Vacuum Coconut Cocoa Beans Fruit Vegetable Freeze Dryer PriceNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
--- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
--- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
--- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
--- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
--- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
Working Principles
The production process is to mix the dry powder materials by the ingredients, and add them to the upper hopper by a special feeding device (pneumatic or motorized), and send them to the pressure chamber through the screw conveyor.
The two high pressure pressing wheels press the material into high density slices. The density slices are granulated to
the demanded size by a two-stage granulation system.
Purpose
This machine is widely used in medicine, food, chemical and other fields.

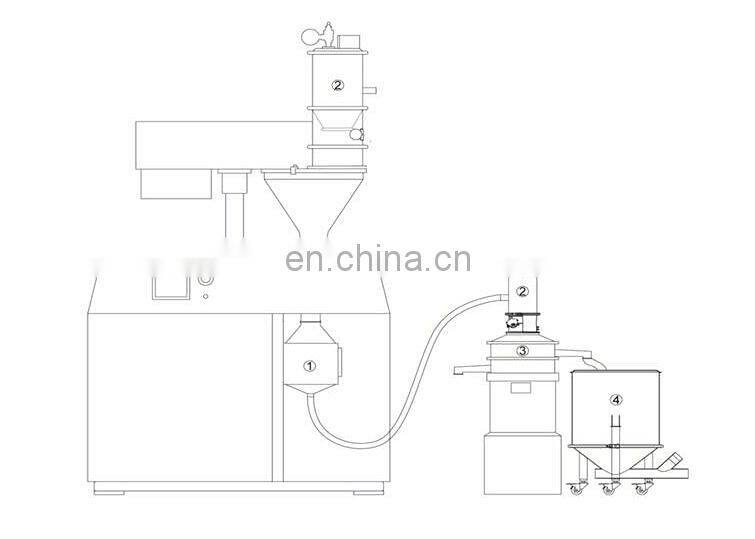

1.granulation structure
2.vacuum Powder Feeder
3.shake sieve
4.material barrel
Technical Parameters
Roller Size (mm) | 160×60 |
Particle Size (mm) | 0.2-4.0 |
Production Capacity (Kg/h) | 10-120 |
Maximum Molding Pressure (Bar) | 250 |
Screw Feeding Speed (rpm) | 25-190 |
Roller Speed (rpm) | 1-23 |
Rotating Speed Of Prefabricated Granulation (rpm) | 10-58 |
Refined Granulation Speed (rpm) | 10-82 |
Screw Feeding Motor Power (Kw) | 4 |
Roller Motor Power (Kw) | 5.5 |
Prefabricated Granulation Motor | 0.55 |
Refined Granulation Motor Power | 0.75 |
Dimensions (mm) | 1600×1200×1800 |
Machine Weight (Kg) | 1700 |
For More Model Parameters, Please Send Inquiry To Get
Features

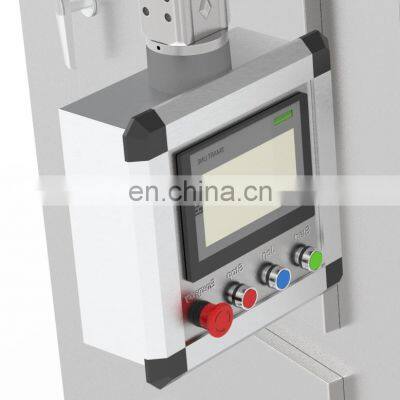

1. It adopts PLC and touch screen control, frequency converter and other systems. The speed can be adjusted freely within the specified range, and the operation is convenient and stable.
4.The surface of the special stainless steel pressure roller is specially treated by gas nitriding technology. The surface of the roller has strong wear resistance and fatigue resistance, and has good corrosion resistance.
5.The roll water circulation cooling can be cooled by ordinary water cooling and forced cooling of the ice machine of the refrigerator to avoid the sticking phenomenon of the material.
6.The introduction of imported brand advanced hydraulic system, simple and reliable operation, high degree of automation.
7.The machine can be equipped with an oscillating/vibration sieve, water chiller and vacuum feeder.
2.The advanced fault detection device will automatically protect and alarm when the working hydraulic system is abnormal or the host is overloaded.
3.The feeding structure of special stainless steel conical screw or nylon vertebra screw ensures efficient feeding.
4.The surface of the special stainless steel pressure roller is specially treated by gas nitriding technology. The surface of the roller has strong wear resistance and fatigue resistance, and has good corrosion resistance.
5.The roll water circulation cooling can be cooled by ordinary water cooling and forced cooling of the ice machine of the refrigerator to avoid the sticking phenomenon of the material.
6.The introduction of imported brand advanced hydraulic system, simple and reliable operation, high degree of automation.
7.The machine can be equipped with an oscillating/vibration sieve, water chiller and vacuum feeder.
Machine details
Feeding Mechanism
1. The screw feeding mechanism is composed of a feeding port, a screw feeder (a special screw rod can be selected for special materials), and a lifting mechanism.
2. The upper of the feed port can be connected with the vacuum feeder (optional), and the material level sensor on the hopper can monitor the material in real time.
3. The screw feeder can pre-press and exhaust material to a certain extent. The screw feeder is equipped with a mixing rod for scraping off the material accumulated on the inner wall of the hopper. The gas generated during the extrusion of the screw feeder is discharged through the upper exhaust port.
4. The purpose of the screw feeder is to transfer material and pre-press.
5. The speed of the screw feeder can be adjusted by the inverter.
6. Rotate the lifting knob during work, lift the screw feeding mechanism, higher than the feeding base, rotate 90 degrees, descend the feeding mechanism to align and contact with the feeding substrate.

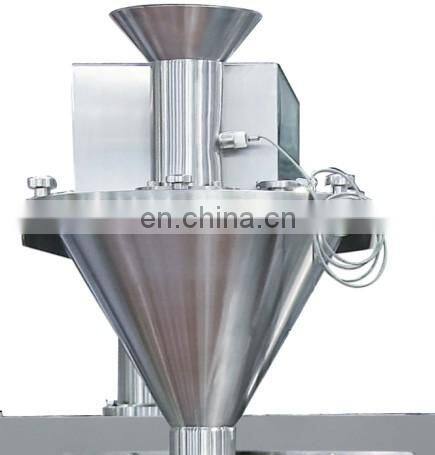

Screw Feeder
Special screw rod

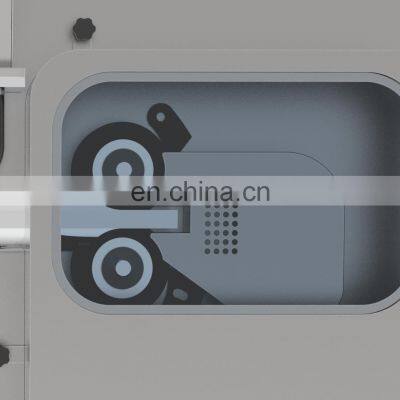

Rolling Mechanism
1. The rolling mechanism consists of two mutually horizontal pressure rollers, and the lower pressure roller can move horizontally along the slider.
2. The rolling mechanism extrudes the material conveyed by the screw feeding mechanism into a sheet of a certain thickness and feeds the sheets into the secondary granulation mechanism.
3. The material feeding action between the pressure rollers is substantially affected by the surface condition of the pressure roller (the nature of different materials, the surface of the optional pressure roller has smooth, textured or straight lines). The two scrapers scrape off the hardened agglomerates on the press rolls.
4. The pressure roller is driven by the gear motor, geared, and its rotation speed can be controlled by the inverter.
5. Through the hydraulic cylinder, the hydraulic system can maintain the preset pressing pressure to ensure the continuous and consistent rolling pressure, thus maintaining the density of the material and the stability of the sheet size.
6. In order to protect the operator and the sealing process of the rolling process, a sealing protective cover is arranged outside the rolling mechanism, and a transparent plexiglass plate is arranged in front to observe the roll forming condition of the material.

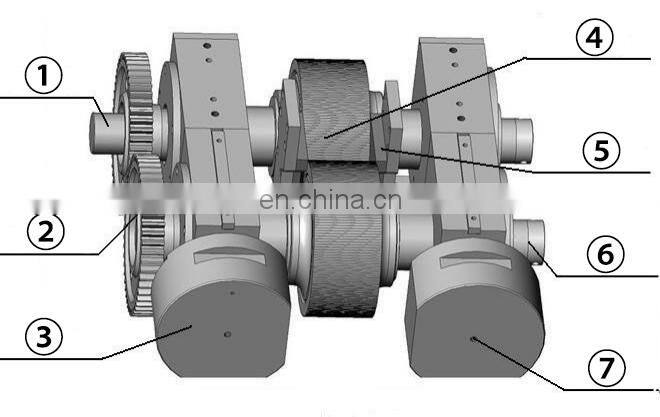

1.Drive shaft
2.Transmission gear
3.Hydraulic cylinder
4.Extrusion wheel
5.Side sealing board
6.Cool water connector
7.High pressure pipe connector
Roller Cooling
The roller has a water cooling mechanism: an external cold water source or an circulating water chiller (optional) can be used to cool the roller.

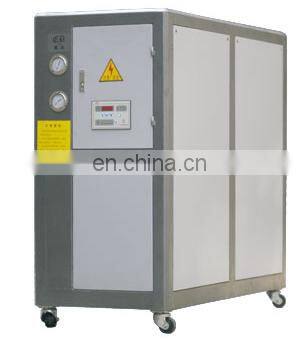

Water Chiller (optional)
(should be installed in the auxiliary facility room)

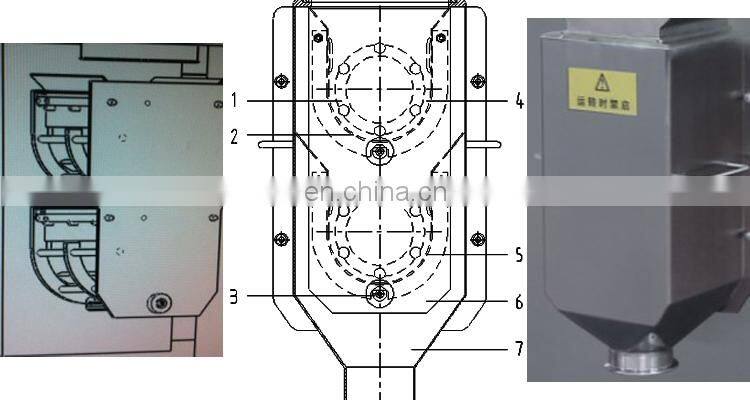

Secondary granulation mechanism
1. The secondary granulation mechanism is used to form the sheet pressed by the rolling mechanism into fine particles. The first-stage granulation is subjected to coarse crushing of the pressed material pieces, and the second-stage granulation performs fine granulation on the coarse particles after the first-stage granulation. The particle size of the granules can be determined by appropriate selection of the screen.
2. The secondary granulation mechanism is located under the protective cover. After the front fixing plate is removed, the granulating knife and the sieve net can be removed for maintenance.
3. The gap between the granulating knife and the sieve net can be adjusted by the eccentric shaft.
4. Drive the granulating knife by reducer motor. The change of production capacity is achieved by the frequency converter controlling the speed of the granulating knife.
1 granulating knife 2 sieve net 3 eccentric shaft
4 primary granulation mechanism 5 secondary granulation mechanism
6 fixed plate 7 protective cover

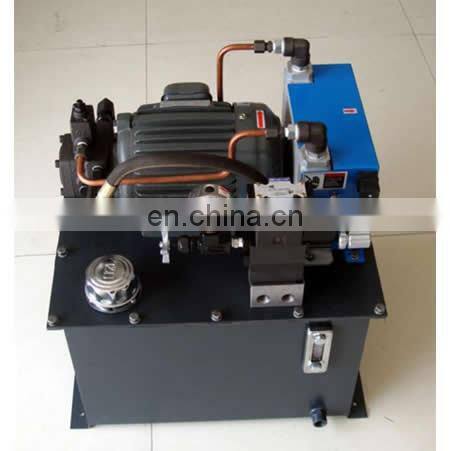

Hydraulic system
1. The hydraulic system produces the hydraulic support force required for linear transfer to the press rolls. The hydraulic support force can be adjusted as a variable within a limited range.
2. The maximum adjustable hydraulic support force is 10Mpa.
3. The hydraulic station is composed of hydraulic station, pressure gauge, solenoid valve, pressure gauge switch, diaphragm accumulator, hydraulic cylinder and hydraulic sensor.

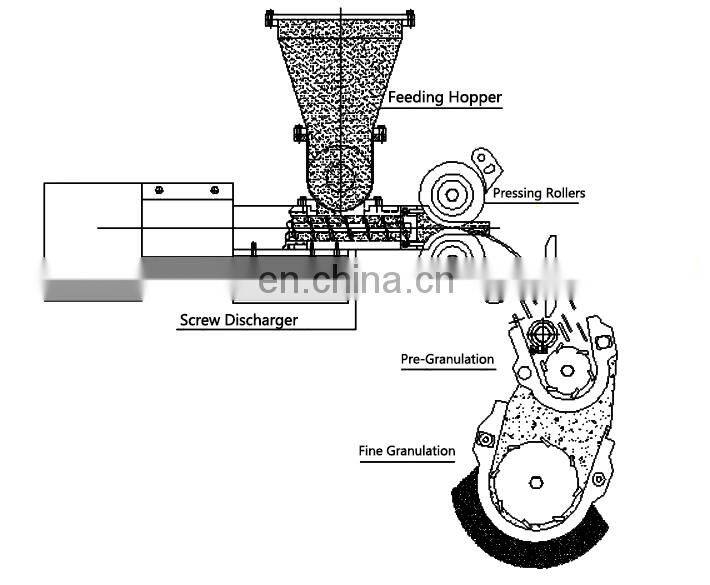

GZL series dry granulator Working principle diagram
Final Product
This machine is a brand new granulating equipment independently researched and developed by our company based on domestic and foreign market demand, fully absorbing foreign advanced technology and our company's existing products. The machine has the characteristics of compact structure, simple process, good air tightness, easy adjustment, easy disassembly, cleaning and maintenance, etc. It can effectively carry out dry granulation experiments and pilot tests on materials, and provide reasonable process parameters for later batch production.
