Food powder rotating biconical vacuum dryer

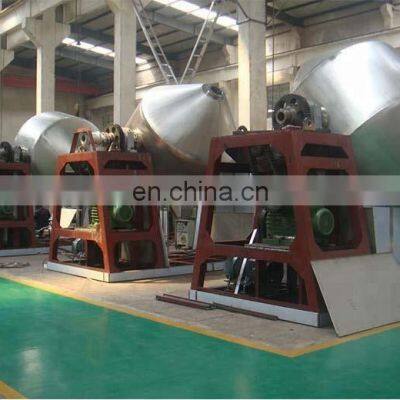

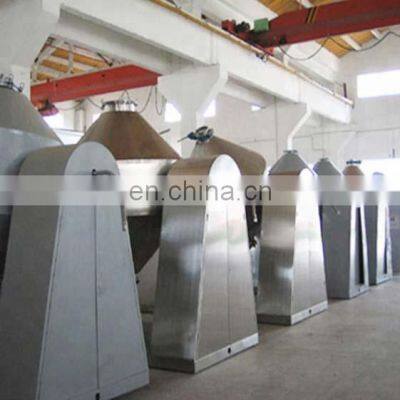

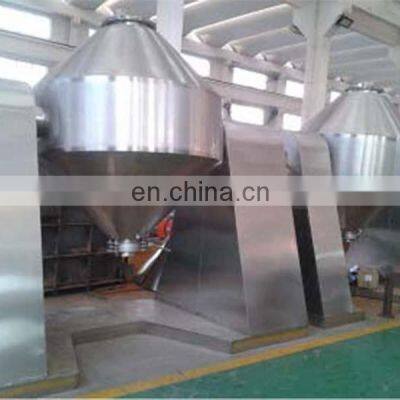

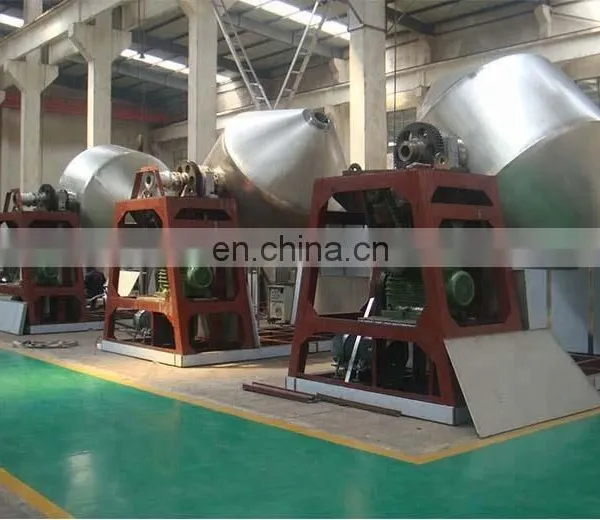

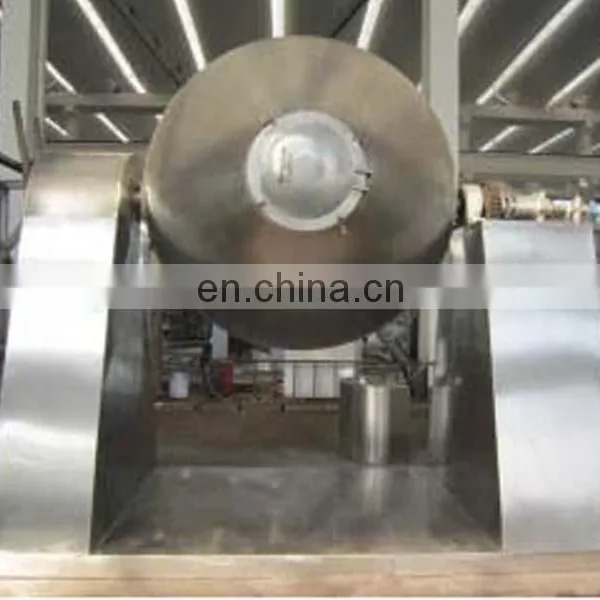

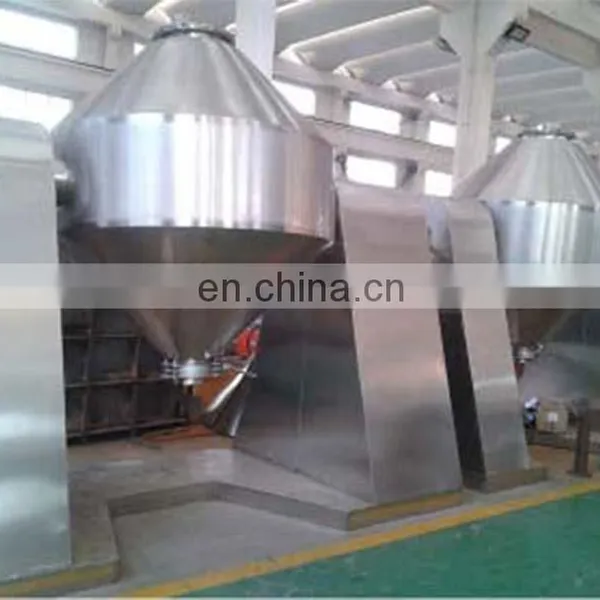

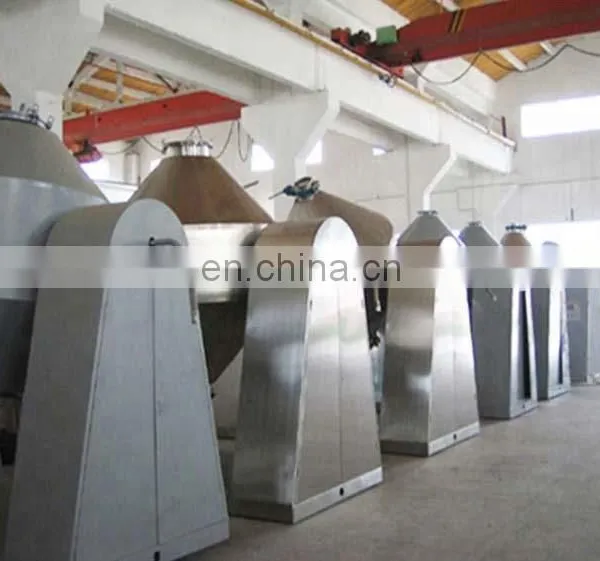

SZG double cone vacuum dryer is a new type of drying equipment which combines similar product technologies at both home and abroad. This rotary vacuum dryer possesses a belt and chain two-stage elastic connection modes. With a low center of gravity, this drying machine can operate smoothly. Heating medium and vacuum system adopt reliable mechanical seal or rotating joint, so as to avoid defects such as the regular packing seal are easy to leak. On this basis, we modify this double cone vacuum dryer. It not only embodies the humanized design concept but also meets the GMP standards.

Biconical rotating vacuum dryer is the dryer suitable for ultra vacuum drying of all kinds of humid, crystalline and amorphous products.

Fully heated and insulated drum, rotating at low speed under high vacuum, continuously renovating the product in contact with the heated walls.

In order to achieve rapid drying at low temperatures, including the drying of deep pores, in a way that does not damage the product, specialized drying technology – vacuum drying – must be used.

The complete product will move into the chamber. The pressure reduces for so long the saturated steam tension is reached. The water will discharge through the vacuum chamber from that point. The raw material is charged in batches & is subjected to indirect heating while at the same time undergoing rotary motion of the cone assembly. The double conical shape of the dryer ensures efficient circulation of hot liquid heating media. Drying takes place when heat flows from the outer cone through a jacket, and vacuum is applied in the inner cone. The drying operation is based on the principle that water or other volatile product moves from a zone of low pressure. This is accomplished by warming the product to be dried to raise the vapor pressure of the absorbed or free liquid by vacuum or by sweeping it with Air or Nitrogen current. Thus the essential conditions for effective drying are achieved by uniform heat transfer throughout the batch and rapid removal of the vapor. The vacuum is applied gradually with PLC control by throttling.

Most times the specific heat from the evaporating product is lower than from the base material. This material ensures that the temperature will drop slowly or even not. The pressure (vacuum) will achieve any part of the product so the moisture will evaporate. For a short period there results in a homogeneous temperature.

1. This rotary vacuum dryer has an advanced design, a simple internal structure, convenient to clean and easy to handle.

2. The tubes of heating medium and vacuum system are built in the rack in order to prevent artificial damage and difficult clean.

3. The outer wall and rack sealing plate adopt polishing treatment, and the inner container adopts mirror-polishing treatment.

4. The materials in the double cone vacuum dryer can be rotated due to the revolution of the machine, which can minimize material water content (≤0.5%).

5. The materials will not stick to the wall of the container. With big drying rate and energy saving, this rotary vacuum dryer can uniformly and sufficiently dry the materials.

6. Condenser and recycling tank are equipped for recovering organic solvent.

7. Our double cone vacuum dryer has three types of heat source, including steam, hot water, and conduction oil.

SZG double cone rotating vacuum dryer is applicable for drying and mixing powder and granular materials in the pharmaceutical, food, chemical, dye and other industries. It is especially suitable for the following materials:
1. Thermo-sensitive materials that cannot withstand high temperature
2. Easily oxidized and dangerous materials
3. Materials whose solvent should be recovered and materials of poisonous gas
4. Materials required low residual volatile content
5. Materials with requirements on crystal shape
