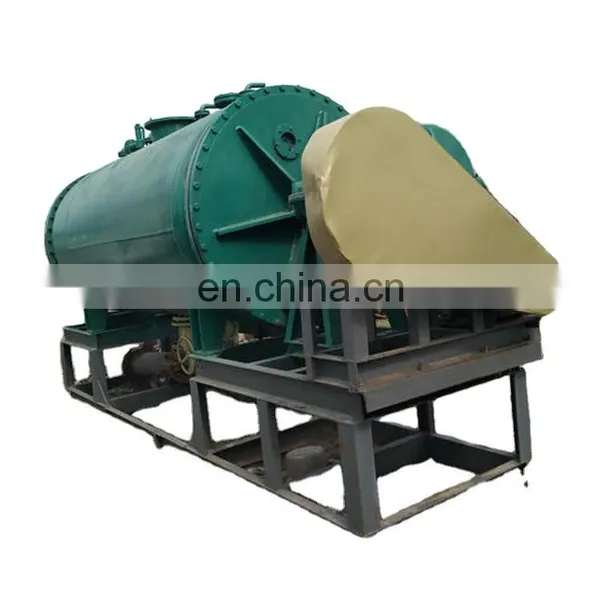

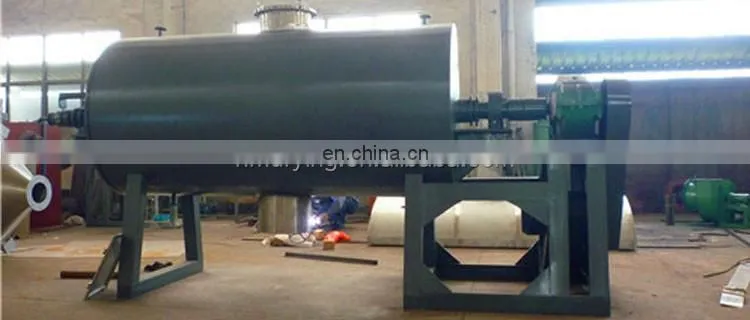

ZB/ZP High Efficient Low Cost Vacuum Harrow Rake Dryer for phthalocyanine blue/cupc/BGS

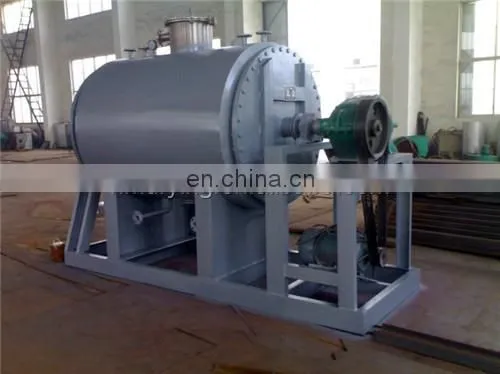

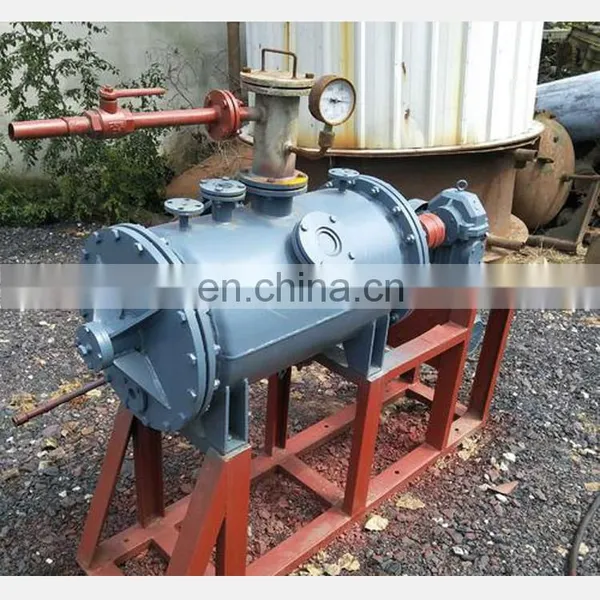

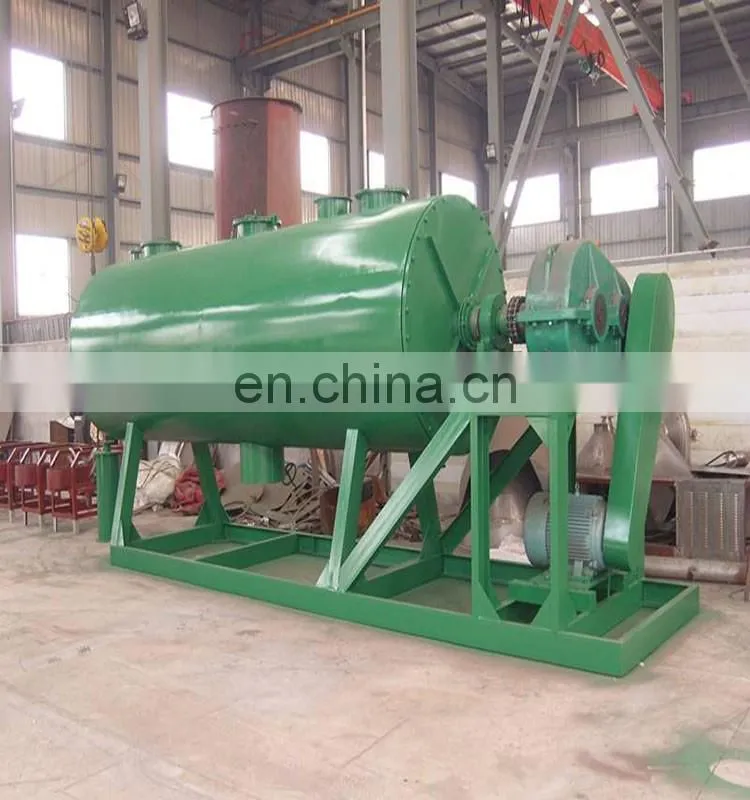

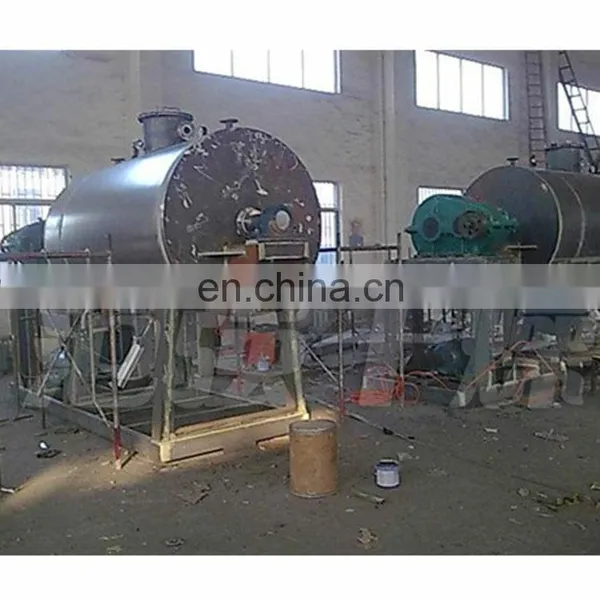

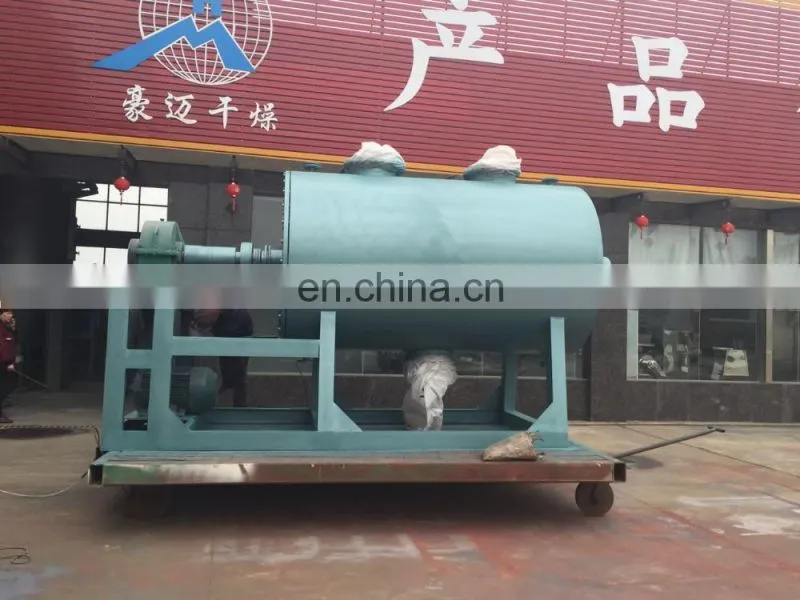

ZB/ZP Vacuum Harrow Dryer is an innovation horizontal batch-type vacuum dryer improved on the basic of introduced technology of
harrow dryer.
The moister of wet material will be evaporated by heat transmission. The stirrer with blade will remove material on hot surface
and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.
FEATURES
1. This dryer adapted the interlayer heating technology. The heat conducting area is large and the heat efficiency is high.
2. This dryer is equipped with stirring device; it keeps the raw material in a continuous circling status inside of the cylinder so the heating uniformity is improved greatly.
3. With the stirring functions, the dryer can easily dry the pulpiness, paste-like mixture or powder materials.
APPLICATION
This dryer is widely used in pharmaceutical industry, foodstuff industry, chemical industry and etc. Especially suitable for the following materials:
1. Pulpiness, paste-like mixture or powder materials.
2. Thermal sensitive material which required to be dried at lower temperature.
3. Materials that are easy to oxidize or explode and the material that have strong irritative or toxic.
4. Materials that required recovering solvent.
Principle:

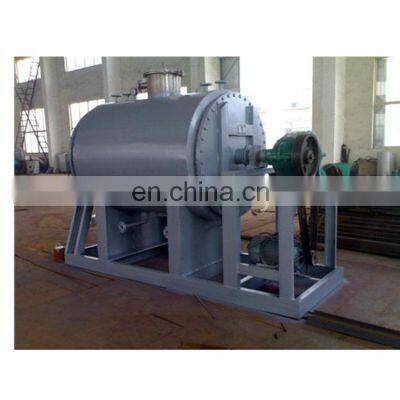

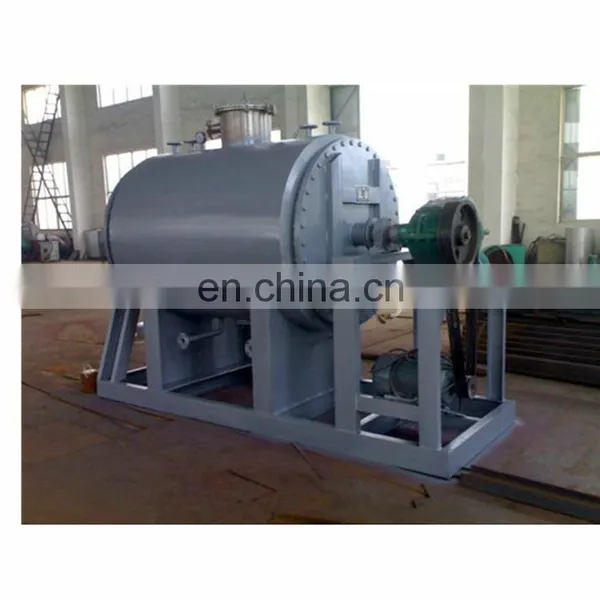

ZB vacuum harrow drying equipment is new type high-efficiency horizontal vacuum drying equipment. It adopts jacketed structure, and the jacket can be heated by steam, hot water or conduction oil. The jacket transfers the heat to the inner wall of the shell via conduction or radiation. The dried materials are added into the dryer through an opening in the middle of the machine shell. Constant stirring of the revolving harrow causes the materials move back and forth. The surface contacting with the inner wall of the shell constantly updates, resulting in high drying rate and uniform finished products.
Main Features
(1) the material is even dry; avoid oxidation, overheating; can get very low moisture content of the product, Packaging can be done without crushing operation.
(2) the evaporation intensity is high, generally can evaporate 2-10kg (water) / m2 x h.
(3) no air intervention, condenser load is very small, can be easily recycled material solvent.
(4) the solvent vapor entrainment is filtered by the bag filter without environmental pollution.
(5) energy consumption: General evaporation 1kg water vapor 1.3-1.5kg.
(6) the discharge valve is pneumatic short diameter ball valve, discharge convenient, and no accumulation phenomenon.
(7) the hot medium can be used water vapor, heat transfer oil, hot water.
Machine Parts
Name: Stainless steel finishing paddle shaft
Brand: Haomai
Original: China
Well polished and welded harrows, or called rakes. High hardness, Super wear resistant
High vacuum seal:
Packing seal, Machinery Seal, Large heating area and low energy consumption
Motor,Reducer
ABB imported motor, SEW imported reducer, Powerful transmission, efficient and durable, Safe and stable, small voice.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

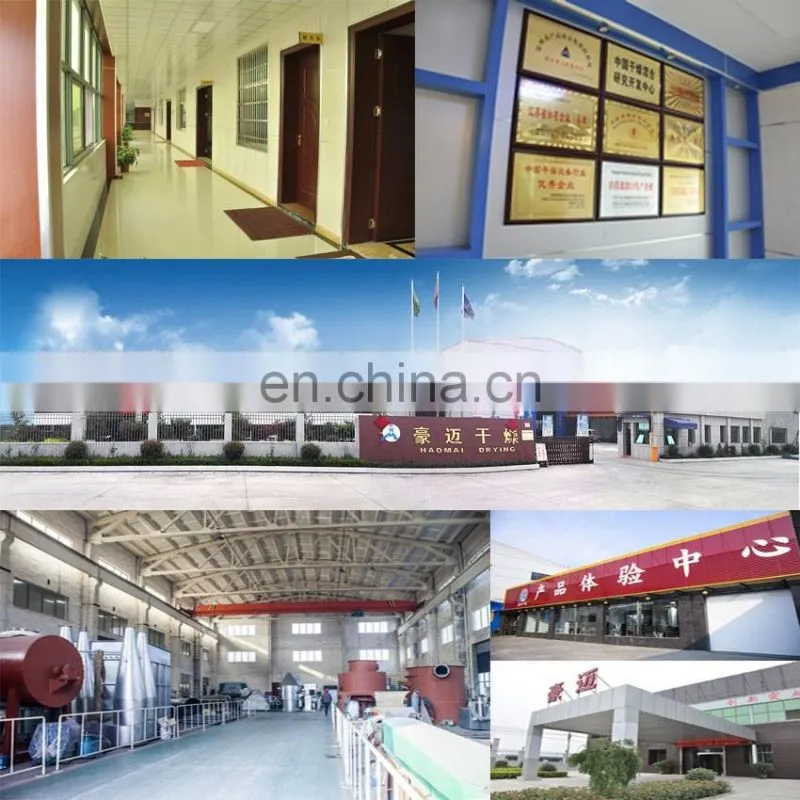

* View our Factory.

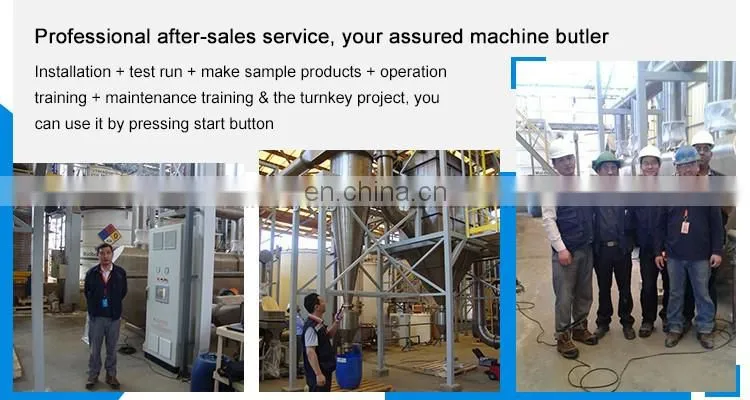

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging |
||
Size |
12032mm (L) * 2352mm (W) * 2393 (H) |
|
Weight |
3.2 T |
|

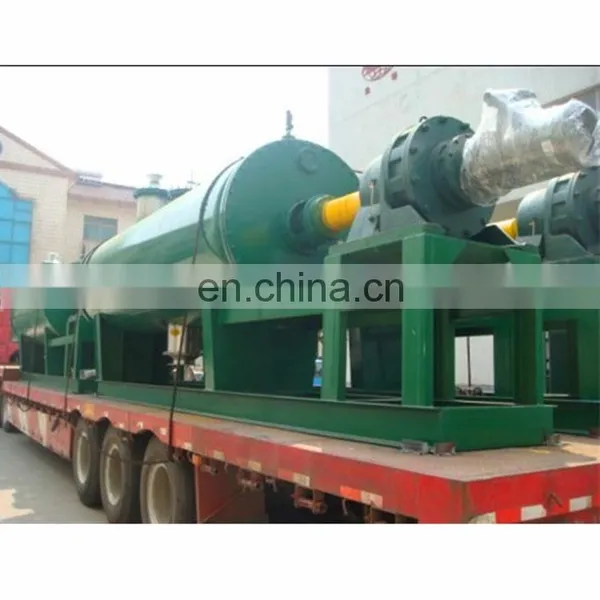

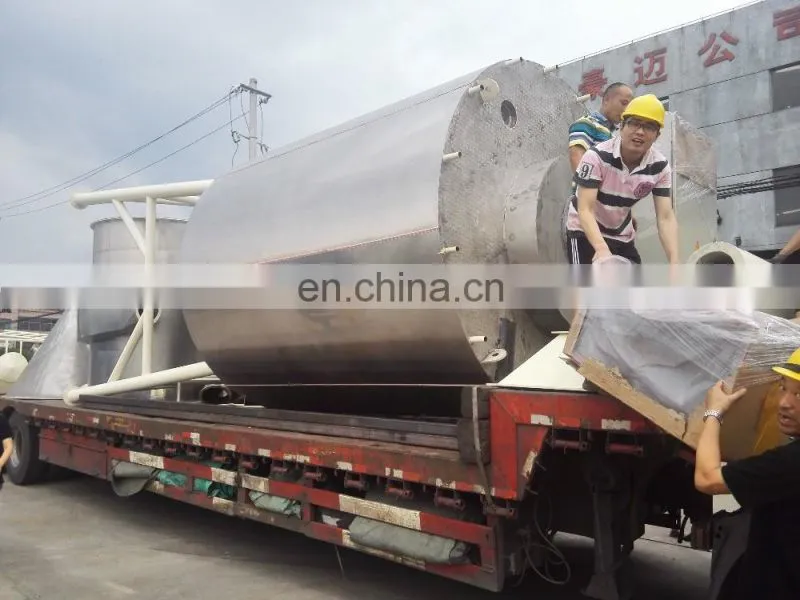

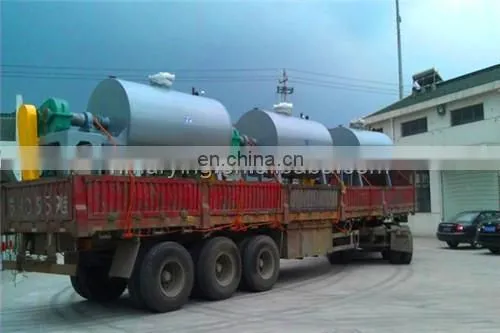

Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
