led t5 tube and led t8 tube for grille light panel
grille light panel replaced with led t5 tube and led t8 tube
The led t5 lamp tube and the t8 lamp tube are used for the grille light panel. Although the appearance and size are not very different, there are differences in actual use. After all, the length of the LED T5 lamp will be shorter, while the power of the ledT8 lamp will be larger. In terms of brightness, ledt8 lamps are higher than LEDT5 lamps.
One/What is the difference between ledt5 lamps and t8 lamps
1. The appearance is different:
In appearance, T5 is small and thin, while T8 is thick and long.
2. Different energy saving:Compared with T8, T5 saves 50~40% of energy.
3. The lifespan is different:The lifespan of T5 is nearly 1 times longer than that of T8.
4. Different sizes:
T5 straight tube fluorescent tube φ16mm (5/8 inch), T8 straight tube fluorescent tube φ26mm (1 inch); different brightness:
T8 is brighter than T5, and the larger the diameter, the higher the brightness.
With the development of science and technology, the technology is updated, and the T5 lamp can now replace the T8 fluorescent lamp, and the illumination, life and stability far exceed the T8 fluorescent lamp. The most important thing is energy saving,, the enterprise benefits and saves energy.
5. Different color rendering:
T5 fluorescent lamp has good color rendering performance. Because it adopts rare earth tricolor phosphors configured with primary colors, the color rendering index Ra can reach more than 80. And T5 fluorescent light has high efficiency. The luminous efficiency of T5 fluorescent lamp with a correlated color temperature of 2700K is about 100LM/W, while the luminous efficiency of ordinary T8 fluorescent lamp is about 70LM/W, and the luminous efficiency of ordinary T12 fluorescent lamp is about 60LM/W.
6. Different pipe diameters:T8 pipe diameter 25.4mm, T5 pipe diameter 16mm.
Two/ Which of the led t5 and t8 lamps is bright
1. For fluorescent lamps, the t5 tube is on. T is the diameter of the lamp. Each T is 1/8 inch. One inch is equal to 25.4 millimeters. Then the diameter of T8 tube is 25.4mm, and the diameter of T5 is 16mm. Therefore, the thinner the tube, the higher the efficiency, which means that the same wattage emits more light.
2. The ledT5 lamp is a high-efficiency lamp, so it is much larger than the ordinary T8 lamp.
Three, t5 lamp wiring diagram
1. For the wiring of ordinary T5 lamps, due to the use of ballasts. Ballast starters need to be connected in series. For electronic ballasts, there are 6 wires. The 220v input terminal is connected to the mains. The other 4 wires are connected to the pins of the lamp head respectively.
2. For the LEDT5 lamp, the wiring is relatively simple. One end of the zero wire and the other end of the live wire are connected to any line of the lamp holder. Ballast is no longer required
Four, led lamp price
Including split T8led lamp price: the length and power are large, the price will increase
The price of the one-piece T8led lamp tube: the size of the shell is large, and the price will be more expensive than the one-piece type
Including the price of split T5led lamps: the output is lower than that of T8, but the price of T5 lamps is higher than that of T8
The price of one-piece T5led lamp: like T8 lamp, the price of one-piece is higher than that of split-type
Five, led grille lights

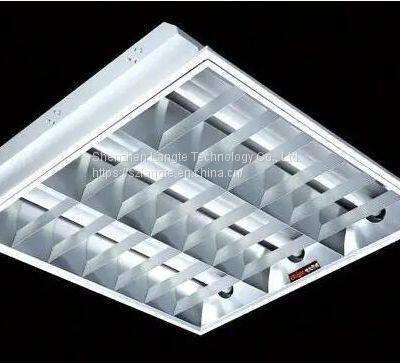

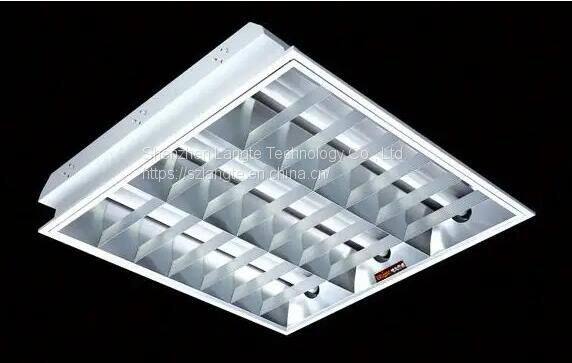

1. Mirror aluminum grille light
The grille aluminum sheet is made of mirror aluminum, with a deep arc design, and the reflection effect is better. The chassis is made of high-quality cold-rolled plate, and the surface is treated with phosphating spraying process, which has good anti-corrosion performance and is not easy to wear and fade. All plastic fittings are made of flame retardant material.
2, organic plate grille lights
Imported organic board material is used, which has good light transmittance, uniform and soft light, good fire resistance, and meets environmental protection requirements. The chassis is made of high-quality cold-rolled plate, and the surface is treated with phosphating spraying process, which has good anti-corrosion performance and is not easy to wear and fade. All plastic fittings are made of flame retardant material.
3. Grille light size
The common specifications of T5 grille lights on the market are 2*14W, 2*21W, 3*14W3*21W, and the size? There are 600*600, 600*1200MM. If you replace it with LED tubes, the power will be smaller and more energy efficient.
The specifications of T8 grille lights are 2*20W, 2*30W, 3*20W, 3*36W, and the size? There are 600*600, 600*1200MM, 300*1200.
