Rotating led tube double row lamp beads R17DFA8G13 to change the light-emitting angle-Lant Lighting
1. Rotating LED tube
The LED fluorescent tube can be rotated 180 degrees, and the 1.2-meter T8 can be rotated 180 degrees. The LED lamp tube with the rotating lamp head includes the lamp tube, the light source board fixed in the lamp tube, the rotating lamp head sleeved on both ends of the lamp tube, and the inside of the lamp tube. A driving power supply inside a rotating lamp head.
There are three kinds of lamp heads. One is to cover the cover without screwing; one is to screw one screw. The other is to screw 2 screws. Both can be rotated 180 degrees.
, Therefore, the light-emitting angle of the lamp can also be changed arbitrarily.
2. Rotating LED tube double-row lamp beads
1). Rotate the LED tube, use G13 rotary plug, the angle of the tube is rotated 180 degrees, that is, the light-emitting surface can be adjusted arbitrarily to meet different angles of lighting
2). Double-row LED lamp tube, there are double lamp boards, double-row LED lamp bead,
One of its purposes is that the power of the LED tube can be increased. Generally, it is 18w, but the power of the double-row LED tube can be 36w-20w. The aluminum material is large, the heat dissipation is good, it is safe, and the brightness can reach 3600lm-4500lm. .
The second purpose is to make the light-emitting angle larger. Even if it is not rotated, the light-emitting angle is 270 degrees, which improves the defect that the light-emitting angle of ordinary LED tubes is only 120 degrees.
3. Common lamp holder R17D/FA8/G13
1). Lamp holders include T5, T8, G23, G24, 2G7, 2G11, GX23, GX53, G10Q, GX10, 2G10, 2GX13, E14, E27, etc.; lamp holders include: 2G7, 2G11, G23, G24, etc.

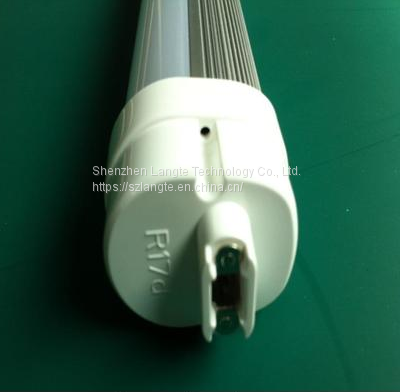

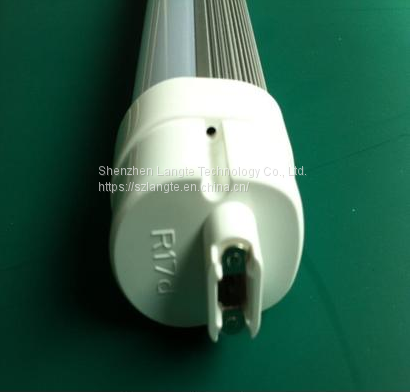

R17D lamp holder, R17D male and female lamp holder.
R17D t8 fluorescent tube 18w R17D fluorescent tube R17D1.2 m fluorescent tube 18w fluorescent tube

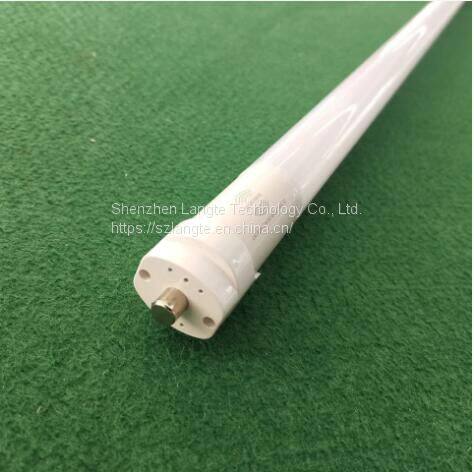

2).FA8 lamp holder
Product use: used for indoor lighting. Design points of appearance design: the overall shape design of the product. A picture or photo that can show the main points of the design: a three-dimensional diagram of the design. Also known as a single-needle T8 plug, it is a cylindrical single-needle, which can only be energized with two needles.
3. G13 plug, the common T8 plug, each plug has two needles, and the distance between the needles is 13mm. It is very versatile. It can be energized with one G13 plug. That is, single-ended energization. Realize that both plugs are energized. That is, both ends are energized. The connection method is more flexible.
4. Change of light-emitting angle
1). Ordinary G13 plug, using double-row LED lamps, can directly obtain a 270-degree light-emitting angle
2). Ordinary rotating G13 plug can achieve a 180-degree light-emitting angle.
3). Most of the foreign trade exports are these lamp holders, among which FA8 and R17d are special, and are generally exported to some special regions or countries.
Most of the materials are PC, ABS plastic and metal conductive pins.
Model |
Power |
Input Voltage |
Brightness |
Chip |
CRI |
Color Temp. |
Power Factor |
Lamp Effi. |
Beam Angle |
Length |
Packing |
T8 |
8W 10W |
85-240V/AC (50-60Hz) |
110-175lm/w
|
San'an or Epistar |
80Ra |
3000k-8000k |
>0.95 |
>0.91 |
120deg/clear 140deg/frosted |
2ft |
25pcs/CTN |
T8 |
13W |
3ft |
25pcs/CTN |
||||||||
T8 |
18W 20W |
4ft |
|||||||||
T8 |
22W 30W |
5ft |
