Automatic Pharmaceutical Pill Tablet Blister Packing Cartoning Machine Production Line With Hot Melt Glue Device
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1200 Blisters / Hour High Speed Automatic Perfume PVC Blister Packaging MachineNegotiableMOQ: 1 -
Automatic Honey Blister Packing Machine With Video Technical SupportNegotiableMOQ: 1
-
Wide Range of Application Alu Alu Capsule Tablet Blister Packing MachineNegotiableMOQ: 1
-
Automatic Liquid Honey Blister Packaging Machine With Easy OperationNegotiableMOQ: 1
-
High Quality Automatic Small Pharmaceutical Capslue Blister Packing MachineNegotiableMOQ: 1
Recommend Products
Products Description
Blister Packing Machine and Cartoning Machine
with Hot Melt Glue Device

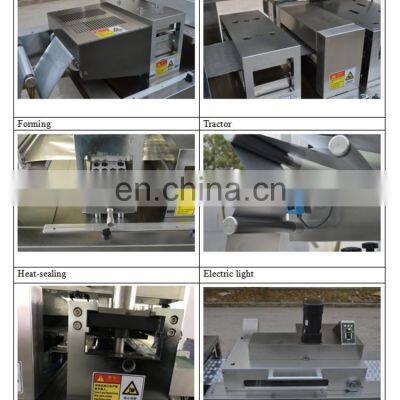

Blister Packing Machine Technical Parameter
Cutting frequency (standard) |
20-50times/min (Alu-PVC) 15-25times/min(ALU-ALU) |
Max. forming area and depth |
250X110X15(ALU-PVC) 250X110X12(ALU-ALU) |
Range of travel |
30-120 |
Packaging material Φ75 |
PVC（0.15～0.4）X 270X(Φ400) mm PTP（0.02～0.15）X 270 X(Φ300)mm
ALU- ALU FOIL（0.16-0.2）X 270 X(Φ400)mm
Paper (50-100)g/㎡X270X(Φ300)mm
|
Power |
380V 50Hz 8kw |
Air compressor |
≥0.25m³/min (self-provided) pressure: 0.6～0.8Mpa |
Mould cooling |
Tap water or circulating water consumption: 60-100L/h |
Dimension（L * W * H） |
3550 * 900 * 1900 (mm) |
Weight |
About 2000kgs |

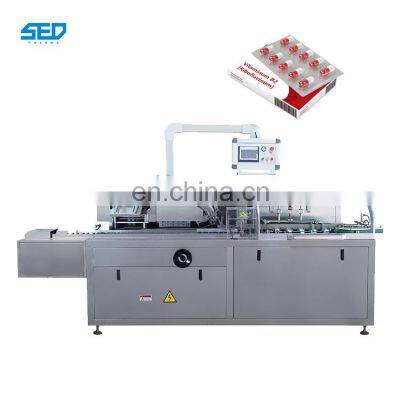

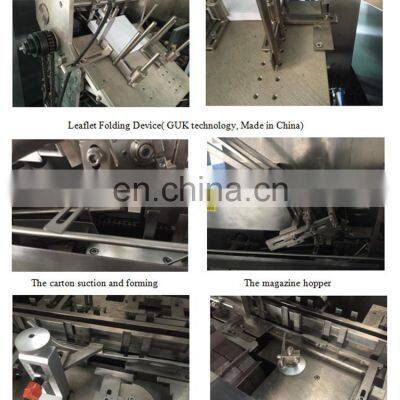

Cartoning Machine Technical Parameter
Mechanical speed: |
30-120cartons/min |
Quality requirement for the carton: |
White cardboard 250-350g/m2 Gray cardboard 300-400g/ m2 |
Electrics: |
220/50/3pH, N |
Motor Power: |
1.5kw |
Compressed Air: |
≥0.6Mpa/≤0.3m3 minute |
Air Consumption: |
120-160L NL/min |
Overall dimensions: |
3100 x 1100 x 1550 mm (L x W x H) |
Weight: |
1000 kgs (approx.) |
Carton size range: |
(35-80 mm)*(14-50 mm)*(70-180 mm) |
Leaflet Quality requirement |
60-70g/ m2 |
Unfolded leaflet specification |
(80-250) *(90-170) mm |
Fold range |
1-4 folds |

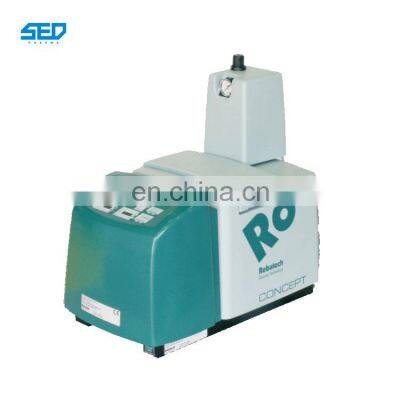

Hot Melt Glue Device Technical Support
Model |
Concept C5 |
Melting tank capacity |
5 KG |
Melting tank with glue port |
150*110mm |
Sol volume per hour |
6 KG |
Number of pumps |
Piston pump KPC5 |
Number of hose/sprinkler connections |
Up to 2 hoses and 2 sets of spray guns |
Temperature control range |
20-210℃±0.5℃ |
Operating voltage |
AC 230V, single phase, 32A |
Frequency |
50/60Hz |
Power |
1800 watts |
Working temperature |
0-45℃ |
Weight (including KCP5) |
34KG |
Safety devices |
Temperature control protection, emergency shutdown, program monitoring, pressure relief valve |
Connection interface |
4 sets of output and 4 sets of input connection ports can be customized |
Optional |
Glue sensor, glue spray mode, automatic filler, select heating zone |
Application
Product Packaging
