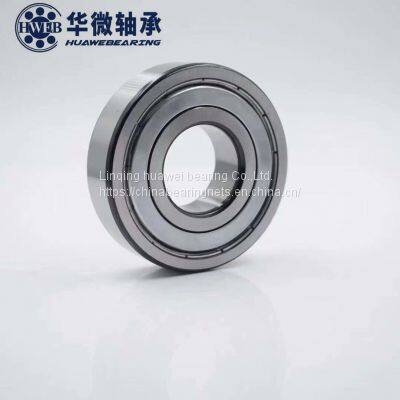

6214 bearing deep groove ball bearing
HWEB bearing single row deep groove ball bearing 6214 bearing dimensions
Inner diameter 70mm
Outer diameter 125mm
Thickness 24mm
Features of deep groove ball bearing 6214
Deep groove ball bearing is a kind of bearing with the widest range of application because of its simple structure and convenient use. It is mainly used to bear radial load and can also bear a
Fixed axial load. When the radial clearance of the bearing increases, it has the function of angular contact ball bearing and can bear large axial load. Consistent with size
Compared with other types of bearings, this type of bearing has small friction coefficient and high limit speed. It can be used when the thrust ball bearing is not suitable for high speed
These bearings bear axial load.

Specific classification and model comparison of 6214 bearing deep groove ball bearing:
1. Open deep groove ball bearing (60000 type)
Note: it is mainly used to bear radial load and small axial load. The axial displacement of the shaft is limited within the allowable range of axial clearance
The ring is inclined with respect to the outer ring 1 - * /1
2. Deep groove ball bearing with stop groove in outer ring (60000 n type)
Note: the axial positioning of the bearing in the bearing seat hole can be simplified by installing the retaining ring into the deep groove ball bearing of the same basic type
3. Deep groove ball bearing with dust cover on one side and stop groove on the outer ring on the other side (60000-zn type)
4. Deep groove ball bearing (60000-2zn type) with dust cover on both sides and stop groove on the outer ring
5. Deep groove ball bearing with dust cover on one side (60000-z)
6. Deep groove ball bearing with dust cover on both sides (60000-2z)
Note: there is a gap between the dust cover and the inner ring flange of the same basic deep groove ball bearing, the limit speed is the same as that of the open deep groove ball bearing, and the shaft is well sealed
The bearing is filled with an appropriate amount of lubricant during assembly. It is unnecessary to clean and add lubricant during installation and use.
7. Deep groove ball bearing with sealing ring on one side (60000-rs and 60000-rz)
Note: the sealing ring of deep groove ball bearing of the same basic type has contact type (post code% /, (./) and non-contact type (.
The contact sealing effect is good, but the friction resistance is large and the limit speed is low.
8. Deep groove ball bearing with sealing ring on both sides (60000-2rs type, 60000-2rz type)
Note: the limit speed of the non-contact seal is the same as that of the open deep groove ball bearing. The bearing shall be filled with an appropriate amount of lubricant during assembly and shall not be cleaned during installation and use
And add lubricant.
9. Flange outer ring deep groove ball bearing (f60000 type)
10. Flange outer ring deep groove ball bearing with dust cover on one side (f60000-z type)
11. Flange outer ring deep groove ball bearing with dust cover on both sides (f60000-2z type)
