China Linqing Deep Groove Ball Bearing 608 607 624 695 626zz

China Linqing Deep Groove Ball Bearing 608 607 624 695 626zz thumbnail-1
China Linqing Deep Groove Ball Bearing 608 607 624 695 626zz photo-1
US$ 0.14 - 0.19 MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2004
Factory Size:
1,000-3,000 square meters
Contact Supplier Request Quote Chat Now
Linqing Huawei Bearing Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Product Description

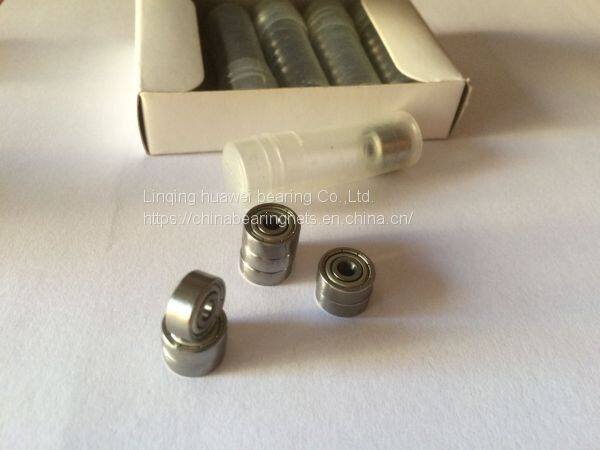

China Mini Deep Groove Ball Bearing 608 607 624 695 626zz 626RS 635RS Bearing
Deep groove ball bearings Applications:
Deep groove ball bearings can be used for transmission, instrumentation, motors, appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate style, precision instruments, low noise motors, automobiles, motorcycles vehicles.
Our features as below:
(1) material: CGr15, chrome steel, stainless steel
(2) quality: Z1V1, Z2V2,
(3) low vibration, low noise, high precision and durable
(4) short delivery time, mainly 10-20 days since order confirmed
(5) supply full range of deep groove ball bearing
(6) high cost effective, widely applied to electric motor, pump, constrution machine, home appliance, instrument, cluth etc.

We are sincerely seeking for a cooperation possibility with all over the world clients, so warmly contact and send your inquiries.

N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
604 4 12 4 0.2 0.97 0.36 36000 44000 0.0021
605 5 14 5 0.2 1.33 0.505 32000 40000 0.0035
606 6 17 6 0.3 2.19 0.865 30000 38000 0.006
607 7 19 6 0.3 2.24 0.91 28000 36000 0.008
608 8 22 7 0.3 3.35 1.4 26000 34000 0.012
609 9 24 7 0.3 3.4 1.45 24000 32000 0.014
6000 10 26 8 0.3 4.55 1.96 22000 30000 0.019
6001 12 28 8 0.3 5.1 2.39 19000 26000 0.021
6002 15 32 9 0.3 5.6 2.83 18000 24000 0.03
6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039
6004 20 42 12 0.6 9.4 5.05 15000 19000 0.069
6005 25 47 12 0.6 10.1 5.85 14000 18000 0.08
6006 30 55 13 0.6 13.2 8.3 12000 15000 0.116
6007 35 62 14 1 16 10.3 10000 14000 0.115
6008 40 68 15 1 16.8 11.5 8000 11000 0.19
6200 Series Miniature Deep Groove Ball Bearing
N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
624 4 13 5 0.2 1.15 0.4 36000 45000 0.0032
625 5 16 5 0.3 1.76 0.68 32000 40000 0.005
626 6 19 6 0.3 2.34 0.885 28000 36000 0.008
627 7 22 7 0.3 3.35 1.4 26000 34000 0.013
628 8 24 8 0.3 4 1.59 24000 32000 0.017
629 9 26 8 0.3 4.55 1.96 22000 30000 0.019
6200 10 30 9 0.6 5.1 2.39 19000 26000 0.03
6201 12 32 10 0.6 6.1 2.75 18000 24000 0.036
6202 15 35 11 0.6 7.75 3.6 17000 22000 0.046
6203 17 40 12 0.6 9.6 4.6 16000 20000 0.065
6204 20 47 14 1 12.8 6.65 14000 18000 0.107
6205 25 52 15 1 14 7.85 12000 16000 0.125
6206 30 62 16 1 19.5 11.3 10000 13000 0.201
6800 Series Miniature Deep Groove Ball Bearing
N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
685 5 11 3 0.15 0.715 0.282 35000 45000 0.0011
686 6 13 3.5 0.15 1.08 0.44 33000 42000 0.0019
687 7 14 3.5 0.15 1.17 0.505 31000 40000 0.0021
688 8 16 4 0.2 1.61 0.715 29000 38000 0.0031
689 9 17 4 0.2 1.72 0.82 28000 36000 0.0032
6800 10 19 5 0.3 1.83 0.925 26000 34000 0.005
6801 12 21 5 0.3 1.92 1.04 22000 30000 0.006
6802 15 24 5 0.3 2.08 1.26 20000 28000 0.007
6803 17 26 5 0.3 2.23 1.46 19000 26000 0.008
6804 20 32 7 0.3 4 2.47 17000 22000 0.019
6805 25 37 7 0.3 4.3 2.95 15000 19000 0.022
6806 30 42 7 0.3 4.7 3.65 13000 17000 0.026
6807 35 47 7 0.3 4.9 4.05 11000 15000 0.029
6900 Series Deep Groove Ball Bearing
N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
693 3 8 3 0.15 0.56 0.18 44000 52000 0.0006
694 4 11 4 0.15 0.715 0.276 38000 47000 0.0018
695 5 13 4 0.2 1.08 0.43 34000 43000 0.0024
696 6 15 5 0.2 1.35 0.53 32000 40000 0.0038
697 7 17 5 0.3 1.61 0.715 30000 38000 0.0052
698 8 19 6 0.3 1.99 0.865 28000 36000 0.0073
690 9 20 6 0.3 2.48 1.09 27000 34000 0.0082
6900 10 22 6 0.3 2.7 1.27 25000 32000 0.009
6901 12 24 6 0.3 2.89 1.46 20000 28000 0.011
6902 15 28 7 0.3 3.65 2 19000 26000 0.016
6903 17 30 7 0.3 4.65 2.58 18000 24000 0.018
6904 20 37 9 0.3 6.4 3.7 17000 22000 0.036
6905 25 42 9 0.3 7.05 4.55 14000 18000 0.042
6906 30 47 9 0.3 7.25 5 12000 16000 0.048
6907 35 55 10 0.3 9.55 6.85 10000 14000 0.074



1 Series Deep Groove Ball Bearing
2 Dimension Id from 3mm to 280mm
3 Rows Single & Double & Four rows
4 Cage Chrome Steel
brass
nylon
5 Structure

6 Material GCr15/GCr15SiMn
7 Precision ABEC1 (P0)  ABEC3 (P6)
9 Packing 1: plastic tube or plastic paper
2: plastic bag + brand color box + brand carton
3: plastic bag + white box + carton
4: you request
10 Brand HWEB
11 MOQ 1 pcs
12 Delivery term FOB qingdao, shanghai port & CIF
13 Delivery date 1) 3-5days (bearing in stocks,standard dimension)
2)10-20 days(order to produce,standard dimension)
3)15 days(produce as drawing,special design)
14 Payment term
1).30%T/T in advance ,70% balance has to be paid before first shippment.
2).100% L/C at sight
3): West Union
4): PayPal
5): Other payment terms depend on our discussion
15  Useage  Single & double rows motors,dynamos,combustion turbines,main shafts of machine tools,
reducing gears,handling machinery and transporters
Four rows rolling mills(cold mill & hot mill & roughing mill)
16 Features Nice out looks, good quality, best price, short delivery time, easy to install to machines.
17 Others OEM orders available

 Welcome to choose Linqing huawei bearing CO., LTD.
