China Deep Groove Ball Bearings 6403, 6404, 6405, 6406,

China Deep Groove Ball Bearings 6403, 6404, 6405, 6406, thumbnail-1
China Deep Groove Ball Bearings 6403, 6404, 6405, 6406, photo-1
US$ 0.32 - 0.63 MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2004
Factory Size:
1,000-3,000 square meters
Contact Supplier Request Quote Chat Now
Linqing Huawei Bearing Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Product Description

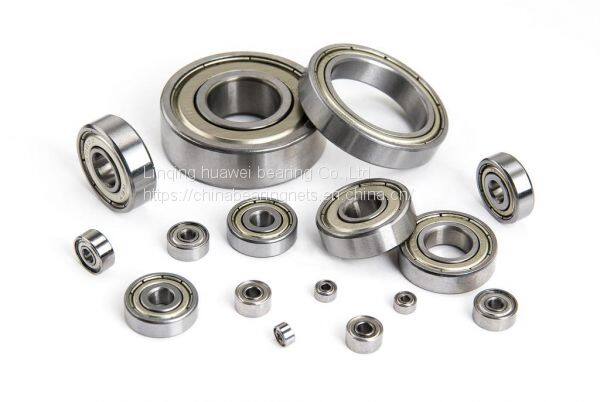

China Deep Groove Ball Bearings 6403, 6404, 6405, 6406, 6408

Deep groove ball bearings Applications:
Deep groove ball bearings can be used for transmission, instrumentation, motors, appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate style, precision instruments, low noise motors, automobiles, motorcycles vehicles.

N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
604 4 12 4 0.2 0.97 0.36 36000 44000 0.0021
605 5 14 5 0.2 1.33 0.505 32000 40000 0.0035
606 6 17 6 0.3 2.19 0.865 30000 38000 0.006
607 7 19 6 0.3 2.24 0.91 28000 36000 0.008
608 8 22 7 0.3 3.35 1.4 26000 34000 0.012
609 9 24 7 0.3 3.4 1.45 24000 32000 0.014
6000 10 26 8 0.3 4.55 1.96 22000 30000 0.019
6001 12 28 8 0.3 5.1 2.39 19000 26000 0.021
6002 15 32 9 0.3 5.6 2.83 18000 24000 0.03
6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039
6004 20 42 12 0.6 9.4 5.05 15000 19000 0.069
6005 25 47 12 0.6 10.1 5.85 14000 18000 0.08
6006 30 55 13 0.6 13.2 8.3 12000 15000 0.116
6007 35 62 14 1 16 10.3 10000 14000 0.115
6008 40 68 15 1 16.8 11.5 8000 11000 0.19
6200 Series Miniature Deep Groove Ball Bearing
N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
624 4 13 5 0.2 1.15 0.4 36000 45000 0.0032
625 5 16 5 0.3 1.76 0.68 32000 40000 0.005
626 6 19 6 0.3 2.34 0.885 28000 36000 0.008
627 7 22 7 0.3 3.35 1.4 26000 34000 0.013
628 8 24 8 0.3 4 1.59 24000 32000 0.017
629 9 26 8 0.3 4.55 1.96 22000 30000 0.019
6200 10 30 9 0.6 5.1 2.39 19000 26000 0.03
6201 12 32 10 0.6 6.1 2.75 18000 24000 0.036
6202 15 35 11 0.6 7.75 3.6 17000 22000 0.046
6203 17 40 12 0.6 9.6 4.6 16000 20000 0.065
6204 20 47 14 1 12.8 6.65 14000 18000 0.107
6205 25 52 15 1 14 7.85 12000 16000 0.125
6206 30 62 16 1 19.5 11.3 10000 13000 0.201
6300 Series Miniature Deep Groove Ball Bearing
N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
6300 10 35 11 0.6 8.2 3.5 18000 24000 0.053
6301 12 37 12 1 9.7 4.2 17000 22000 0.06
6302 15 42 13 1 11.4 5.45 16000 20000 0.082
6303 17 47 14 1 13.5 6.55 15000 19000 0.115
6304 20 52 15 1.1 15.9 7.9 14000 17000 0.144
6800 Series Miniature Deep Groove Ball Bearing
N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
685 5 11 3 0.15 0.715 0.282 35000 45000 0.0011
686 6 13 3.5 0.15 1.08 0.44 33000 42000 0.0019
687 7 14 3.5 0.15 1.17 0.505 31000 40000 0.0021
688 8 16 4 0.2 1.61 0.715 29000 38000 0.0031
689 9 17 4 0.2 1.72 0.82 28000 36000 0.0032
6800 10 19 5 0.3 1.83 0.925 26000 34000 0.005
6801 12 21 5 0.3 1.92 1.04 22000 30000 0.006
6802 15 24 5 0.3 2.08 1.26 20000 28000 0.007
6803 17 26 5 0.3 2.23 1.46 19000 26000 0.008
6804 20 32 7 0.3 4 2.47 17000 22000 0.019
6805 25 37 7 0.3 4.3 2.95 15000 19000 0.022
6806 30 42 7 0.3 4.7 3.65 13000 17000 0.026
6807 35 47 7 0.3 4.9 4.05 11000 15000 0.029



1 Series Deep Groove Ball Bearing
2 Dimension Id from 3mm to 280mm
3 Rows Single & Double & Four rows
4 Cage Chrome Steel
brass
nylon
5 Structure

6 Material GCr15/GCr15SiMn
7 Precision ABEC1 (P0)  ABEC3 (P6)
8 Quality
9 Packing
1: plastic tube or plastic paper
2: plastic bag + brand color box + brand carton
3: plastic bag + white box + carton
4: you request
10 Brand HWEB
11 MOQ 1 pcs
12 Delivery term FOB qingdao, shanghai port & CIF
13 Delivery date
1) 3-5days (bearing in stocks,standard dimension)
2)10-20 days(order to produce,standard dimension)
3)15 days(produce as drawing,special design)
14 Payment term
1).30%T/T in advance ,70% balance has to be paid before first shippment.
2).100% L/C at sight
3): West Union
4): PayPal
5): Other payment terms depend on our discussion
15  Useage  Single & double rows motors,dynamos,combustion turbines,main shafts of machine tools,
reducing gears,handling machinery and transporters
Four rows rolling mills(cold mill & hot mill & roughing mill)
16 Features Nice out looks, good quality, best price, short delivery time, easy to install to machines.
17 Others OEM orders available



Other types:

Ball Bearing Deep Groove Ball Bearing 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **,
160 **(70001 )
Thrust Ball Bearing 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series
Angular Contact Ball bearing SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series
Roller Bearing Spherical Roller bearing 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on
Taper Roller Bearing 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc.
Thrust Roller Bearing 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series.
Cylindrical Roller Bearing NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry.



Welcome to choose Linqing huawei bearing CO., LTD.

                 Hard to find Bearings, we can help!
1. We are China Leading Bearing Manufacturer.
2. Assessed Gold Supplier.
3. Inspected by the Inspection Institution of Bureau Veritas Certification.
4. 100% QC inspection Before Shipment.
5. Best Quality & Best Service with Competitive price.
6. No Non-standard Bearings- Any requirement for non-standard bearings easily fulfilled due to its vast knowledge & links in the industry.
7. Quick Delivery- Provides just-in-time delivery with its streamlined supply chain.
8. Cost Saving- Provides long-life, shock-resistant & high reliability bearings with better performance.
9. Index of Thrust Ball Bearing.
Advantages and Feathers of  Bearings:
1. HUAWEI bearing Co., Ltd. has its own factory. We make sure to offer you the most competitive price.
2. HUAWEI bearing Co., Ltd. has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed.
3.  HUAWEI bearing Co., Ltd. is a bearing manufacturer since 2002. Rich experience makes us more professional.
4. The bearing is long durability, high speed and low noise.
5. OEM & ODM are available.
6. All kinds of bearing samples are available.

Why Choose Us:
We are an industrial company.We have our own brand: HUAWEBAR .If you interested in our product,I can take you to visit our factory.
Our factory have advanced testing equipment,before the every product leave the factory,we will be testing.We can send samples to you,you can test the quality,and if you accept the sample quality,we can promise: the follow-up orders' quality will be the same as samples.
About ordinary standard type of bearing ,We have rich inventory,not have MOQ,if your need a product is Non-standard size,need customize,we will according the product size to determine the MOQ.
Our company can accept OEM,you can send sample to me,we can manufacturing products the same as sample.Meanwhile,we also can accept some well-known brands of OEM,
If the amount of money is less,you can pay it by Paypal.Of course you can payment by TT or Western Union etc.


Product Tags: bearing , ball bearings , deep groove ball bearings
