China High Precision Self-Aligning Ball Bearing Ikc NTN 1208k, 1203, 1204,
Product Description

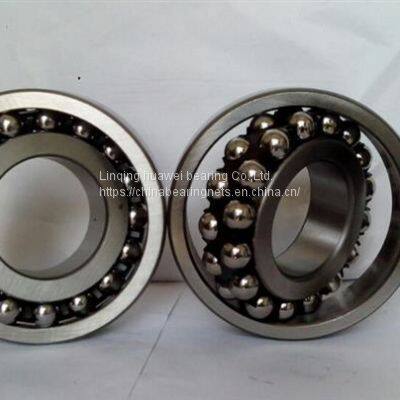

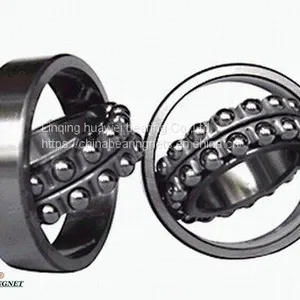

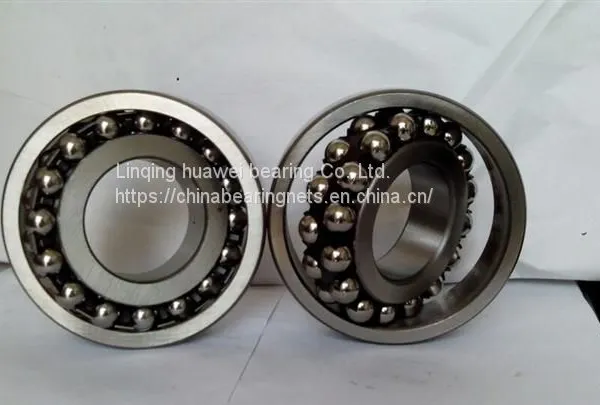

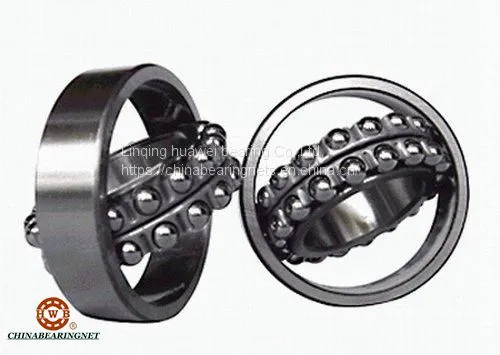

China High Precision Self-Aligning Ball Bearing Ikc NTN 1208k,1203,1204,1205,1206 K C3 Ektn9 SKF NS
Welcome to choose Linqing huawei bearing CO., LTD.
our adwantages:
1. 15 years ball bearings, roller bearings, products manufacturing and exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings pump bearings, and many nonstandard bearings are also in our product range.
4. Sample available
Quick Details
| series | cylindrical bore | tapered bore | variant structure |
| 1200 1200K | 10-120mm | 10-120mm | 2RS +H200 |
| 1300 1300K | 10-110mm | 10-110mm | 2RS +H300 |
| 2200 2200K | 10-110mm | 10-110mm | 2RS +H300 |
| 2300 2300K | 10-110mm | 10-110mm | 2RS +H2300 |
Structure: | Self-Aligning | Type: | Ball | Brand Name: | HUAWEBAR |
Bore Size: | 10-120mm | Outside Diameter: | 15-150mm | Model Number: | 1300 |
Precision Rating: | P0 P6 | Seals Type: | open | Number of Row: | Double Row |
Place of Origin: | China (Mainland) | Material: | chrome steel,carbon steel ,stainless steel | Cage: | steel Cage ,Brass cage,Nylon Cage |
Clearance: | C0 C2 C3 C4 C5 | Product Name: | Self-aligning Ball Bearing |
2.Packaging & Shipping
1):first in small poly bag and than in colour box, cartons . pallet
2):neutral packing or industral packing
3):according to clients need
Shippment :for sea .or Express
3.Our Services
about marking and packing we can also do according to clients need
| Packaging Details: | 1:poly bag+colour box +cartongs+pallet 2:industrical packing |
| Delivery Detail: | 30 days after comfirm the order |
Self-aligning ball bearing Application:
Self-Aligning ball bearings to withstand heavy load and impact load , precision instruments, low noise motors, automobiles , motorcycles, metallurgy , rolling mill , mining, petroleum , paper, cement , sugar and other industries , and general machinery.
| Bearing NO. | Principal dimensions | Speed ratings(r/min) | Basic load ratings | (kg) | ||||
| D | D | B/C/T | Grease | Oil | Dynamic(kN) | Static(kN) | Mass | |
| 1203 | 17 | 40 | 12 | 16000 | 20000 | 7.9 | 2 | 0.1 |
| 1203K | 17 | 40 | 12 | 16000 | 20000 | 7.9 | 2 | 0.1 |
| 1204 | 20 | 47 | 14 | 14000 | 17000 | 10 | 2.7 | 0.1 |
| 1204K | 20 | 47 | 14 | 14000 | 17000 | 10 | 2.7 | 0.1 |
| 1205 | 25 | 52 | 15 | 12000 | 14000 | 12 | 3.3 | 0.1 |
| 1205K | 25 | 52 | 15 | 12000 | 14000 | 12 | 3.3 | 0.1 |
| 1206 | 30 | 62 | 16 | 10000 | 12000 | 15.8 | 4.7 | 0.2 |
| 1206K | 30 | 62 | 16 | 10000 | 12000 | 15.8 | 4.7 | 0.2 |
| 1207 | 35 | 72 | 17 | 8500 | 10000 | 15.8 | 5.1 | 0.3 |
| 1207K | 35 | 72 | 17 | 8500 | 10000 | 15.8 | 5.1 | 0.3 |
| 1208 | 40 | 80 | 18 | 7500 | 9000 | 19.2 | 6.4 | 0.4 |
| 1208K | 40 | 80 | 18 | 7500 | 9000 | 19.2 | 6.4 | 0.4 |
| 1209 | 45 | 85 | 19 | 7100 | 8500 | 21.8 | 7.3 | 0.5 |
| 1209K | 45 | 85 | 19 | 7100 | 8500 | 21.8 | 7.3 | 0.5 |
| 1210 | 50 | 90 | 20 | 6300 | 8000 | 22.8 | 8.1 | 54 |
| 1210K | 50 | 90 | 20 | 6300 | 8000 | 22.8 | 8.1 | 54 |
| 1211 | 55 | 100 | 21 | 6000 | 7100 | 26.8 | 10 | 0.7 |
| 1211K | 55 | 100 | 21 | 6000 | 7100 | 26.8 | 10 | 0.7 |
| 1212 | 60 | 110 | 22 | 5300 | 6300 | 30.2 | 11.5 | 0.9 |
| 1212K | 60 | 110 | 22 | 5300 | 6300 | 30.2 | 11.5 | 0.9 |
| 1213 | 65 | 120 | 23 | 4800 | 6000 | 31 | 12.5 | 0.9 |
| 1213K | 65 | 120 | 23 | 4800 | 6000 | 31 | 12.5 | 0.9 |
| 1214 | 70 | 125 | 24 | 4800 | 5600 | 34.5 | 13.5 | 1.3 |
| 1214K | 70 | 125 | 24 | 4800 | 5600 | 34.5 | 13.5 | 1.3 |
| 1215 | 75 | 130 | 25 | 4300 | 5300 | 38.8 | 15.2 | 1.4 |
| 1215K | 75 | 130 | 25 | 4300 | 5300 | 38.8 | 15.2 | 1.4 |
| 1216 | 80 | 140 | 26 | 4000 | 5000 | 39.5 | 16.8 | 1.7 |
| 1216K | 80 | 140 | 26 | 4000 | 5000 | 39.5 | 16.8 | 1.7 |
| 1217 | 85 | 150 | 28 | 3800 | 4500 | 48.8 | 20.5 | 2.1 |
| 1217K | 85 | 150 | 28 | 3800 | 4500 | 48.8 | 20.5 | 2.1 |
| 1305 | 25 | 62 | 17 | 10000 | 13000 | 17.8 | 5.1 | 0.3 |
| 1305K | 25 | 62 | 17 | 10000 | 13000 | 17.8 | 5.1 | 0.3 |
| 1306 | 30 | 72 | 19 | 8500 | 11000 | 21.5 | 6.3 | 0.4 |
| 1306K | 30 | 72 | 19 | 8500 | 11000 | 21.5 | 6.3 | 0.4 |
| 1307 | 35 | 80 | 21 | 7500 | 9500 | 25 | 8 | 0.5 |
| 1307K | 35 | 80 | 21 | 7500 | 9500 | 25 | 8 | 0.5 |
| 1308 | 40 | 90 | 23 | 6700 | 8500 | 29.5 | 9.5 | 0.7 |
| 1308K | 40 | 90 | 23 | 6700 | 8500 | 29.5 | 9.5 | 0.7 |
| 1309 | 45 | 100 | 25 | 6000 | 7500 | 38 | 12.8 | 1 |
| 1309K | 45 | 100 | 25 | 6000 | 7500 | 38 | 12.8 | 1 |
| 1310 | 50 | 110 | 27 | 5600 | 6700 | 43.2 | 14.2 | 1.2 |
| 1310K | 50 | 110 | 27 | 5600 | 6700 | 43.2 | 14.2 | 1.2 |
| 1311 | 55 | 120 | 29 | 5000 | 6300 | 51.5 | 18.2 | 1.6 |
| 1311K | 55 | 120 | 29 | 5000 | 6300 | 51.5 | 18.2 | 1.6 |
| 1312 | 60 | 130 | 31 | 4500 | 5600 | 57.2 | 20.8 | 2 |
| 1312K | 60 | 130 | 31 | 4500 | 5600 | 57.2 | 20.8 | 2 |
| 1313 | 65 | 140 | 33 | 4300 | 5300 | 61.8 | 22.8 | 2.4 |
| 1313K | 65 | 140 | 33 | 4300 | 5300 | 61.8 | 22.8 | 2.4 |
| 1314 | 70 | 150 | 35 | 4000 | 5000 | 74.5 | 27.5 | 3 |
| 1314K | 70 | 150 | 35 | 4000 | 5000 | 74.5 | 27.5 | 3 |
| 1315 | 75 | 160 | 37 | 3800 | 4500 | 79 | 29.8 | 3.6 |
| 1315K | 75 | 160 | 37 | 3800 | 4500 | 79 | 29.8 | 3.6 |
| 1316 | 80 | 170 | 39 | 3600 | 4300 | 88.5 | 32.8 | 4.2 |
| 1316K | 80 | 170 | 39 | 3600 | 4300 | 88.5 | 32.8 | 4.2 |
| 2205 | 25 | 52 | 18 | 12000 | 14000 | 12.5 | 3.4 | 0.2 |
| 2205K | 25 | 52 | 18 | 12000 | 14000 | 12.5 | 3.4 | 0.2 |
| 2206 | 30 | 62 | 20 | 10000 | 12000 | 15.2 | 4.6 | 0.3 |
| 2206K | 30 | 62 | 20 | 10000 | 12000 | 15.2 | 4.6 | 0.3 |
| 2207 | 35 | 72 | 23 | 8500 | 10000 | 21.8 | 6.7 | 1.4 |
| 2207K | 35 | 72 | 23 | 8500 | 10000 | 21.8 | 6.7 | 1.4 |
| 2208 | 40 | 80 | 23 | 7500 | 9000 | 22.5 | 7.4 | 0.5 |
| 2208K | 40 | 80 | 23 | 7500 | 9000 | 22.5 | 7.4 | 0.5 |
| 2209 | 45 | 85 | 23 | 7100 | 8500 | 23.2 | 8 | 0.6 |
| 2209K | 45 | 85 | 23 | 7100 | 8500 | 23.2 | 8 | 0.6 |
| 2210 | 50 | 90 | 23 | 6300 | 8000 | 23.2 | 8.5 | 0.7 |
| 2210K | 50 | 90 | 23 | 6300 | 8000 | 23.2 | 8.5 | 0.7 |
| 2211 | 55 | 100 | 25 | 6000 | 7100 | 26.8 | 10 | 0.8 |
| 2211K | 55 | 100 | 25 | 6000 | 7100 | 26.8 | 10 | 0.8 |
| 2212 | 60 | 110 | 28 | 5300 | 6300 | 34 | 12.5 | 1.1 |
| 2212K | 60 | 110 | 28 | 5300 | 6300 | 34 | 12.5 | 1.1 |
| 2213 | 65 | 120 | 31 | 4800 | 6000 | 43.5 | 16.2 | 1.5 |
| 2213K | 65 | 120 | 31 | 4800 | 6000 | 43.5 | 16.2 | 1.5 |
| 2214 | 70 | 125 | 31 | 4500 | 5600 | 44 | 17 | 1.6 |
| 2214K | 70 | 125 | 31 | 4500 | 5600 | 44 | 17 | 1.6 |
| 2215 | 75 | 130 | 31 | 4300 | 5300 | 44.2 | 18 | 1.7 |
| 2215K | 75 | 130 | 31 | 4300 | 5300 | 44.2 | 18 | 1.7 |
| 2216K/C3 | 80 | 140 | 33 | 4700 | 5000 | 49 | 19.9 | 2 |
| 2304 | 20 | 52 | 21 | 11000 | 14000 | 17.8 | 4.8 | 0.2 |
| 2304K | 20 | 52 | 21 | 11000 | 14000 | 17.8 | 4.8 | 0.2 |
| 2305 | 25 | 62 | 24 | 9500 | 12000 | 24.5 | 6.5 | 0.4 |
| 2305K | 25 | 62 | 24 | 9500 | 12000 | 24.5 | 6.5 | 0.4 |
| 2306 | 30 | 72 | 27 | 8000 | 10000 | 31.5 | 8.7 | 0.5 |
| 2306K | 30 | 72 | 27 | 8000 | 10000 | 31.5 | 8.7 | 0.5 |
| 2307 | 35 | 80 | 31 | 7100 | 9000 | 39.2 | 11 | 0.7 |
| 2307K | 35 | 80 | 31 | 7100 | 9000 | 39.2 | 11 | 0.7 |
| 2308 | 40 | 90 | 33 | 6300 | 8000 | 44.8 | 13.2 | 0.9 |
| 2308K | 40 | 90 | 33 | 6300 | 8000 | 44.8 | 13.2 | 0.9 |
| 2309 | 45 | 100 | 36 | 5600 | 7100 | 55 | 16.2 | 1.3 |
| 2309K | 45 | 100 | 36 | 5600 | 7100 | 55 | 16.2 | 1.3 |
| 2310 | 50 | 110 | 40 | 5000 | 6300 | 64.5 | 19.8 | 1.6 |
| 2310K | 50 | 110 | 40 | 5000 | 6300 | 64.5 | 19.8 | 1.6 |
| 2311 | 55 | 120 | 43 | 4800 | 6000 | 75.2 | 23.5 | 2.1 |
| 2311K | 55 | 120 | 43 | 4800 | 6000 | 75.2 | 23.5 | 2.1 |
| 2312 | 60 | 130 | 46 | 4300 | 5300 | 86.8 | 27.5 | 2.6 |
| 2312K | 60 | 130 | 46 | 4300 | 5300 | 86.8 | 27.5 | 2.6 |
| 2313 | 65 | 140 | 48 | 3800 | 4800 | 96 | 32.5 | 3.2 |
| 2313K | 65 | 140 | 48 | 3800 | 4800 | 96 | 32.5 | 3.2 |
| 2314 | 70 | 150 | 51 | 3600 | 4500 | 110 | 37.5 | 3.9 |
| 2314K | 70 | 150 | 51 | 3600 | 4500 | 110 | 37.5 | 3.9 |
| 2315 | 75 | 160 | 55 | 3400 | 4300 | 122 | 42.8 | 4.7 |
| 2315K | 75 | 160 | 55 | 3400 | 4300 | 122 | 42.8 | 4.7 |
Why Choose Us:
We are an industrial company.We have our own brand: HWEB. If you interested in our product
Our factory have advanced testing equipment,before the every product leave the factory,we will be testing.We can send samples to you,you can test the quality,and if you accept the sample quality,we can promise: the follow-up orders' quality will be the same as samples.
About ordinary standard type of bearing ,We have rich inventory,not have MOQ,if your need a product is Non-standard size,need customize,we will according the product size to determine the MOQ.
Our company can accept OEM,you can send sample to me,we can manufacturing products the same as sample.Meanwhile,we also can accept some well-known brands of OEM,
If the amount of money is less,you can pay it by Paypal.Of course you can payment by TT or Western Union etc.
Quality Assurance
Product quality is the lifeline of an enterprise. In order to possessing the leading technology, our company implements the quality control system and establishes a technical and strict inspection team. As per the regulation of three-dimensional management and multiple checks, each product was inspected by the producer, inspector, inspection department and quality department elaborately, especially to the important inspection items and precision inspection item.
Our Service
High quality, good credit and excellent service are the tenet of our company. Customers'satisfaction is our lifeline, as well as our highest honor. We will do our best to meet your requirements, and will do better in the future.
