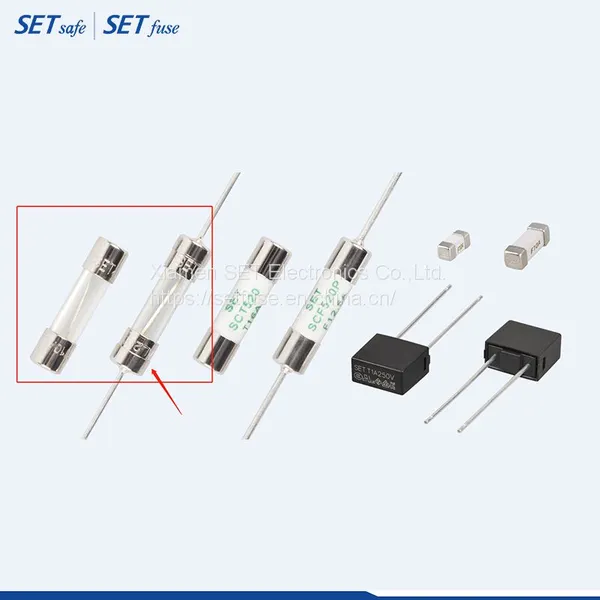

Scf520 Series High Quality Glass Fuse, Mini Fuse Manufacturer with CCC Cur Kc VDE

Xiamen SET Electronics Co., Ltd.

● Φ5 × 20 mm

● Fast-Acting

● High Breaking Capacity

● Ceramic Tube, Nickel-Plated Brass Endcap Construction

● Designed To UL248-14 / 60127-2＆7

● RoHS & REACH Compliant

Holder, Clip, Board Mount

Clip, Axial

● Power Supply

● Household Appliance

● General Lighting

● Smart Home

● Office Equipment

● Electric Tool

● Medical Equipment

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

UL (America):

Standards: UL 248

File NO.: E345932

UL_SCF520＆SCF520P_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: UL 248

File NO.: E345932

cUL_SCF520＆SCF520P_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: IEC 60127

File NO.: Ongoing

CQC (China):

Standards: GB/T 9364

File NO.: CQC21012313736 / CQC21012313738 / CQC21012317022 / CQC21012317866

CQC_SCF520＆SCF520P_SETsafe & SETfuse.pdf

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Agency (Safety Certificate) Annual, Quarterly Audits.

Quality Management System (TUV Approved and issued certificate).

SETsafe | SETfuse

SET

Mini Fuses_SCF520 & SCF520P_SETsafe & SETfuse.pdf

Miniature Fuses is an Over Current Protection device. Its resistance is very low. When the circuit works normally, it is equivalent to a wire, which can conduct the circuit continuously and stably. When the current fluctuates due to circuit instability or external interference, it should also be able to withstand a certain range of overload. Only when overload or short circuit happens, Miniature Fuses can blow fast to protect the circuit.

SETsafe | SETfuse Miniature Fuses is widely used in all kinds of electrical equipment. It has a variety of mounting modes, compact structure, reliable and stable performance. Technical parameters of SETsafe | SETfuse Miniature Fuses: Its rated current ranges from 0.1 A to 40 A, rated voltage ranges from 125 VAC to 500 VAC, and from 24 VDC to 600 VDC, complies with RoHS and REACH, and is approved by cURus, VDE, PSE, CCC, CQC, KC, TUV.

SCF520 & SCF520P series
