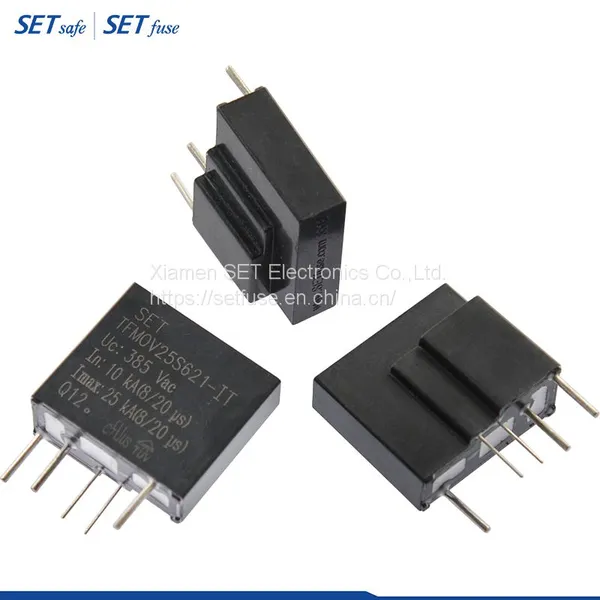

Help CenterTfmov25s Series Thermal Fuse & MOV Varistor Manufacturers With UL
Related Products
-
SET TFMOV 10M Series Thermally Protected VaristorUS$ 0.1 - 10MOQ: 100 Pieces -
Tfmov 20s Series Thermal Fuse & MOV Varistor Manufacturers With UL TUVUS$ 0.1 - 10MOQ: 100 Pieces
-
Tfmov20m Series Thermally Protected Varistors Manufacturers With UL TUV CENegotiableMOQ: 100 Pieces
-
Tfmov34s Series Thermally Protected Varistors Manufacturers With UL TUVUS$ 0.1 - 10MOQ: 100 Pieces
-
Tfmov21r3p Series Thermally Protected Varistor MOV Tpmov Replace Littelfuse. Leviton, ThinkingUS$ 0.1 - 10MOQ: 100 Pieces
Max. Continuous Operating Voltage (Uc): 17 ~ 750 VAC
Nominal Discharge Current (8/20 μs) (In): 3 ~ 10 kA
Max. Discharge Current (8/20 μs) (Imax): 6 ~ 25 kA
TFMOV is a combination of varistors (MOV) and thermal protection component. Since varistor has the characteristics of aging or degrading; TFMOV can separate the varistor from the main circuitry by opening the thermal protection component when the varistor (MOV) degrades or fails. It is often used in which requires high reliability and weather withstanding, such as photovoltaic inverters, communication equipment, and power supplies in data centers, etc.
● High Reliability
● Small Size
● Remote Signal Contact for Failure Indication (Optional)
● High Energy Capacity
● Sealing Material, Flame-retardant to V0 (UL 94)
● Comply whit UL 1449
● RoHS & REACH Compliant
Through Hole
Solder Pin
● Telecom Equipment
● String Inverter in Photovoltaic System
● AC / DC Power Supply
● Uninterruptable Power Supply (UPS)
● Surge Protective Device (SPD)
● AC Power Meter
● Power Distribution Unit (PDU)
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Agency (Safety Certificate) Annual, Quarterly Audits.
Quality Management System (TUV Approved and issued certificate).
