Home > Products > TRXF > Trxf1 Series Thermal-Link & Fusing Resistor (TRXF) Power Resistor Rxf Manufacturers with UL TUV CQC

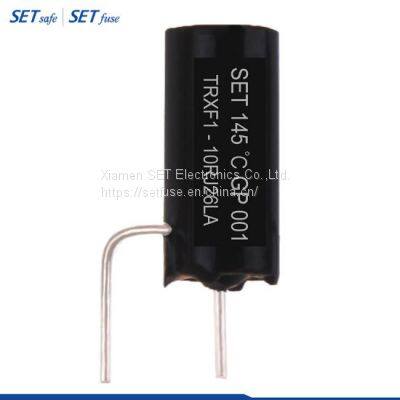

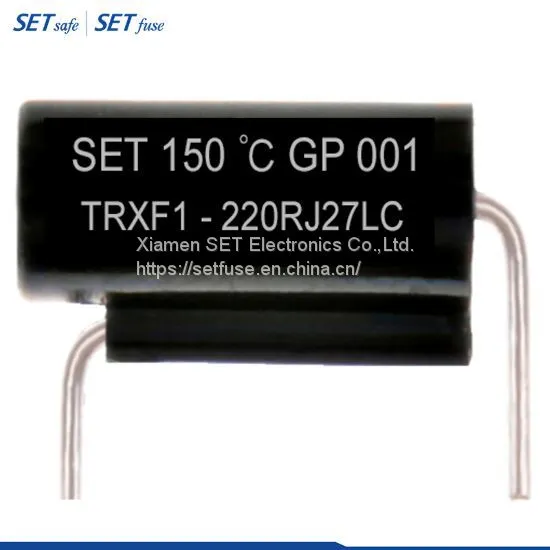

Trxf1 Series Thermal-Link & Fusing Resistor (TRXF) Power Resistor Rxf Manufacturers with UL TUV CQC
- 18000000 Piece / Pieces per Month
- Xiamen
- T/T
- 7 days
- Trxf All Series Thermal-Link & Fusing Resistor (TRXF) Power Resistor Rxf Manufacturers with UL TUV CQC
- TPR3 Series Thermally Protected Resistor (TPR) Power Resistor Manufacturers with UL CQC VDE
- TPR5 Series Thermally Protected Resistor (TPR) Power Resistor Manufacturers with UL CQC
- SET Low Voltage Fuses Solar Energy Storage Fuses Battery Fuses Lvfuses 1500VDC 2~32A
- SET Low Voltage Fuses Solar Energy Storage Fuses Battery Fuses Lvfuses 500 VDC / 690 VAC 32~100A
- SET Low Voltage Fuses Solar Energy Storage Fuses Battery Fuses Lvfuses 1500VDC 400~630A
Product Details
Brand Name: | SETsafe | SETfuse | Place of Origin: | China | Model Number: | Trxf1 Series |
Product Description
Power Type (P): 1 W
Rated Resistance (R): 0.27 ~ 800 Ω
Resistance Tolerance: 5% / 10%
Rated Functioning Temp. (Tf): 145 / 221 ℃
UNIQUE
Xiamen SET Electronics Co., Ltd.
Thermal-Link & Fusing Resistor (TRXF) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. The Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and in series with RXF.
SETsafe | SETfuse TRXF has the same physical size as ordinary RXF as well as large fault current protection. Besides, TRXF can effectively solve the hidden danger of continuous abnormal heat that ordinary RXF may cause when small fault current happens.
● Patented Product
● Over Temp. Protection
● Surge Protection
● Inrush Current Protection
● Small Fault Current Protection
● Short Circuit Protection
● RoHS & REACH Compliant

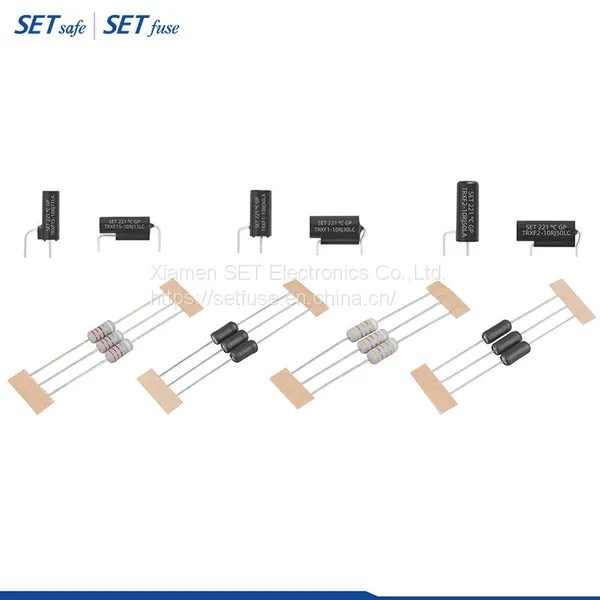

Through Hole
Axial, Radial
● Switch Mode Power Supply (SMPS)
● Adapters
● LED Drivers
● Small Power Home Appliances
ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
UL (America):
Standards: UL 1412
File NO.: E324712
UL_TRXF & TRXF(Axial Type)_SETsafe & SETfuse.pdf
cUL (Canada):
Standards: UL 1412
File NO.: E324712
cUL_TRXF_SETsafe & SETfuse.pdf
TUV (Germany):
Standards: IEC 60065
File NO.: R50279979
TUV_TRXF_SETsafe & SETfuse.pdf
CQC (China):
Standards: SJ 2865-1988
File NO.: CQC10001049763
CQC_TRXF_TRXF1_SETsafe & SETfuse.pdf
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Agency (Safety Certificate) Annual, Quarterly Audits.
Quality Management System (TUV Approved and issued certificate).
SETsafe | SETfuse
SET
TRXF TRXF1_SETsafe & SETfuse.pdf
