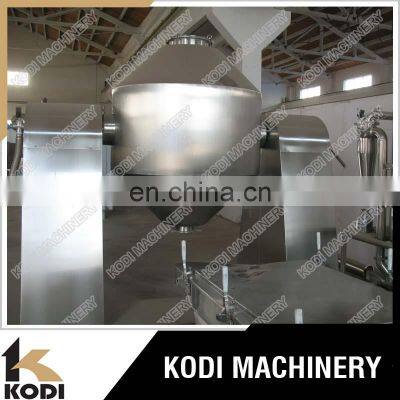

KODI SZG Type Plastic Resin Double Cone Rotary Vacuum Dryer With Solvent Recovery System
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
KODI Hot Sale SZG Model Industrial Double Cone Rotary Vacuum Dryer
-
KODI SZG Model Low Temperature Powder Double Cone Rotary Vacuum Drier
-
KODI Automotive Industry Lithium Material Double Concial Shape Vacuum Rotary Dryer
-
KODI Active Pharmaceutical Ingredient API Powder Double Cone Vacuum Dryer
-
SZG Model Low Temperature Dynamic Solvent Recovery Double Cone Rotary Vacuum Dryer
-
KODI FG Series Fluid Bed Drying Equipment Fluidized Bed Dryer Price
Product Description
Product Description

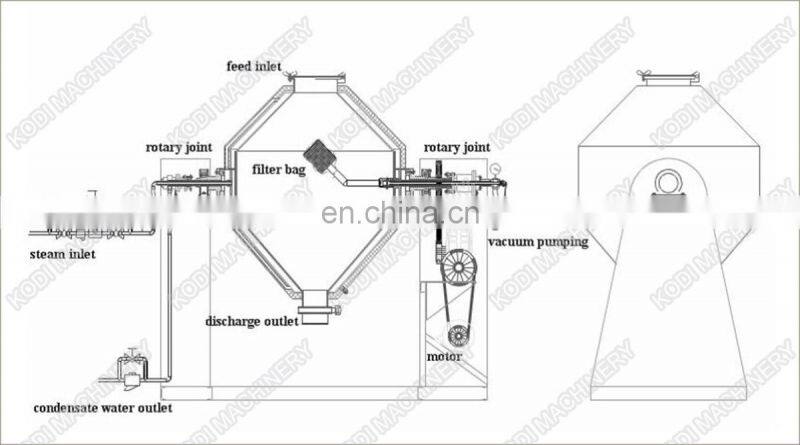

Description of Double Cone Vacuum Dryer
The double cone Vacuum Dryer consists of a jacketed double conical shell rotating around 6 RPM with under the state of vacuum inside the shell, pass steam or hot water in to jacket for heating. The large heating surface area presented by the internals of the cone ensures uniform drying of the product, as the product gently tumbles while the cone rotates slowly. The vaporized steam can be pumped out through vacuum exhaust pipe when the damp raw material absorbed heat. The diffusive action induced by the tumbling cone constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell, the dry speed of raw material is quickened and uniform drying efficiency is raised too. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket.
The double cone Vacuum Dryer consists of a jacketed double conical shell rotating around 6 RPM with under the state of vacuum inside the shell, pass steam or hot water in to jacket for heating. The large heating surface area presented by the internals of the cone ensures uniform drying of the product, as the product gently tumbles while the cone rotates slowly. The vaporized steam can be pumped out through vacuum exhaust pipe when the damp raw material absorbed heat. The diffusive action induced by the tumbling cone constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell, the dry speed of raw material is quickened and uniform drying efficiency is raised too. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket.
Features of Rotary Vacuum Dryer
* Design is GMP
* All Product contact parts AISI 316/ 316L & non-contact parts AISI 304. Or completely 304.
* Simple & compact Design for Easy to operate, clean, convenient & user friendly.
* Automated mixing and Drying process in single bowl.
* Dust free operation.
* High vacuum operation
* Low temperature drying.
* Solvent recovery
* Continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing and
drying at low temperature..
* Continues vacuum maintenance during process.
* Vacuumed closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle.
* Rapid & Complete discharge / Zero holdup after discharge
* The product dried is homogeneous with uniform properties.
* Very low value of final moisture even at low drying temperatures.
* Inside Filter assembly with 5 Micron.
* Design is GMP
* All Product contact parts AISI 316/ 316L & non-contact parts AISI 304. Or completely 304.
* Simple & compact Design for Easy to operate, clean, convenient & user friendly.
* Automated mixing and Drying process in single bowl.
* Dust free operation.
* High vacuum operation
* Low temperature drying.
* Solvent recovery
* Continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing and
drying at low temperature..
* Continues vacuum maintenance during process.
* Vacuumed closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle.
* Rapid & Complete discharge / Zero holdup after discharge
* The product dried is homogeneous with uniform properties.
* Very low value of final moisture even at low drying temperatures.
* Inside Filter assembly with 5 Micron.
Optional Features :
* Option for advance PLC Controls with HMI touch screen..
* Option for Flame Proof Electrical.
* Option for lump breaker.
* Option for condenser, Receiver & Cyclone for solvent recovery.
* Option for heating media steam/ hot water / hot oil.
* Option for Flame Proof Electrical.
* Option for lump breaker.
* Option for condenser, Receiver & Cyclone for solvent recovery.
* Option for heating media steam/ hot water / hot oil.
Applications of Rotary Vacuum Dryer
1. Material that cannot undertake high temperature.
2. Material that is easy to oxidize.
3. Material that do not permit to destruct.
4. To recover material with residual volatile.
5. Material with vigorous irrelative and toxicity.
6. Biology products and mine.
7. Dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and biochemistry at low temp etc.
1. Material that cannot undertake high temperature.
2. Material that is easy to oxidize.
3. Material that do not permit to destruct.
4. To recover material with residual volatile.
5. Material with vigorous irrelative and toxicity.
6. Biology products and mine.
7. Dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and biochemistry at low temp etc.
Specification
Model (SZG-) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | ||||||||
Total volume(L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | ||||||||
Loading volume(L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 | ≤750 | ≤1000 | ≤1750 | ≤2250 | ||||||||
Heating area (m2) | 1.16 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 11.2 | 13.1 | ||||||||
Rotary peed ( rpm) | 4 - 6 | ||||||||||||||||
Power of motor (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | 5.5 | 7.5 | ||||||||
Occupied area, L×W(mm) | 2160 ×800 | 2260 ×800 | 2350 ×800 | 2560 ×1000 | 2860 ×1300 | 3060 ×1300 | 3260 ×1400 | 3760 ×1800 | 3960 ×2000 | ||||||||
Rotary height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | ||||||||
Design pressure inside the tank (MPa) | -0.1-0.15 | ||||||||||||||||
Design pressure of jacket (MPa) | ≤0.3 | ||||||||||||||||
working temperature (oC) | In the tank≤85 jacket≤140 | ||||||||||||||||
When use condenser | 2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A | JZJX300-8 | JZJX300-4 | JZJX600-8 | JZJX600-4 | ||||||||
model and power of vacuum pump | 2KW | 2KW | 3KW | 3KW | 505KW | 7KW | 9.5KW | 11KW | 20.5KW | ||||||||
When don’t use condenser | SK-0.4 | SK-0.8 | SK-0.8 | SK-2.7B | SK-2.7B | SK-3 | SK-6 | SK-6 | SK-9 | ||||||||
model and power of vacuum pump | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW | 11KW | 11KW | 15KW | ||||||||
Weight(kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | ||||||||

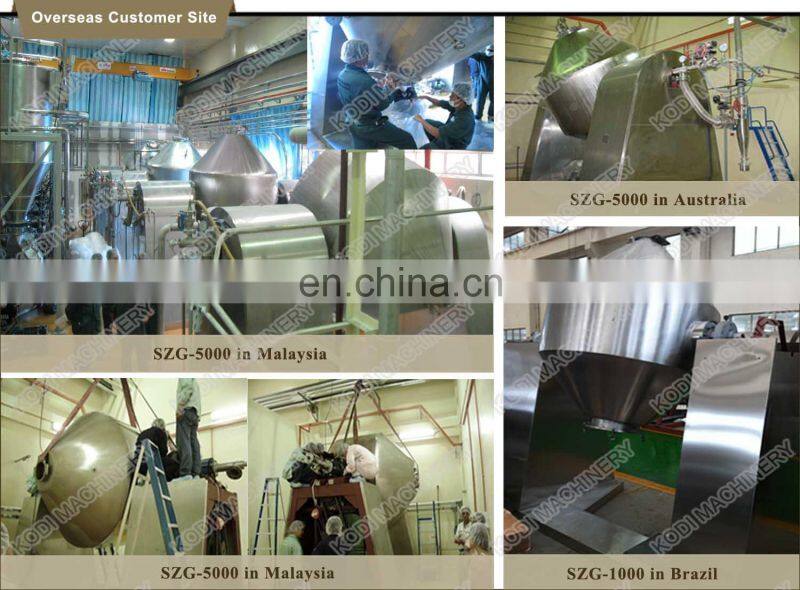

Successful Experience Overseas By KODI Double Cone Vacuum Dryer

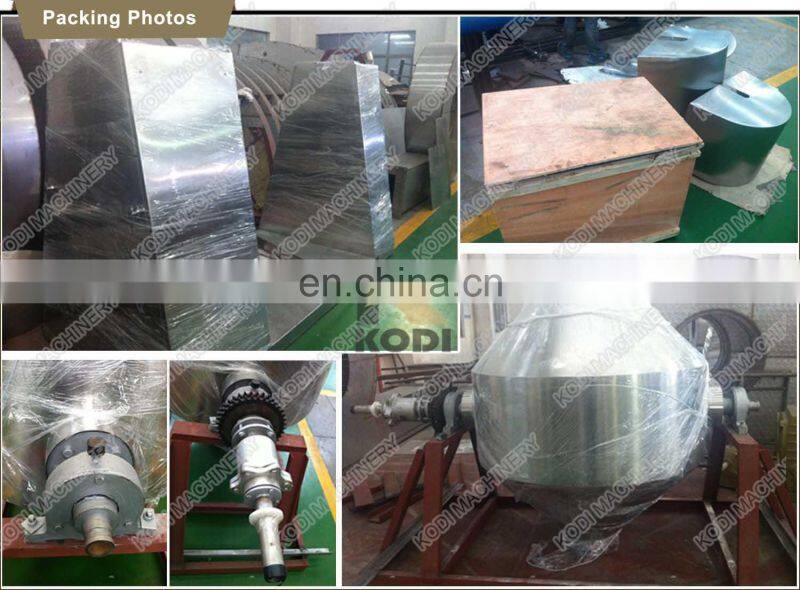

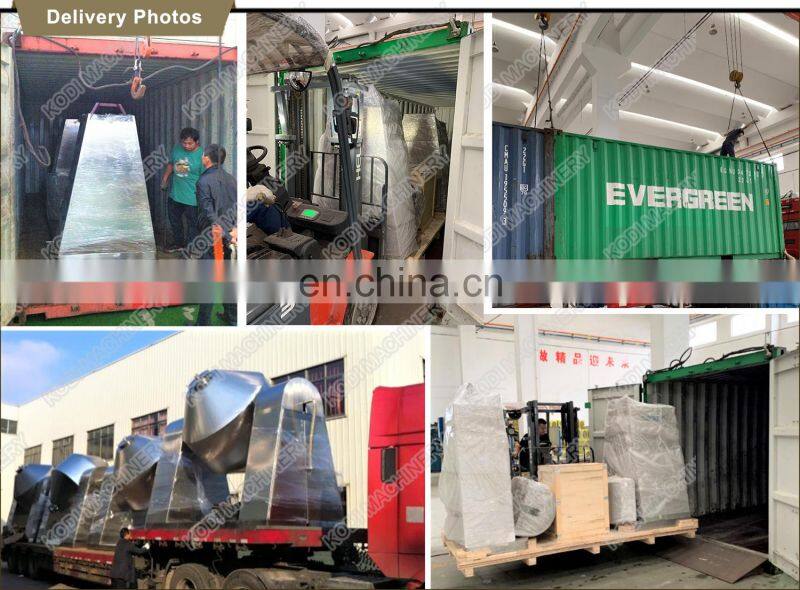

Packing & Delivery
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
About KODI
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, rotary Vacuum Dryer, Double Cone Vacuum Dryer, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, rotary Vacuum Dryer, Double Cone Vacuum Dryer, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Service
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right Double Cone vacuum dryer / rotary Vacuum Dryer, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
In order to quota you the right Double Cone vacuum dryer / rotary Vacuum Dryer, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
Contact Us
- Changzhou Kodi Machinery Co., Ltd.
Product Categories
| Drying Machine | Evaporator | Filter Machine | Granulation Machine |
| Mixer Grinder and Sifter | Packaging Line | packaging machine | Reactor |
| Rice Process Line | Tank | Ungrouped |
New Products
-
KODI FG Model Industrial Vertical Fluid Bed Dryer
-
KODI FG Model Milk Powder Granule Vertical Fluid Bed Drying Equipment
-
KODI FG Industrial Aerosol Powder Fluidized Bed Dryer
-
KODI FG Model Pharmaceutical Vertical Fluid Bed Dryer Pharma Machinery
-
KODI FG Model Chocolate Powder Vertical Fluid Bed Dryer Machine
-
KODI FG Series Fluidized Bed Dryer For Coffee Powder
-
KODI FG Model 150L Industrial Granulator Fluidized Bed Dryer
-
KODI FG Laboratory Fluid Bed Dryer For Salt
-
KODI FG Fertilizer Granulator Fluidized Bed Drying Equipment
-
KODI FG Model Pharmaceutical Fluidized Bed Drying Equipment
-
KODI FG ISO Powder Batch Dryer Fluid-bed Dryer Machine
-
KODI FG Series Fluid Bed Dryer For Medicine Granules
-
KODI FG Series Lab Fluid Bed Dryer For Pharmaceutical
-
KODI GMP Standard FBD Fluid Bed Dryer Machine
-
KODI Industrial Fluidized Bed Dryer For Coconut Powder
-
KODI Industrial High Efficiency Casein Fluid Bed Dryer
-
KODI 5kg Lab Scale Yeast Powder Fluidized Bed Dryer
-
KODI Industrial Chicken Essence Fluid Bed Drying Equipment
-
KODI Powder Fluidized Bed Drying Machine With Coating Equipment
-
KODI FL Fluid Bed Granulet Pellet Granulator Drying Machine
-
KODI FL Model Aeromatic Powder Fluid Bed Dryer & Granulator
-
KODI FL Batch Type Fluid Bed Granulator And Dryer
-
KODI FL Fluid Bed Granulator and Dryer For Seasoning
-
KODI FL Series Fluid Bed Granulator and Dryer For Coconut Powder
Popular Searches
- tube bundle dryer
- fluid bed dryer
- dryer equipment
- spray drying equipment
- vacuum dryer
- plate drying machine
- industrial dryer
- rotary drum dryer
- cross joint shaft
- rotary dryer
- drum dryer
- vacuum drying equipment
- rotary drying equipment
- dryer oven
- spray dryer
- rotary dryer machine
- industrial rotary dryer
- rotary drying machine
- hopper dryer
- hopper drying machine
- freeze dryer
- industrial centrifugal dryer
- cowpea seed
- blood gas machine
- drier machine
- lab spray dryer
- drier equipment
- air tunnel
- air drying
- mineral dryer
Recommended Products
- Yosion Technology YH-9423A Drying Oven;Industrial Oven;Trolley Oven
- Peptide White Powder Spray Dryer Stainless Steel Plant Protein Spray Drying Equipment
- Yosion Technology YH-D2000T Drying Oven;Industrial Oven;Trolley Oven
- Yosion Technology YH-9623A Drying Oven;Industrial Oven;Sample Preparation Equipment
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- .[Energy Efficiency Certified] [24KW Motor/90KG Fuel] Vacuum Dryer for Wood Chips/Straw Drying [Jinan Hengyuruntai Supplier]
- Freeze Dryer
- Vacuum Freeze Dryer
Find Similar Products By Category
- Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Changzhou Kodi Machinery Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
sales
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
