Home > Products > Drying Machine > KODI Industrial Chicken Essence Fluid Bed Drying Equipment

Share|

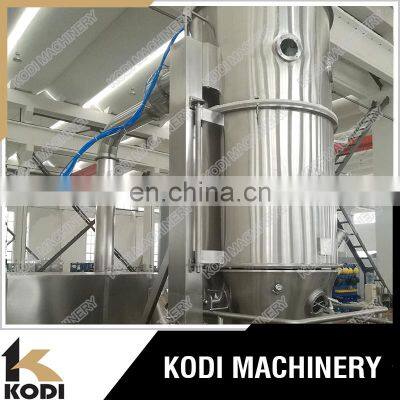

KODI Industrial Chicken Essence Fluid Bed Drying Equipment

Name: KODI Industrial Chicken Essence Fluid Bed Drying Equipment
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

FG Series Fluid Bed Drying Equipment Fluidized Bed Dryer Price
1. Drying machine fluid bed dryer / Fluid bed drying equipment / Fluidized bed dryer price
2. No dead corner, easy to clean
3. Wide application
4 .Fast in drying
5. No powder or dust flying in system

FG Pharma Fluid Bed Dryer Applications
1. Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing
2. Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries and so on.
3. The raw material that large in granule and small in block and having adhesive property.
4. Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.

Features of FG Vertical Pharma Fluid Bed Dryer
1,The structure of fluidization bed is round so as to avoid the dead angle
2,Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow
3,The granule is discharged through the method of turning over. In this way it is very convenient. The discharging system can be designed as required too
4,It is operated at the condition of negative pressure and seal. The air is filtered. Therefore it is simple in operation and
convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.
5,The drying speed is fast and the temperature is uniform. In general, the drying time is 15-45 minutes each batch

Working Principle of FG Vertical Fluid Bed Dryer
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

FG Vertical Fluid Bed Dryer Technical Parameters

Specification

Item	Unit	3	5	30	60	120	200	300	500
Material tank（Diameter）	Mm	300	400	700	1000	1200	1400	1600	1800
Material tank（Volume）	L	12	22	100	220	420	670	1000	1500
Production capacity（Min.）	Kg/batch	1.5	4	15	30	80	100	150	250
Production capacity（Max.）	Kg/batch	4	6	36	72	140	240	360	600
Steam consumption	Kg/batch	12	23	70	140	211	282	366	465
Compressed air consumption	M³/min	0.3	0.3	0.3	0.6	0.6	0.9	1.1	1.6
Fan power	Kw	2.2	2.2	5.5	11	18.5	22	30	45
Temperature	℃	Normal temperature ~ 120℃(auto-adjusting)
Product rate	%	>99
Final moisture content	%	~ 0.2
Noise	dB(A)	≤75
Main machine height	Mm	2100	2300	2500	3000	3300	3800	4000	4400

Successful Experience Overseas By KODI FG Vertical Fluid Bed Dryer

Packing & Delivery

Company Profile

Why Choose KODI

* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report

About KODI

Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150 km away from Shanghai city, with a comfortable environment and convenient transportation access.

KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), LPG Spray dryer, Food ingredients spray dryer, Industrial spray dryer, egg spray dryer / Collagen Spray Dryer / Enzymes Spray Dryer, Whey spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.

We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.

KODI company also has a lot of top talent which have more than 15 years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as China, Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.

We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!

Our Service

Pre-sale service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;

Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.

After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.

Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.

FAQ

Special Notice:

In order to quota you the right egg spray dryer / Collagen Spray Dryer / Enzymes Spray Dryer with best price, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?

Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you 1 hour to get Changzhou.Or we can visit you in Shanghai.

Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.

Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.

Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.

Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
