Pharmaceutical Equipment Suppository Filling and Sealing Machine Manufacturer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Technology Supercritical Fluid Extraction Plant / Supercritical Co2 Extraction Machine / EquipmentNegotiableMOQ: 1 -
Supercritical CO2 Fluid Extraction Machine/essential Oil/plant/herb Oil ExtractorNegotiableMOQ: 1
-
SINOPED 2021 New High Quality CGN-208D Pro JTJ-V Semi Automatic Capsule Filling MachineNegotiableMOQ: 1
-
Latest Model Free Mold Pharmaceutical Semi-automatic Semi Automatic Hard Gelatin Capsule Filler Capsule Filling MachineNegotiableMOQ: 1
-
CGN-208D Pharmaceutical Grade Semi-automatic Capsule Filling Machine for Herb Powder and Hard Gelatin CapsulesNegotiableMOQ: 1
Product Description
SN-7 automatic suppository filling production line has a stable and efficient system of tape, filling, freezing, sealing and other production processes to complete the process of the whole bolt, whose production capacity is 8000-12000 tablets / hour.
Working Principle:
Put the roll of packaging material（PVC、PVC/PE）into the molding area through the clamping mechanism.→Preheat the mold→Heat the Mould→Forming→Blowing→Blow bubbles. Triangle knife trimming process (cut bottom)→Cut dashed line (torn line).
Put the roll of packaging material（PVC、PVC/PE）into the molding area through the clamping mechanism.→Preheat the mold→Heat the Mould→Forming→Blowing→Blow bubbles. Triangle knife trimming process (cut bottom)→Cut dashed line (torn line).
Equipment advantages:
Detection function:

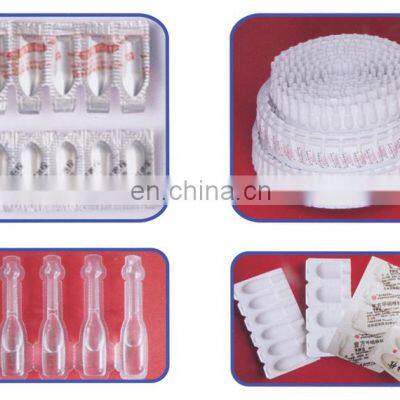

1. suppository automatic production line is suitable for the production of bullet-shaped, torpedo-shaped, duckbill-shaped and other special shape of suppositories. It can meet your company’s request.(We can make new mode according to your specific requirements)
2. The equipment uses PLC programmable control and man-machine interface operation. It is easy to operate and adjust and it has accurate temperature control and smooth operation.
3. Temperature sensor and microcomputer control system can achieve high precision thermostatic control.
4. The liquid storage tank is made of 316L stainless steel with appropriate volume, insulation and heating function, which can control temperature accurately; The liquid storage tank has a mixing device to ensure the uniformity of the liquid in the tank; The tank is connected to the filling mechanism through the pipeline. The liquid with drug which is maintained in a needed temperature is circuiting to ensure the fluidity of the liquid and meet the filling demand.
5. The use of plug-in linear perfusion mechanism ensures positioning accuracy, no drops, no drops on wall; Single grain measurement is 0.5-5ml. Filling error is ± 2%.
6. Continuous cooling molding will make sure that the suppository can be fully cooled and can achieve liquid-solid conversion.

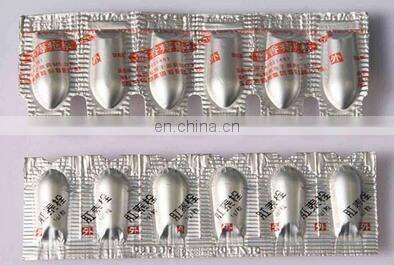

7. Continuous tape and sealing. The batch number will be printed during the sealing process. The product should be sealed intactly and neatly. It’s yield is no less than 98%.
Detection function:
1. suppository automatic production line is suitable for the production of bullet-shaped, torpedo-shaped, duckbill-shaped and other special shape of suppositories. It can meet your company’s request.(We can make new mode according to your specific requirements)
2. The equipment uses PLC programmable control and man-machine interface operation. It is easy to operate and adjust and it has accurate temperature control and smooth operation.
3. Temperature sensor and microcomputer control system can achieve high precision thermostatic control.
4. The liquid storage tank is made of 316L stainless steel with appropriate volume, insulation and heating function, which can control temperature accurately; The liquid storage tank has a mixing device to ensure the uniformity of the liquid in the tank; The tank is connected to the filling mechanism through the pipeline. The liquid with drug which is maintained in a needed temperature is circuiting to ensure the fluidity of the liquid and meet the filling demand.
5. The use of plug-in linear perfusion mechanism ensures positioning accuracy, no drops, no drops on wall; Single grain measurement is 0.5-5ml. Filling error is ± 2%.
6. Continuous cooling molding will make sure that the suppository can be fully cooled and can achieve liquid-solid conversion.
7. Continuous tape and sealing. The batch number will be printed during the sealing process. The product should be sealed intactly and neatly. It’s yield is no less than 98%.
Specification
Device name |
Automatic suppository production line |
Model |
SN-7 |
|||
Output
|
8000—12000（grain/h） |
single dosage |
0.5—5ml |
|||
Dosage allowed |
＜±2% |
Packaging Film |
PVC PVCPE
Thickness 0.15mm
|
|||
Store the capacity of the liquid barrel |
70L |
atmospheric pressure |
≥0.6Mpa |
|||
consume the tolerance |
1.5m3 |
water quantity |
50kg (recycle) |
|||
the voltage of the power |
(Three-phase communication) 380V |
total power |
7.5KW |
|||
form |
Bullet type, torpedo type, duckbill shape and other shapes |
Weight |
2t |
|||
adapt to the host |
Synthetic fatty acid glycerides, glycerinated gelatin, polyethylene glycol, etc. |
Each distance of suppository |
17.4mm |
|||
External dimension |
(length)4950mm×(width)2140mm×(height)2100mm |
|||||
