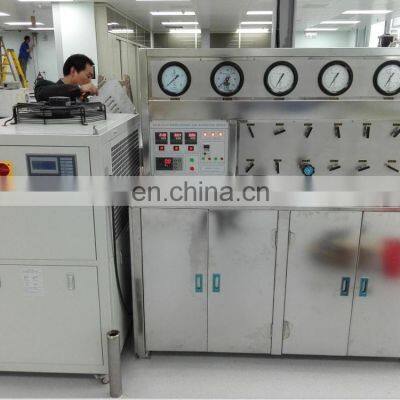

Supercritical CO2 Fluid Extraction Machine/essential Oil/plant/herb Oil Extractor photo-2

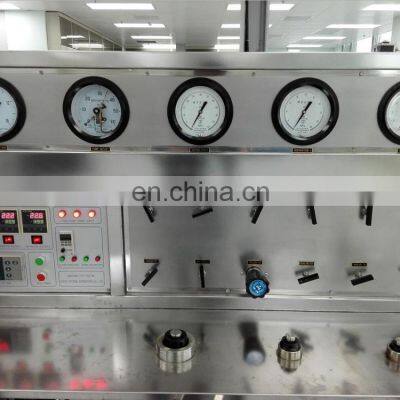

Supercritical CO2 Fluid Extraction Machine/essential Oil/plant/herb Oil Extractor photo-3

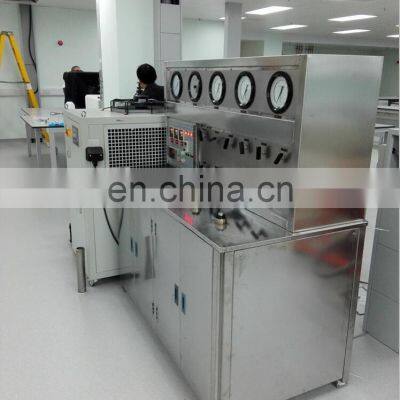

Supercritical CO2 Fluid Extraction Machine/essential Oil/plant/herb Oil Extractor photo-4

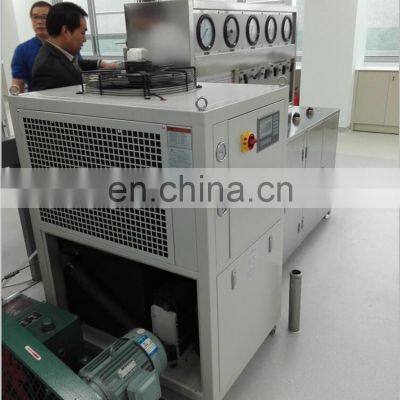

Supercritical CO2 Fluid Extraction Machine/essential Oil/plant/herb Oil Extractor photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
The Super Critical fluid technology is a new-type separation technology in modern chemical separation. TheSuper Critical extraction takesCO2 as the solvent. AsCO2 fluid under Super Critical state has larger density anddielectric constant, larger dissolvability against substances, which can change abruptly when pressure and temperaturechange therefore it has not only the selection of dissolvability against some substances, the separation of the solventwith the extracted substances is also easily.

The Super CriticalCO2 extraction is specially suitable for extraction offat-soluble and heat sensitive substances with high boiling point, and is suitable for fine separation of differentcomponents, i.e. Super Critical fine distillation.

Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological productsfoodstuff and medicines.

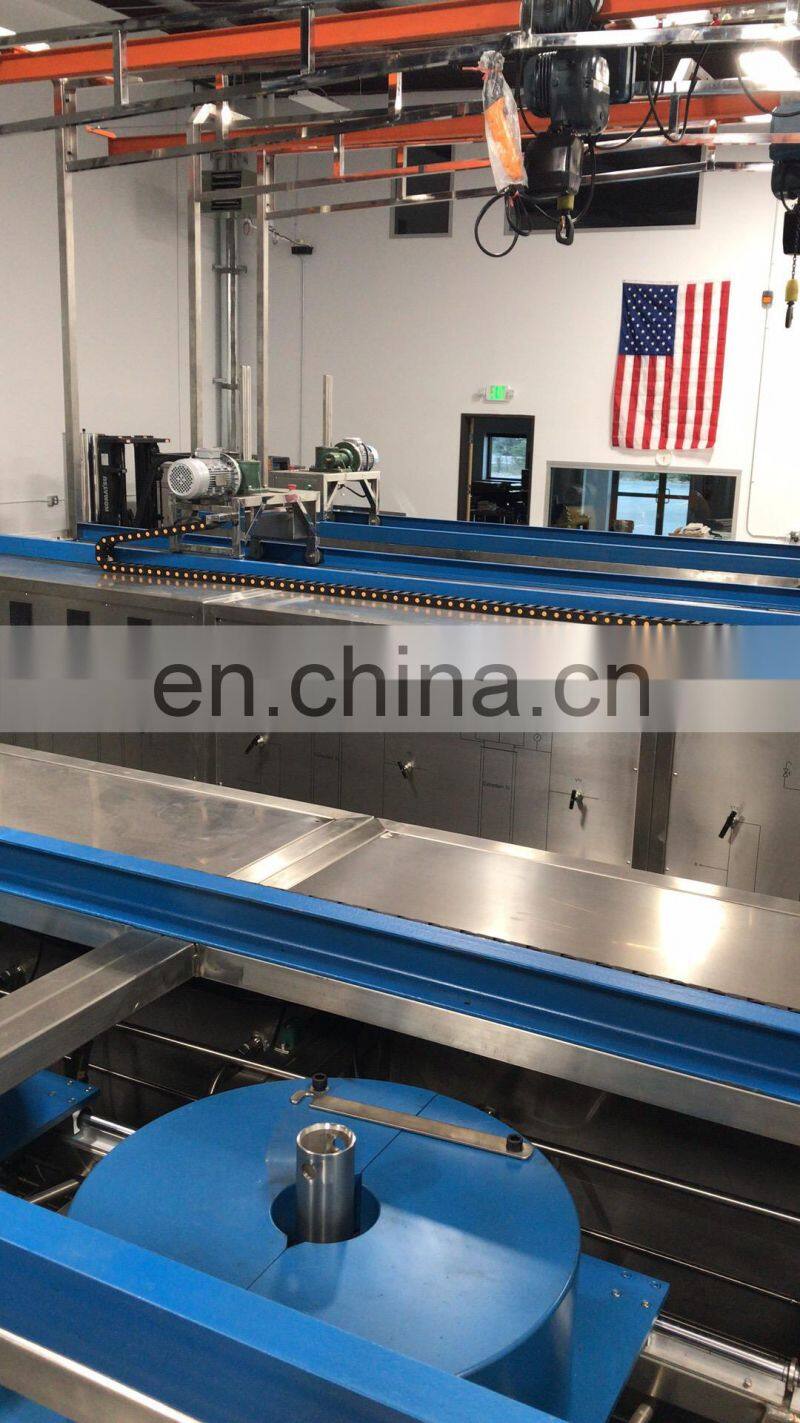

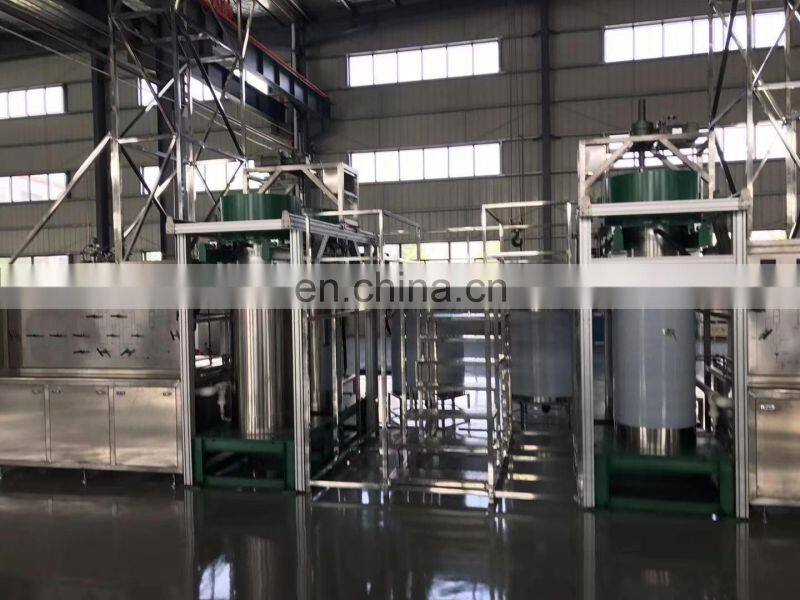

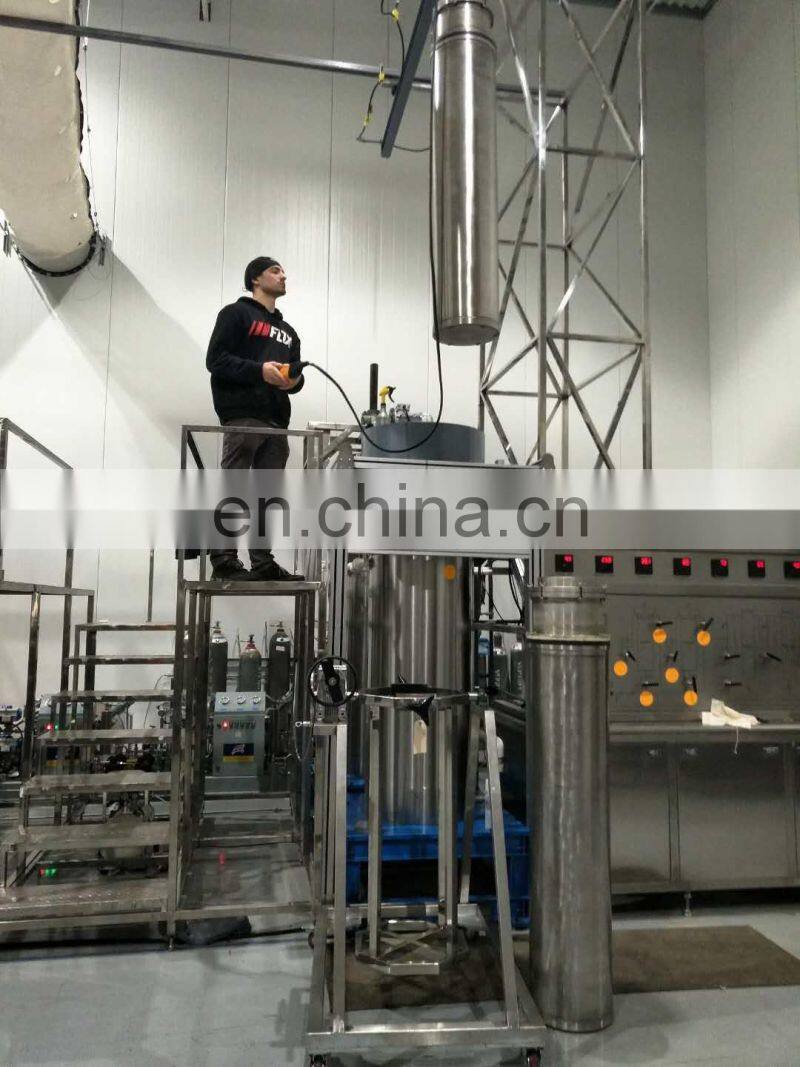

Detailed Images
For Supercritical CO2 Fluid Extraction Machine installation, small model suggest video training, big model engineer can go to customers factory, whole life technical support.
Technical Specification
TECHNICAL SPECIFICATIONS
No.
Model
Capacity
Pressure
(Mpa)
Power
(KW)
Temperature
CO2 Pump
Flow (L/H)
Dimension
(mm)
1
SN-0.5
0.5L
50
10
85℃
50
2500*2500*1600
2
SN-1
1L
50
10
85℃
50
2500*2500*1600
3
SN-5
5L
50
18
85℃
50
2500*2500*1600
4
SN-10
10L
40
18
85℃
100
3000*2500*1600
5
SN-20
10L*2
40
25
85℃
200
3000*3000*1800
6
SN-30
10L*3
40
30
85℃
210
5000*4800*1800
7
SN-48
24L*2
40
45
85℃
400
5000*5000*4200
8
SN-96
24L*4
40
58
85℃
600
5800*5000*4200
9
SN-100
50L*2
40
60
85℃
800
6200*6000*4500
10
SN-120
30L*4
40
60
85℃
800
6800*6000*4500
11
SN-150
50L*3
40
63
85℃
1000
7200*6000*4500
12
SN-200
50L*4
40
65
85℃
1000
7800*7000*4500
Principle

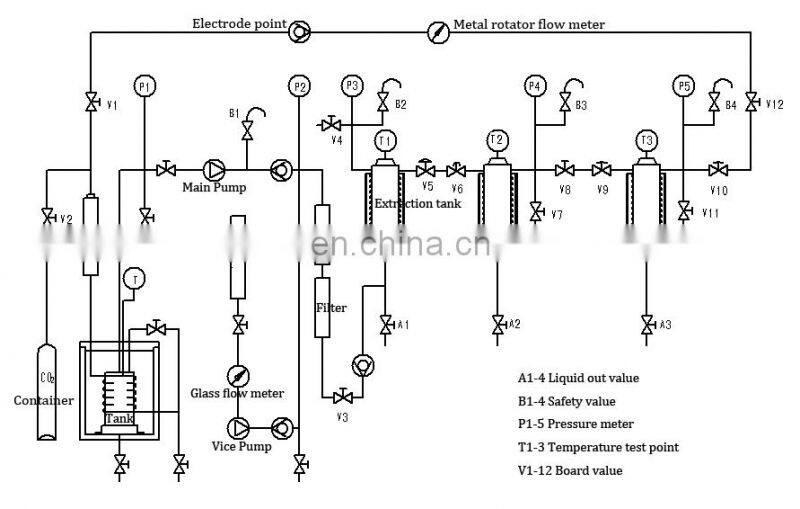

Working Principle

The Supercritical CO2 Oil Extraction Machine/Equipment is suitable for producing pharmaceutical and various essential oil and hemp oil extraction , herbal and plant oil extraction. It is widely used to produce the garlic oil, essential oil, rose oil, caffeine, fructus hippophae etc.

1. What is supercritical Co2 fluid:
Supercritical Co2 is a fluid state, which occurs at or above its critical temperature 31.1 C and critical pressure 7.38 0 bar.
2. Characteristics’ of Supercritical Co2 Fluid:
a. Density under gas and liquid phase, close to liquid, or namely as dense gas, dissolve ability close to liquid.
b. Viscosity between gas and liquid phase, close to gas.
c. Diffusion coefficient between gas and liquid, much bigger than liquid phase, strong penetrability.

3. Supercritical Co2 Fluid Application
a. Food industries
b. Medical care food industries
c. The effective components in Chinese herbal medicine extraction
d. Extraction of natural flavors and fragrances
e. Natural pigment extraction

Packing&Shipping
The normal package is inside plastic film, outside standard export wooden box. We also can pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Introduction

Sino Pharmaceutical Equipment Development (Group) Limited (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China.


We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, fermentors, centrifuges, granulators, mixers, spray dryer, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.

In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.

In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.

Related Products

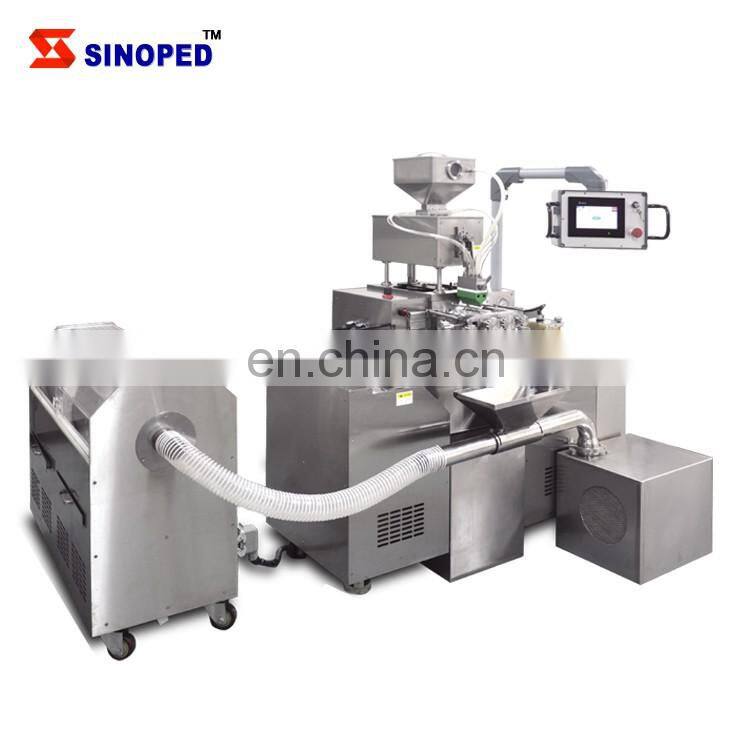

Softgel Encapsulation Machine

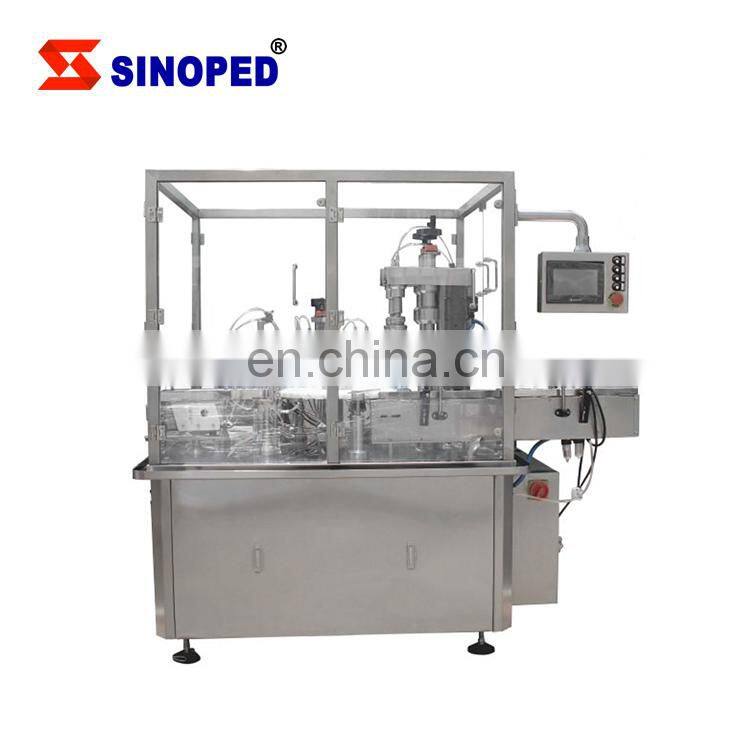

Essential Oil Filling Machine
