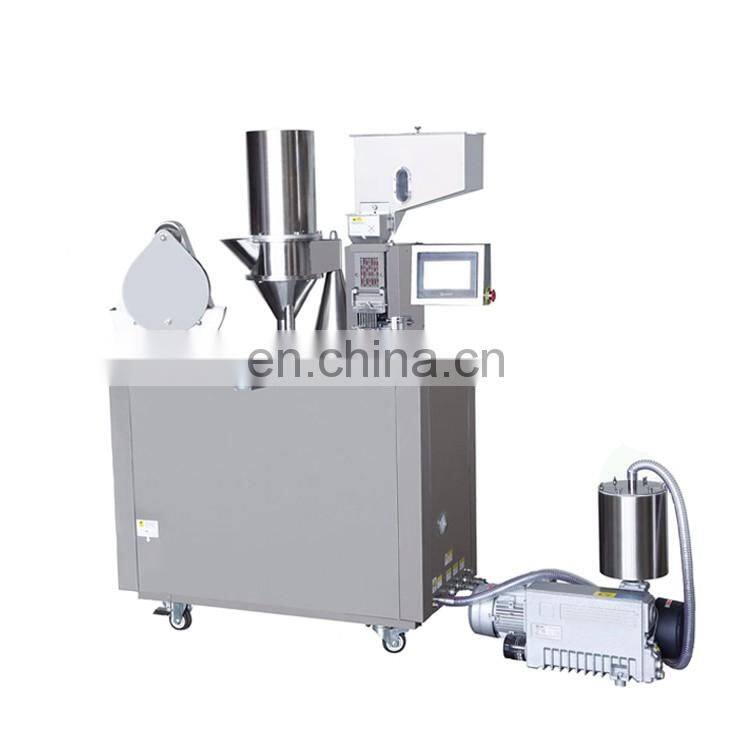

CGN-208D Pharmaceutical Grade Semi-automatic Capsule Filling Machine for Herb Powder and Hard Gelatin Capsules

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

CGN-208D2 Pharmaceutical grade

semi-automatic capsule filling machine

Product Application

CGN-208D2 Pharmaceutical grade semi-automatic capsule filling machine for herb powder and hard gelatin capsules, which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with power and grain.

This Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.

The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump. With automatic locking capsules and automatic discharging function.

China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 98%.

Item	Semi automatic pill capsule filling machine manual price
Productivity	1-25,000 granules/h
Applicable capsules	00# 0#, 1#, 2#, 3#, 4#,5#
Filled medicine type	Not adhesive or wet powders and small granules
Total power	2.12Kw
Air pressure	0.03m3/min, 0.7MPa
Vacuum pump	evacuating rate: 40m3/h
External dimensions	15007801800mm (LWH)
Weight	330Kg

Main Features

1) CGN-208D1 Pharmaceutical grade semi-automatic capsule filling machine is controlled by step-less frequency conversion and pneumatic device, and adopts electronic counter.

2)CGN-208D1 Pharmaceutical grade semi-automatic capsule filling machine can finish position, separation, filling, locking of capsule, and reduce the labor intensity and improve working efficiency.

Detailed Image

Different structure of different model capsule filling machine:

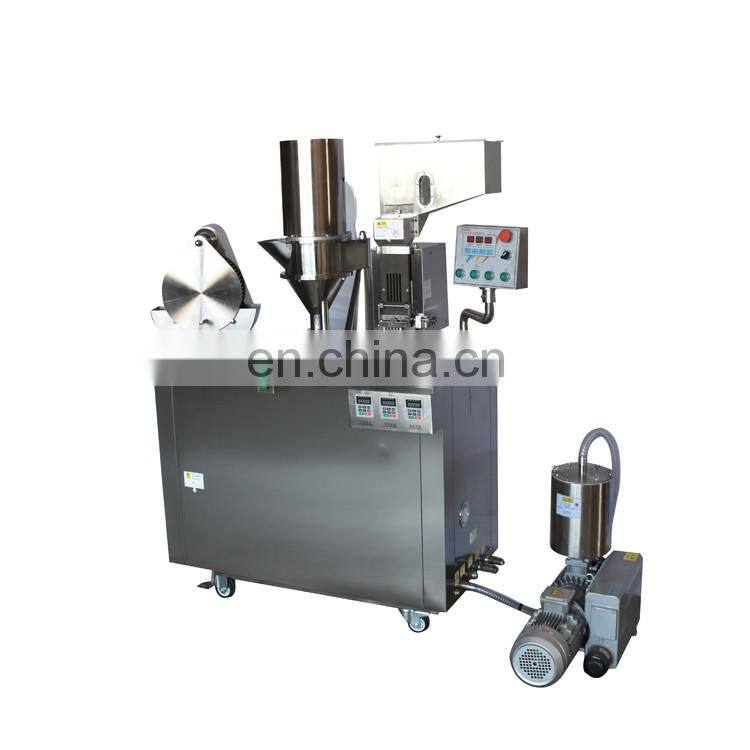

JTJ-I/CGN208-D

JTJ-I semi automatic capsule filling machine is same function with the CGN208-D. Adopt buttom operate.

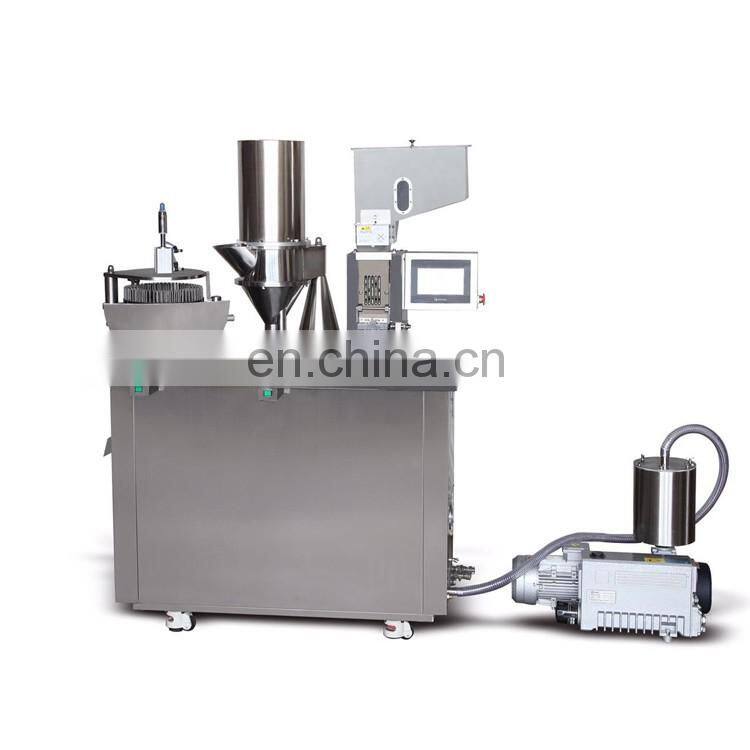

JTJ-II/CGN208-D1

JTJ-II Semi automatic capsule filling machine is same function with the CGN208-D1. Adopt PLC touch screen control.

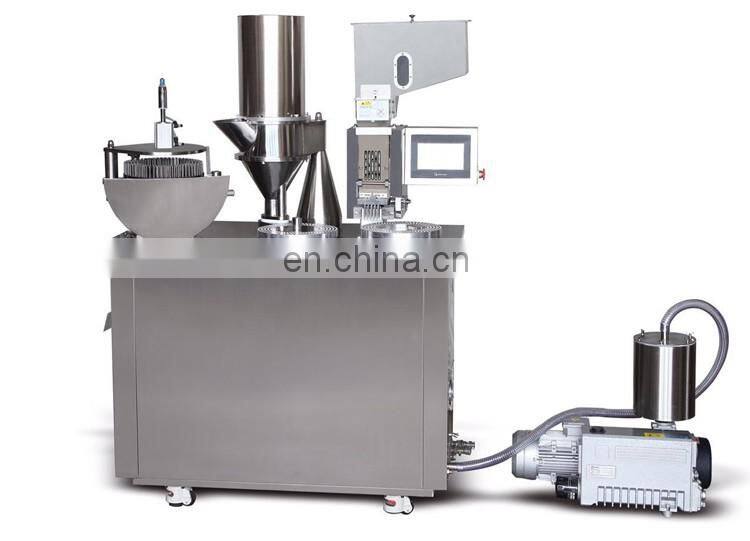

JTJ-III/CGN208-D2

JTJ-III Semi automatic capsule filling machine is same function with the CGN208-D2. Adopt PLC touch screen control and horizontal automatic capsule locking device.

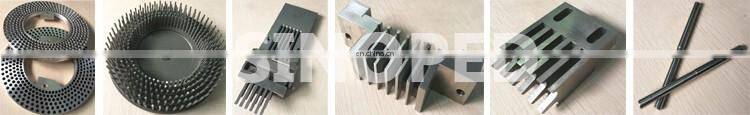

Whole set mold for capsule filling machine:

Purchase together with discount!!!

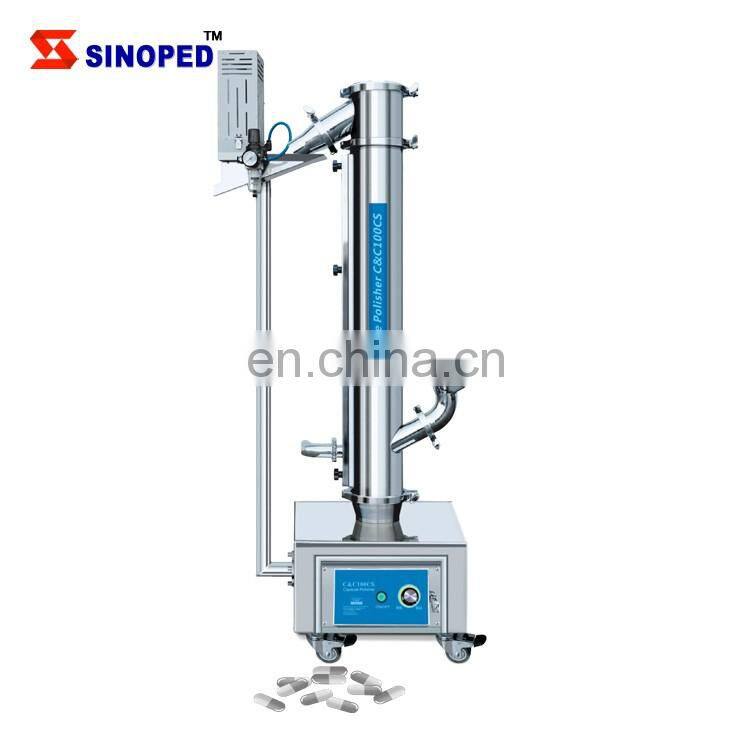

High speed vertical capsule polisher with sorting device

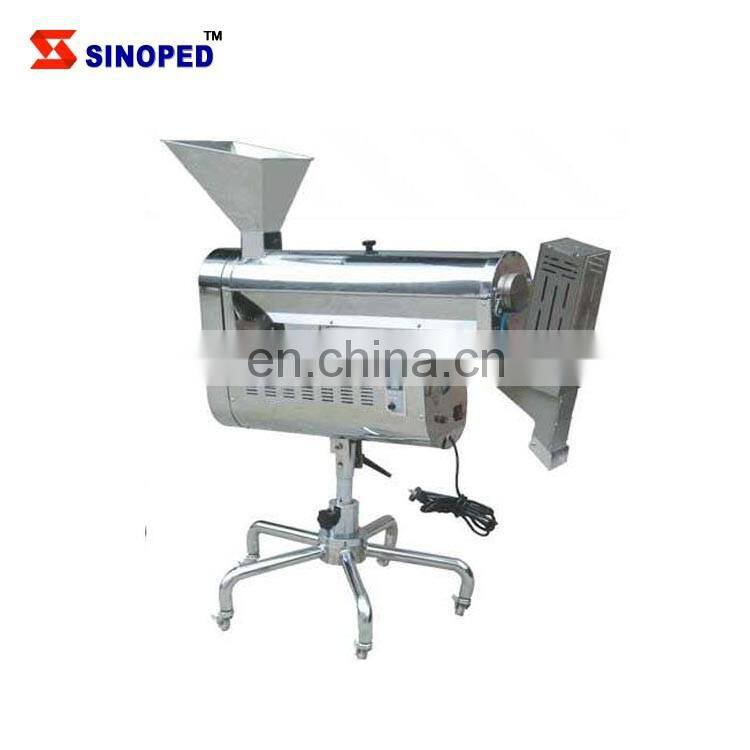

Horizontal capsule polisher with sorting device

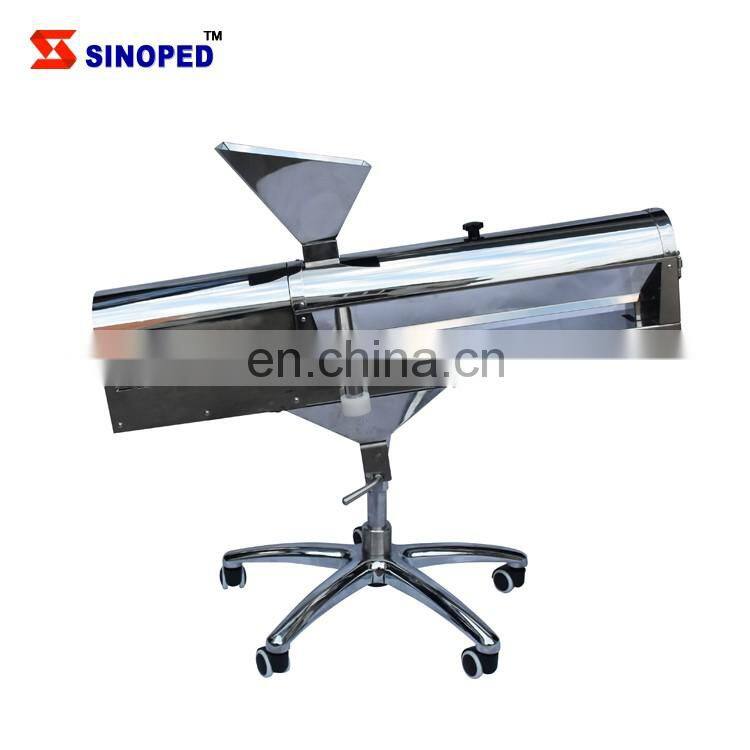

Horizontal Capsule polisher

Packing & Delivery

Packaging for capsule filling machine
Size	16508001750mm
Weight	450kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Recommend Products

Our Company

Our customers

Packaging & Shipping

Feedback

FAQ

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by
yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
