Low Temperature Cryogenic Globe Valve Class 150 ~Class 600
- Shanghai Port
- T/T L/C D/P D/A
- 25 days
You May Like
-
China High Quality Split Body WCB Body Aluminum Oxide Y Pattern Slurry Valve for Alumina Slurry Special Valve
-
Cryogenic Gas Control Valve Extended Stem Globe Valve With Wheel Handle
-
Butt Weld Stainless Steel Globe Valve Cryogenic Globe Valve With Extend Stem
-
Cryogenic Gas Control Valve Extended Stem Globe Valve for LNG Lox Lin Lco2 Application
-
Cryogenic Globe Valve With Super Long Extension Rod Stainless Steel Globe Valve
-
Stainless Steel Butt Weld End Low Temperature Cryogenic Globe Valve for LNG Lox Lin Lco2 Application
Product Details
| Brand Name | FREE-VALVE | Place of Origin | China | |
| Model Number | DJ61F-40P | Material | Casting | |
| Application | General | Structure | Stop | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Power | Manual | Port Size | DN10-40 MM | |
| Media | Other, LNG | Temperature of Media | Medium Temperature |
Product Description
FREE-VALVE’s Low Temperature Cryogenic Globe Valves are specially designed for gas treatment processes and storage and transportation of liquefied gasses,such as LO2,LN2 ,LAr,LNG etc.
Features :
1. The extended valve bonnet with sufficient gas column length, usually specified by customer, to keep stem packing at sufficient distance away from the cold fluid and make the valve open and close flexibly.
2.The packing adopts flexible graphite or PTFE combined structure, which has good low temperature resistance performance.
3.The sealing ring adopts reinforcing PTFE ,which could keep the valve tight sealing performance at the lower temperature
4. Small valve opening and closing stroke and need less working space.
5.All parts adopt liquid nitrogen for low temperature pretreatment, completely avoid sealing deformation and leakage during usage
Application
liquefied natural gas
ethylene
tank services
gas production plants
compressed natural gas

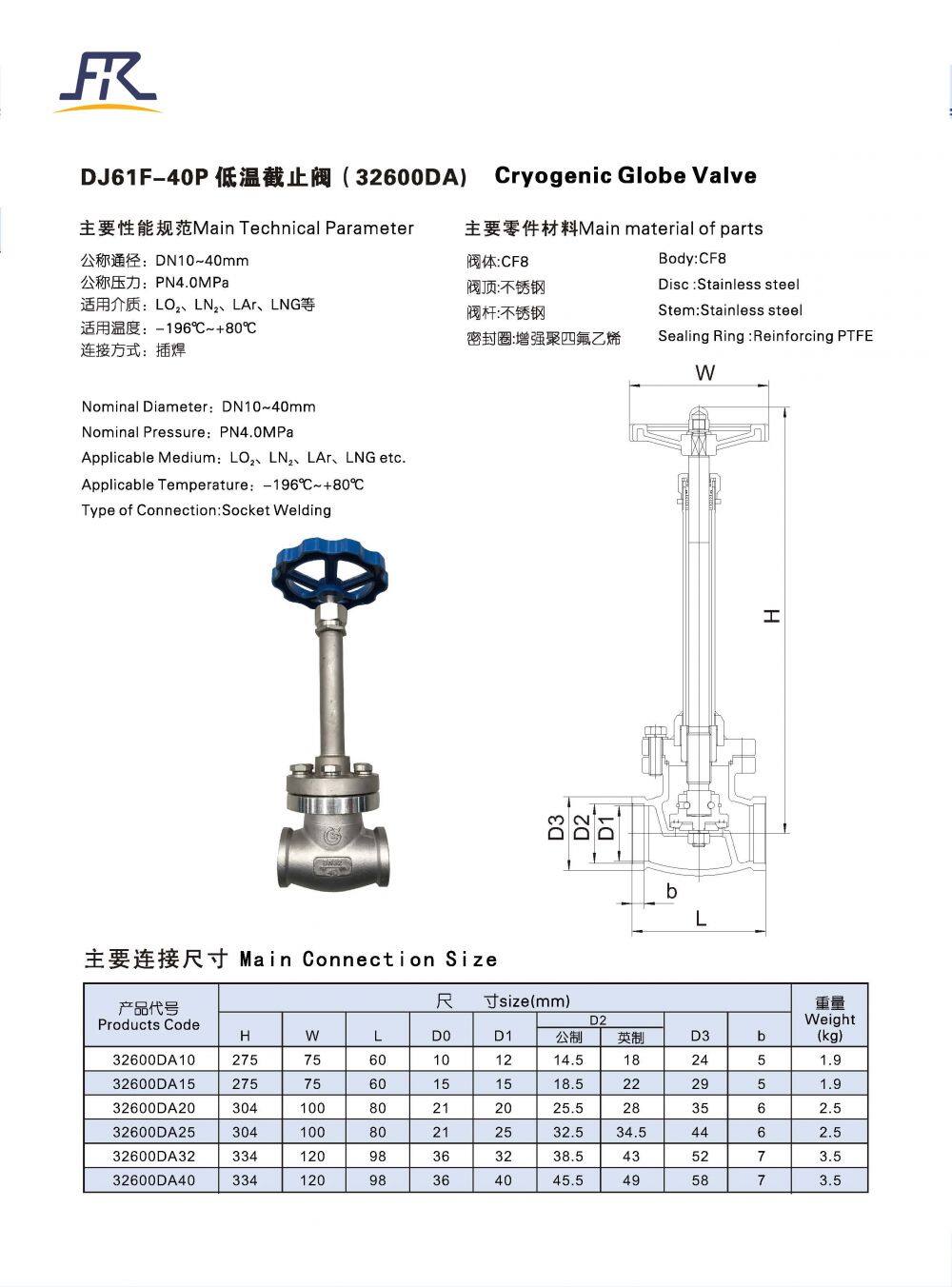

Model:DJ61F-40P
Price:100-2000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:Free_Valve
Email:marketing@free-valve.com
Skype:marketing@free-valve.com
What’s app:+8613460250295
Mobile:+19937155563
