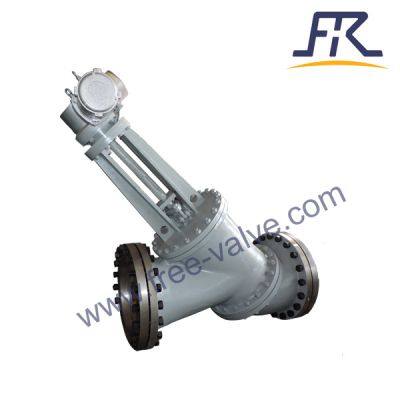

JIS10K Gear Actuator Flange End Connection Y Pattern Type Globe Slurry Valve for Alumina Slurry Special Valve

Name: JIS10K Gear Actuator Flange End Connection Y Pattern Type Globe Slurry Valve for Alumina Slurry Special Valve
Brand: FREE-VALVE
SKU: 170244363
Availability: InStock

Zhengzhou Free Fluid Control Technology Co.,ltd

JIS10K Gear Actuator Flange End Connection Y Pattern Type Globe Slurry Valve for Alumina Slurry Special Valve thumbnail-1

JIS10K Gear Actuator Flange End Connection Y Pattern Type Globe Slurry Valve for Alumina Slurry Special Valve thumbnail-2

JIS10K Gear Actuator Flange End Connection Y Pattern Type Globe Slurry Valve for Alumina Slurry Special Valve thumbnail-3

JIS10K Gear Actuator Flange End Connection Y Pattern Type Globe Slurry Valve for Alumina Slurry Special Valve photo-1

JIS10K Gear Actuator Flange End Connection Y Pattern Type Globe Slurry Valve for Alumina Slurry Special Valve photo-2

JIS10K Gear Actuator Flange End Connection Y Pattern Type Globe Slurry Valve for Alumina Slurry Special Valve photo-3

US$ 100 - 300 MOQ: 2 Sets

Key Specifications

Get Latest Price

Brand Name:

FREE-VALVE

Place of Origin:

China

Model Number:

FRJ945Y

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

25 days

Product Details
Company Profile
Contact Us

Brand Name FREE-VALVE

Place of Origin China

Model Number FRJ945Y

Material Casting

Application General

Structure Angle

Standard or Nonstandard Standard

Pressure Medium Pressure

Power Pneumatic

Port Size DN600

Media Water

Temperature of Media High Temperature

FREE-VALVE’s JIS10K Gear actuator Flange end Connection Y Pattern Type Globe Slurry valve is ideal for many applications because the valves are designed for use on abrasion materials. JIS10K Gear actuator Flange end Connection Y Pattern Type Globe Slurry valve is divided into left and right parts with a seat between them. The bolt connecting the two parts can be dissembled to replace the valve seat.The valve with abrasion resistance,high pressure resistance,erosion resistance and anti-scabbing performance. JIS10K Gear actuator Flange end Connection Y Pattern Type Globe Slurry valve is specially offered for controlling or stopping the slurry, the slurry valves are used primarily in the alumina,metallurgy , chemical fertilizer and mining industry.

Features

1. The valve body is split type body,it is divided into left and right parts with a seat between them. The seat is installed between the two valve body ,so the seat can be replaced easily .

2. An anti-washing and anti-corrosion protection stem is set in the cavity of the valve body.

3. 2PC FRJ945Y Y type electric control slurry globe valve has a good abrasion resistance with higher hardness because Full Stellite or Tungsten carbide overlaying seat sealing surface.

4. Anti-washing and anti corrosion protection plate is set in the cavity of the valve body .

5. A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.

Technical Specification:

Flange connection:ASME B16.5,GB/T9113

Design standard:ASME B16.34

Pressure Range:Class150~Class600

Size Range:DN50~DN 600, NPS2~NPS24

Material:carbon steel, stainless steel

Connection type:Flange

Suitable Temperature:≤425℃

Operating Type:Pneumatic, manual, electric

Sealing surface material:Alloy
