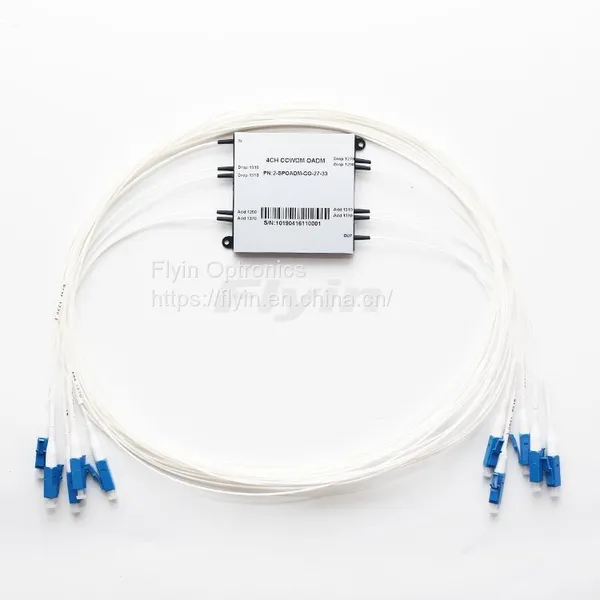

4/8-CH Compact CWDM OADM Mux/Demux module
USD $1 - $500
/ Piece
10 Pieces(Min.Order)
- 40000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | flyin | Place of Origin: | China | Model Number: | CCWDM |
Product Description
Flyin’s compact size Coarse Wavelength Division Multiplexers(Mini CWDM, Compact CWDM, CCWDM), are integrated optical modules using Flyin’s proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost. Compare to the common standard CWDM module, Flyin's Mini CWDM takes much smaller package size. Much space can be saved in the application and meanwhile the performance and parameters are also better.All Flyin's CWDM modules are Telcordia qualified.(Meet TELCORDIA GR-1221-CORE)
Number of Channels:
4 Channels 8 Channels N Channels
Express Port:
None 1310 (+/-50nm) 1260~1458nm Specify
1st Channel:
1270nm 1470nm 1490nm 1610nm Specify
Package:
44x28x6mm 53.8x28x8mm 50x50x6mm Specify
Fiber Diameter:
250μm 900μm
Fiber Length:
1m 2m Specify
In/Out Connector:
None FC/APC FC/UPC SC/APC SC/UPC LC/APC LC/UPC ST Specify
Features | Applications |
Low Insertion Loss | Line Monitoring |
Wide Passband | WDM Network |
High Channel Isolation | Telecommunication |
High Stability and reliability | Cellular Application |
Epoxy free on optical path | Fiber Optical Amplifier |
Compact size | Access Network |
Parameter | Specification | |||||
Channel Number (CH) | 4 | 8 | 8(+E1) | 8(+E2) | ||
Center Wavelength(nm) | 1270, 1290…1610 or 1271, 1291…1611 | |||||
Passband(nm) | Channels (Min.) | +/-6.5 | ||||
Upgrade port(Min.) | / | 1310+/-50 | 1260~1458 | |||
Isolation(dB) | Mux | Adjacent (Min.) | 30 | |||
Non-adjacent (Min.) | 45 | |||||
Upgrade Por?(Min.) | 15 | |||||
Demux | Adjacent (Min.) | 30 | ||||
Non-adjacent (Min.) | 45 | |||||
Upgrade Por?(Min.) | 15 | |||||
Insertion Loss(dB) | Channels (Max.) | 1.0 | 1.5 | 1.5 | 1.5 | |
Upgrade Por?(Max.) | / | / | 1.2 | 1.2 | ||
Maximum Ripple in Passband(dB) | 0.5 | |||||
Min. Directivity (dB)? | 55 | |||||
Maximum?Polarization Dependent Loss?(dB)? | ≤0.2 | |||||
Maximum?Polarization Mode Dispersion (ps) | 0.10(GD) | |||||
Min. Return Loss(dB) | 50 | |||||
Fiber Type? | Corning SMF-28e,900um Loose Tube | |||||
Fiber Length (m) | 1.0+/-0.1 | |||||
Maximum Power Handling (mW) | 500 | |||||
Opterating Temperature (℃) | -10~+70 | |||||
Storage Temperature (℃) | -40~+85 | |||||
Package dimension (mm) | Package A: (L)44.0x(W)28x(H)6.0 ??Package B: (L)53.8x(W)28x(H)8.0 |
