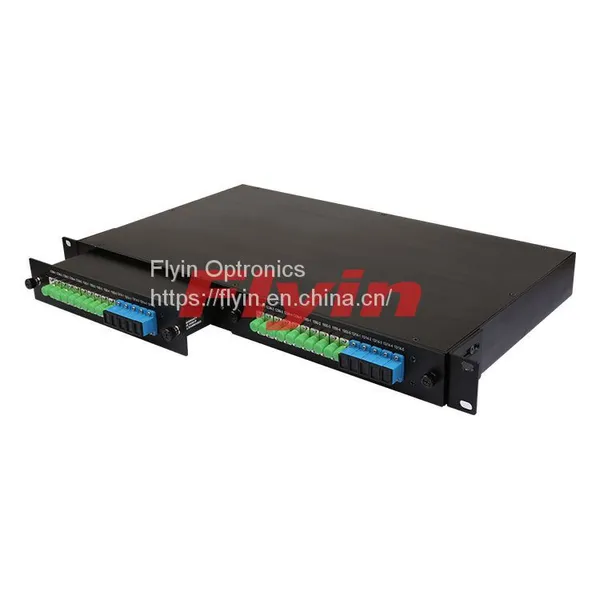

3 Port FWDM in 1U Rackmount
US$ 1 - 500
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
flyin
Place of Origin:
China
Model Number:
FWDM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
flyin
Place of Origin
China
Model Number
FWDM
Flyin Optronics' Micro-Optical WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
Order Parameters| Features | Applications |
| Wide Operating Wavelength Range | Testing Instruments |
| Low inertion loss | FTTH Tri-Play System |
| Ultra Flat Wide Passband | |
| High Channel Isolation | |
| High stability and reliability | |
| Epoxy-free on Optical Path |
| Parameter | FWDM 4/35 | FWDM 5/34 | FWDM 3/45 | FWDM 34/5 | |
| Pass Band Wavelength Range（nm） | 1480~1500 | 1540~1560 | 1260~1360 | 1260~1360&1480~1500 | |
| Reflect Band Wavelength Range（nm） | 1260~1360 | 1260~1360 | 1480~1500 | 1540~1560 | |
| Reflect Band Wavelength Range（nm） | 1540~1560 | 1480~1500 | 1540~1560 | ||
| Insertion Loss（dB） | Reflect Channel | ≤0.8 | |||
| Pass Channel | ≤1.0 | ||||
| Pass Band Rippler (dB) | |||||
| Isolation @Add/Drop Channel（dB） | Reflect Channel | >15 | |||
| Pass Channel | >30 | ||||
| Inertion Loss Temperature Sensitivity(dB/℃) | |||||
| Polarization Dependent Loss（dB） | |||||
| Polarization Mode Dispersion（ps） | |||||
| Directivity (dB) (Input to add, Output to drop, add to drop（dB） | >50 | ||||
| Return Loss（dB） | >50 | ||||
| Maximum Power Handling（mW） | 500 | ||||
| Opterating Temperature (℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| Package Dimension (mm)(LGX Box) | L180xW178(215.4)xH44 or Specify | ||||
| Package Dimension (mm)(1U Rackmount) | L432（482.6）xW250*H44 or Specify | ||||
