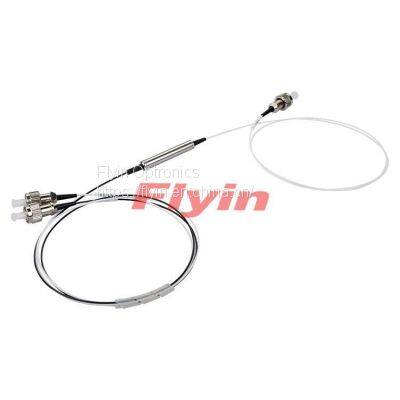

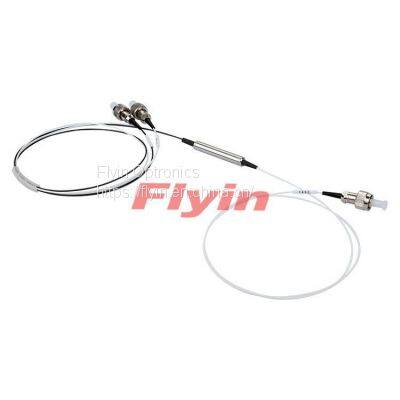

3 Ports FWDM（1310/1490/1550nm）
US$ 1 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
flyin
Place of Origin:
China
Model Number:
FWDM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
flyin
Place of Origin
China
Model Number
FWDM

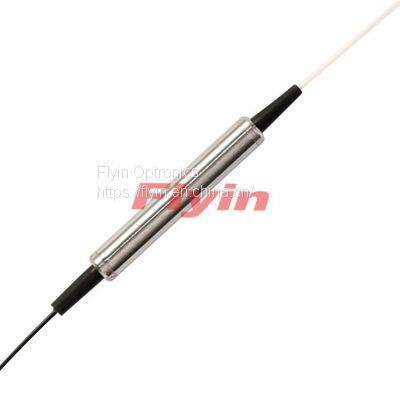

Flyin Optronics' Micro-Optical WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
Performance Specifications
Fiber Type：
250um Bare fiber 900um loose tube
Fiber Length：
1m 2m custom
In/Out Connector：
None FC/APC FC/PC SC/APC SC/PC ST LC custom
Wavelength：
1490 pass 1310&1550 reflect
1550 pass 1310&1490 reflect
1310&1490 pass 1550 reflect
| Features | Applications |
| Wide Operating Wavelength Range | Testing Instruments |
| Low inertion loss | FTTH Tri-Play System |
| Ultra Flat Wide Passband | |
| High Channel Isolation | |
| High stability and reliability | |
| Epoxy-free on Optical Path |
| Parameter | FWDM 4/35 | FWDM 5/34 | FWDM 3/45 | FWDM 34/5 | |
| Pass Band Wavelength Range （nm） | 1480~1500 | 1540~1560 | 1260~1360 | 1260~1360 & 1480~1500 | |
| Reflection Band 1 Wavelength Range（nm） | 1260~1360 | 1260~1360 | 1480~1500 | 1540~1560 | |
| Reflection Band 2 Wavelength Range （nm） | 1540~1560 | 1480~1500 | 1540~1560 | ||
| Insertion Loss（dB） | Reflect Channel | ≤0.6 | |||
| Pass Channel | ≤0.8 | ||||
| Insertion Loss Variation（dB） | |||||
| Isolation（dB） | Pass Channel | >30 | |||
| Reflect Channel | >15 | ||||
| Inertion Loss Temperature Sensitivity(dB/℃) | |||||
| Polarization Dependent Loss（dB） | |||||
| Polarization Mode Dispersion（ps） | |||||
| Directivity（dB） | >50 | ||||
| Return Loss（dB） | >50 | ||||
| Maximum Power Handling（mW） | 500 | ||||
| Opterating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| Package dimension(mm) | Φ5.5x34 (L38 for 900um Loose tube) | ||||
