Isolator/Tap Coupler/WDM Hybrid Combination Spec
- 40000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
Product Details
| Brand Name | flyin | Place of Origin | China | |
| Model Number | AWG |
Product Description
Flyin’s ITCW is a combination of a wavelength division multiplexer, tap coupler and an isolator in a compact package. This product has an extremely low insertion loss, and a very stable tap-coupling ratio. Fiber optic amplification is the ideal application for this product.
Features
Wide operating wavelength range
Compact size
High Isolation
Ultra Low PDL&PMD
Epoxy-free optical path
Application
Fiberoptic Amplifiers
CATV Fiberoptic links
WDM systems
Fiberoptic instruments
Performance Specifications
Parameters | Single Stage | Dual Stage | Unit | |||
Operating Wavelength Range | Signal Channel | C band:1528~1564 or L band:1570~1605 | nm | |||
Pump Channel | 965~995 | nm | ||||
Insertion Loss | Signal Port | <1.4 | <1.5 | dB | ||
Pump Port | <0.6 | |||||
Tap Port | 1% Tap Ratio | 19.2~21.0 | dB | |||
2% Tap Ratio | 16.2~18.0 | |||||
5% Tap Ratio | 12.2~14.0 | |||||
10 Tap Ratio | 9.6~10.8 | |||||
Wavelength Dependent Loss | Signal to Common | <0.5 | dB | |||
Wavelength Isolation | Signal to Common@Pump Wavelength Range | >30 | dB | |||
Pump to Common@Signal Wavelength Range | >12 | dB | ||||
Reverse Direction Isolation (over signal wavelength range,0~70℃,all sop) | Common to Signal | >21 | >36 | dB | ||
Polarization Dependent Loss | <0.1 | <0.2 | dB | |||
Polarization Mode Dispersion(standard) | <0.25 | <0.05 | ps | |||
Directivity | ≥50 | dB | ||||
Return Loss | ≥45 | dB | ||||
Optical Power | ≤500 | mW | ||||
Operating Temperature | -0~+70 | ℃ | ||||
Storage Temperature | -40~+85 | ℃ | ||||
Fiber Type | Signal & Tap Ports | Corning SMF-28 | - | |||
Common &Pump Ports | Corning HI1060 | |||||

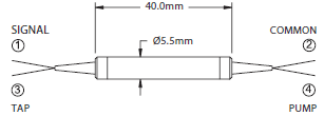

Package size | Φ5.5x40 | mm | ||||
* 900um loose tube fiber available and connectorized process available
