Help CenterAutomatic Aluminum Profiles Cnc Control Double Head Cutting Window Door Making Mitre Saw Machine
Related Products
-
Aluminum Profile Double Head Cutting Saw Window Door Making MachineUS$ 2800 - 3800MOQ: 1 Piece -
Hot Sale Corner Crimp Machine Aluminum Window Door Making MachineUS$ 1000 - 2000MOQ: 1 Piece
-
Aluminium Profile End Milling Machine Windows Aluminum Window Door Process MachineryUS$ 700 - 1000MOQ: 1 Piece
-
Hot Sale Aluminum Window And Door Punching MachineUS$ 980 - 3000MOQ: 1 Piece
-
3 Axis Cnc Bending Machine For Aluminum And Upvc Profile Aluminum Profile Bending MachineUS$ 4000 - 9000MOQ: 1 Piece

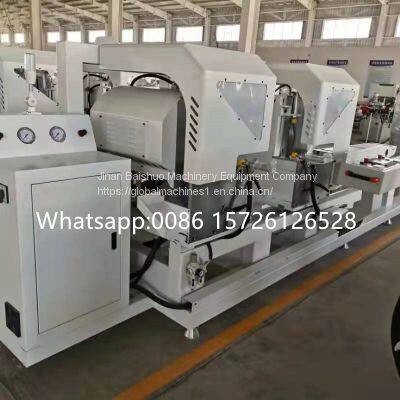

CNC Double Head Cutting Saw is Used for cutting aluminum profile, window and door frame high accurate cutting.
Imported high precision linear guiding pair ensured steady and long-term processing accuracy.
Right head move by a servo motor. Cutting angle change automatic between ±45° and 90°.
1, Used for cutting of aluminum and PVC profiles;
2, CNC controlling system, achieve various profiles automatic cutting off;
3, Adopt airdraulic damping cylinder, ensure uniform speed feeding and smooth operation;
4, High accuracy main spindle and saw blade rotate smoothly;
5, Color touching display interface;
6, Feeding system adopts imported linear guide pair, with high accuracy and stability;
7, Optional 45°, 90°and 135°cutting;
8, Functions of 45°/90° ultra short and ultra long profile cutting;
Voltage | 380V/50HZ | |
Power | 4.4KW | |
Working parameters | Saw size | D=500mm d=30mm |
Rotation rate | 2800r/min | |
Air consumption | 60L/min | |
Air pressure | 0.5-0.8MPa | |
Cutting scale | Width | max 170mm |
Height | max 300mm | |
Length | 8000mm | |
Angle | 45° 90° 135° | |
Dimonsion | 5800×1250×1700mm | |
Weight | 1800kg | |
Contact me for details window solution
Whatsapp:0086 15726126528
